Avenue Logo HD Application
Creating Sequences
With the Sequence List window, you can create sequences that associate images with audio clips.
These can then be accessed from the Events window.
To Create a Sequence Item
1. From the Main Window, click the SEQ button. The Sequence List window displays.
Adjust the audio levels using the slider controls for Input Channel 1 and Input Channel 2. Above
each channel, the Clip indicator will turn red if the signal is clipping. Selecting the Tie button will tie
both slider controls to each other for simultaneous adjustment. Select Default to restore the default
level settings.
The green Ch1 and Ch2 Out Bus Assign buttons indicate the output assignment for each channel.
You can change the output assignment by selecting either Ch1 or Ch2 for either channel.
Use the Play, Pause and Stop buttons to control the playback of audio files. For Playback Duration,
select None, 1 Second, 5 Seconds, or Whole Clip. If you select the Auto Play check box, the audio clip
will begin playing automatically immediately after you make an adjustment to the level with a slider
control. Select the Auto Repeat check box if you want the audio clip to loop.
When you have finished editing, select Accept.

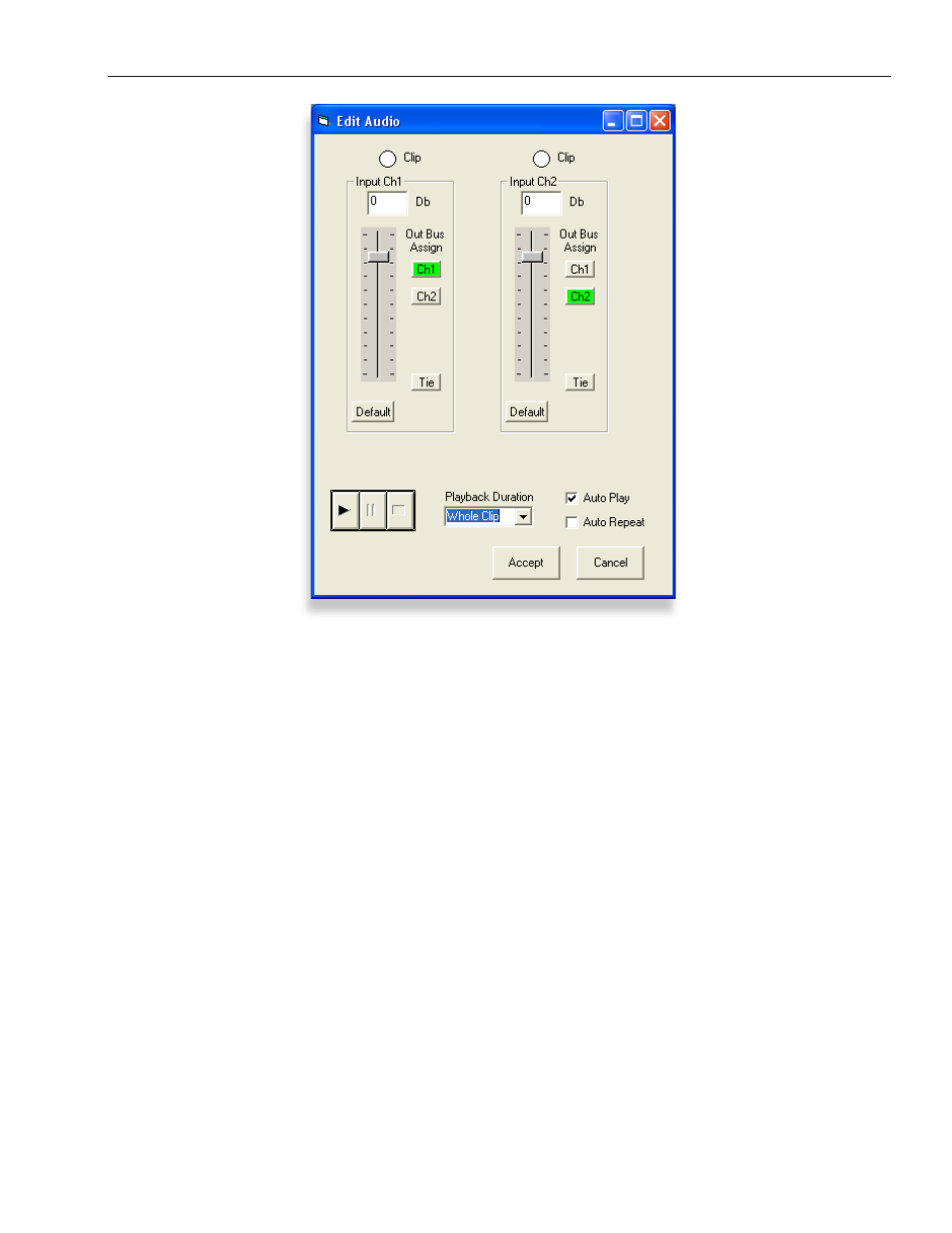

The Edit Audio Window
