CH 2 Installation Method and Cautions

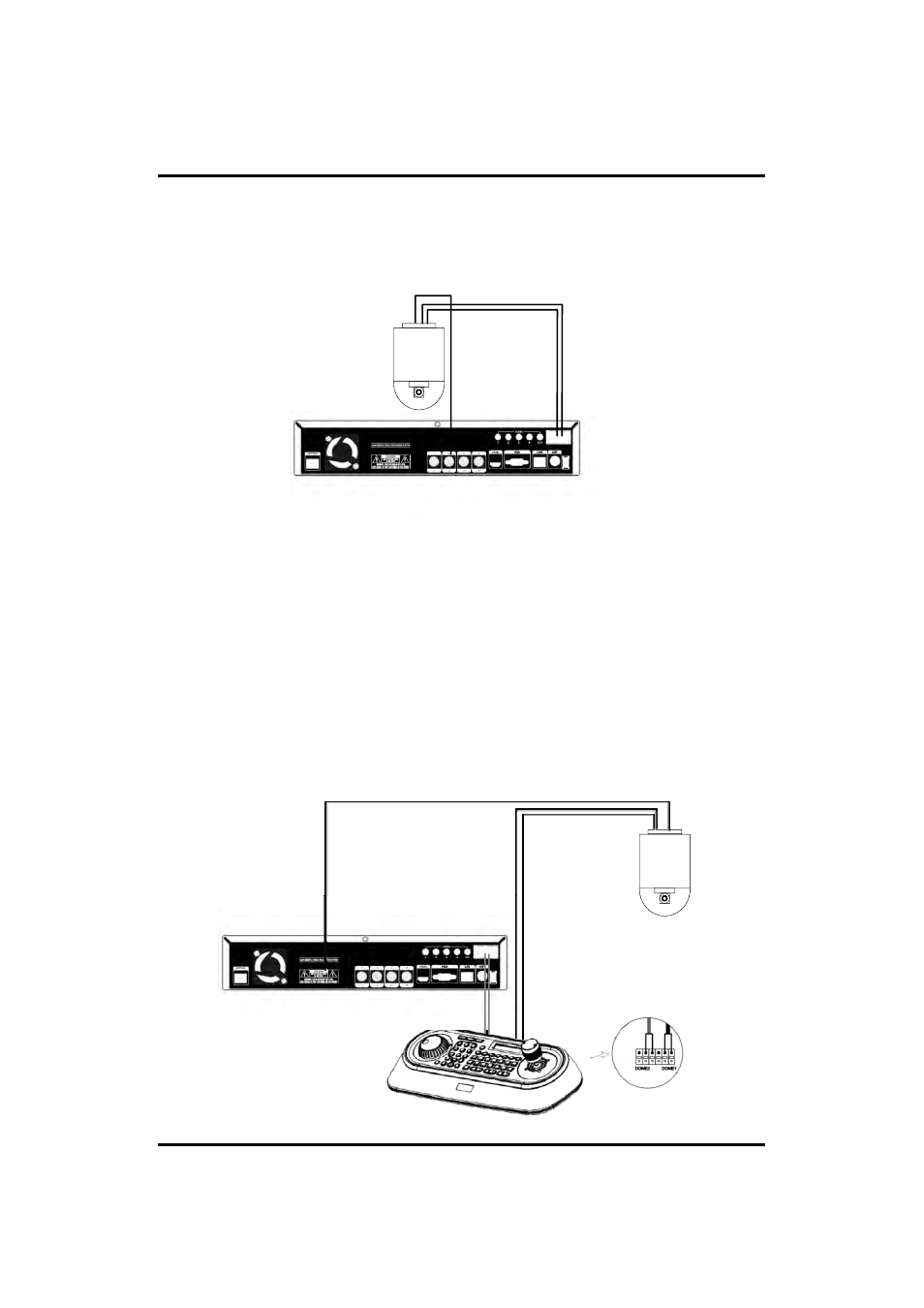

4) Connection Using PTZ camera
In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as
h t f ll i fi shown at following figure.
RS485 CABLE
VIDEO CABLE
SPEED
DOME
5) Installing Hard disk drive
In case of installing the hard disk drive open the upper case and install the hard disk In case of installing the hard disk drive, open the upper case and install the hard disk
drive on the hard bracket. Remember that the main power should be off to install the
hard disk drive. If you have any trouble, please contact the technical support.
6) Installing KBD-2
In case of installing the System Keyboard with Joystick and Jog Shuttle KBD-2,
connect KBD-2 to RS485 of DVR. The cable should be connect DOME2 of KBD-2.
f l h l i Be careful the polarity
VIDEO CABLE
SPEED
DOME
RS485 CABLE
21
