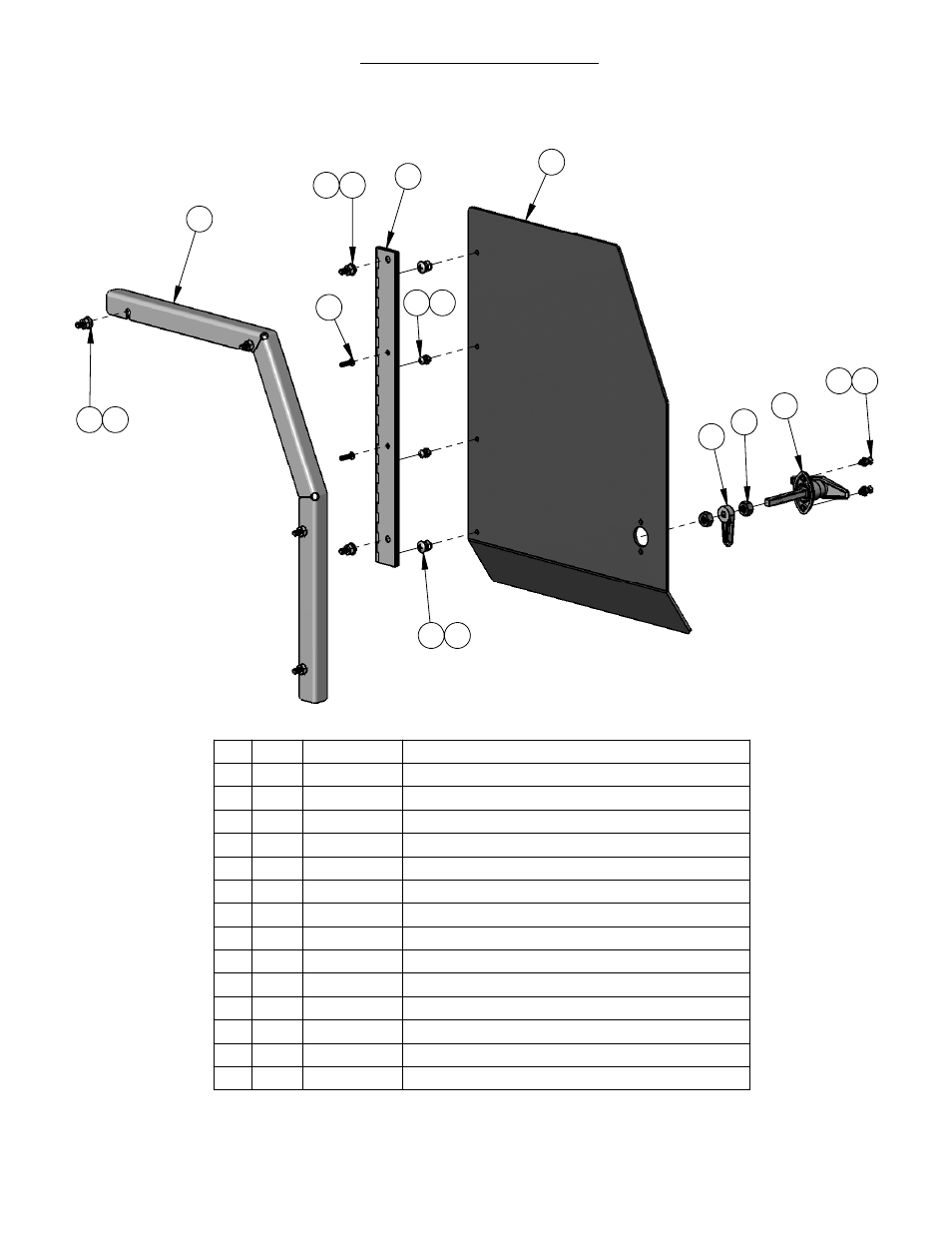

Page 40: Outlet door
LEGEND:
NS=NOT SHOWN
WHEN ORDERING,SPECIFY THE
COLOR WANTED ON PARTS
CONTAINING THE LETTER "P"
1
3 14
3
14
10
6
4 8
11
12
13
2
5
8
7 9
NO. QTY. PART NO. DESCRIPTION
1
1 102023
FULL GUTTER, REAR DOOR
2
2 044042
3/8-24 PLATED NUT
3
6 041050
1/4-20 X 3/4 TRUSS BOLT
4
2 041024
RHMS 10-24 X .5
5
2 041026
10-24 X 3/4 SL-FHMS
6
2 041027
10-24 x 3/4" PHILIPS HEAD MS
7
2 041078
1/4-20 X 1/2 PH TRUSS SCREW
8
4 044019
10-24 NYLOC NUT
9
2 044023
1/4-20 NYLOCK NUT
10
1 100771
HINGE 1260 SS 2.50"X36" STAKED
11
1 100838P REAR DOOR
12
1 650131
DOOR LOCK ASSEMBLY
13
1 650132
DOOR LATCH CAM
14
6 044021
1/4-20 KEPS NUT
MLEX V SERIES
PG 22
OUTLET DOOR
3/19/2010
