Allmand Brothers MLEX20-30KW V - Manual (Page 18)

26
10
19
19
15
27
1
15
13 18 18 7
19 19 10
22
23
24
12 17 17 8
20
16 10
21
14 11
25
6 5 3
NO. QTY. PART NO. DESCRIPTION
1 1 101847P PLATFORM STEP
2 1 022016 #6 CUSH CLAMP 1/4 HOLE
3 2 044023 1/4-20 NYLOCK NUT
4 4 047009 1/4 SAE SS FW
5 2 046010 1/4-20 X 3/4 HEX BOLT SS
6 1 310212 #10 CUSHION CLAMP
7 4 043085 1/2 SPLIT LOCK WASHER
8 2 044043 7/16-14 NYLOCK NUT
9 4 044045 1/2-13 PL HEX HUT
10 8 044061 5/8-11 LOCK NUT
11 2 044062 1/2-13 LOCK NUT
12 2 046160 7/16-14 X 1 1/2 HEX BOLT
13 4 046184 1/2-13 X 1 1/2 HEX BOLT GRD 8
14 2 046220 1/2-13 X 4" HEX BOLT
15 6 046247 5/8-11 X 2 HEX BOLT GRD 8 PLT
16 2 046250 5/8-11 X 4 1/2 HEX BOLT
17 4 047015 3/8 FLAT WASHER
18 8 047028 1/2 FLAT WASHER HARDENED PLT
19 12 047031 5/8 FLAT WASHER HARDENED PLT
20 2 049040 SAFETY CHAIN
21 1 100794 2" BALL SAE 5000 LB
22 1 100809P TONGUE
23 1 330013 PIN, LOCK, TUBE MOUNT
24 1 680879 TOP CRANK JACK, TUBE MOUNT
25 1 712540-20 CASTING, PINTLE
26 1 100814P 5K TORSION BRAKE AXLE
27 2 830006A 15" WHEEL & TIRE
MLEX V SERIES
PG 6

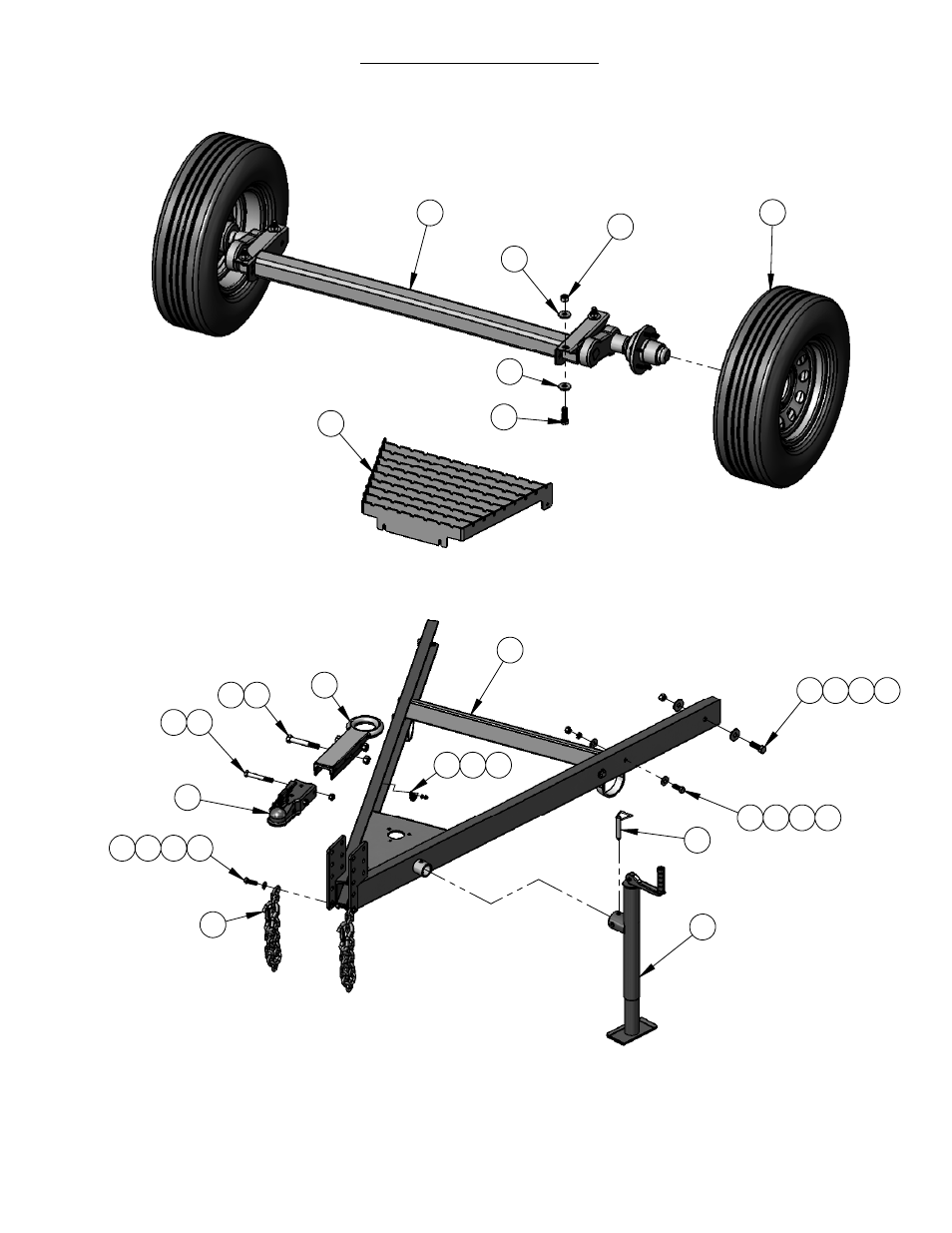

TONGUE & AXLE
3/15/2010
