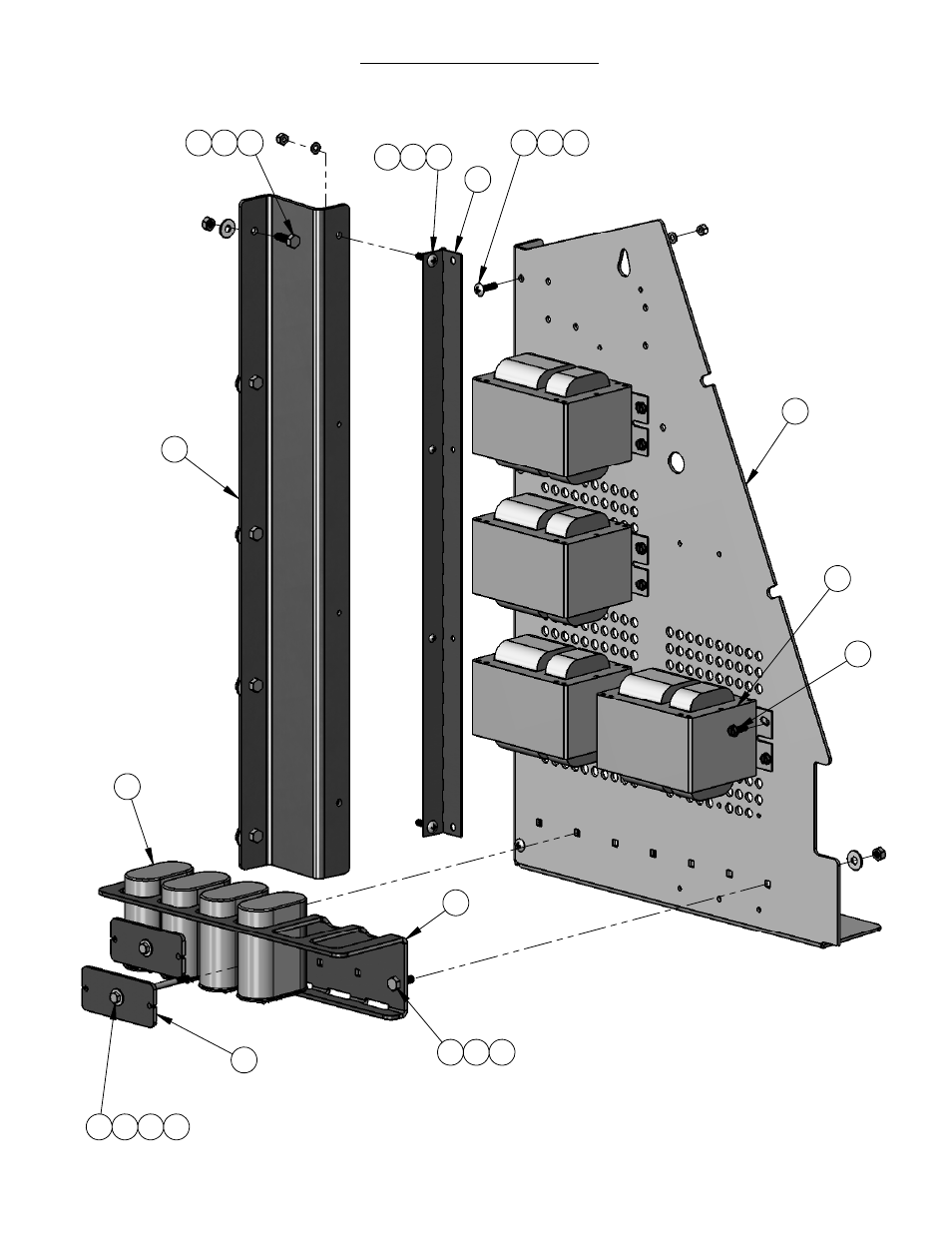

Page 30: Ballast panel

background image

3

10

5

8

11

6

17

14

3 10 5

15

12

2

8 11 6

16

13

18

7 9 11 6

NO. QTY. PART NO. DESCRIPTION

1

2 041024

RHMS 10-24 X .5

2

16 041070

1/4-20 X 3/4 SMSHH TP F

3

6 041080

1/4-20 X 1" TRUSS SCREW

4

2 044018

10-24 NYLOC NUT

5

8 044023

1/4-20 NYLOCK NUT

6

7 044033

5/16 NYLOCK NUT

7

2 046042

1/4-20 X 4 1/2 HEX BOLT

8

7 046050

BOLT CS 5/16-18 X 1 HEX GR5 PL

9

4 047005

1/4 FLAT WASHER

10

6 047009

1/4 SAE SS FW

11

7 047010

5/16 FLAT WASHER

12

4 100328

BALLAST 1250W 60 Hz W/28uF CAPACITOR(HD)

13

4 100329

CAPACITOR 28 uF (HD 1250W)

14

1 100769

HINGE

15

1 100815

PANEL, BALLAST, LEFT, ML EX

16

1 100816P CAPACITOR RACK

17

1 100817

HINGE MOUNT

18

2 100818

CAPACITOR CLAMP

MLEX V SERIES

PG 12

BALLAST PANEL

3/17/2010
