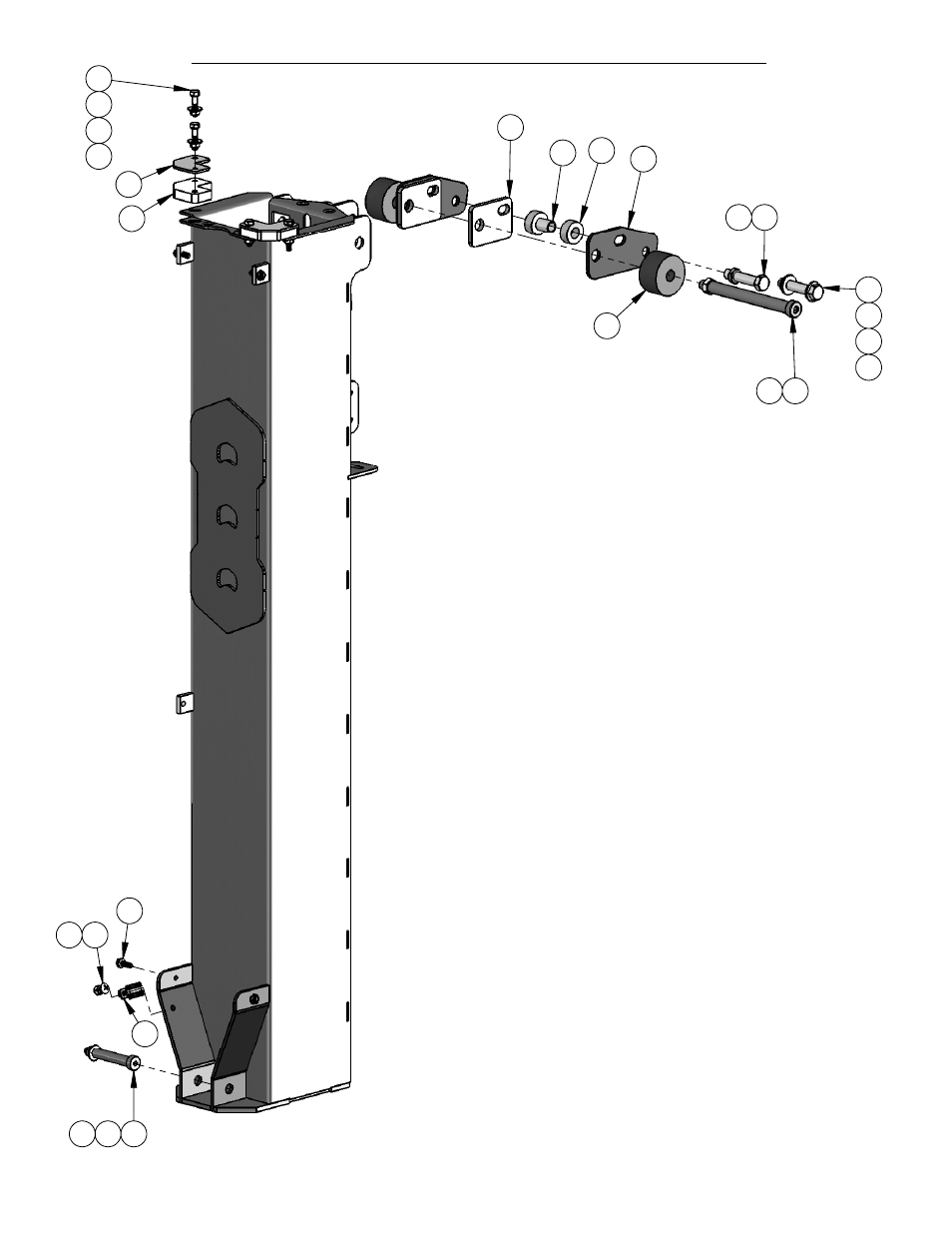

A-6a, Drawing view1, Mlex v series – Allmand Brothers MLEX20-30KW V User Manual
Page 12
14
15
16
17
12
13
11
5
6
9
7
10
11
24
20
19
23
2
3
4
18
22
18
21
21
22
NO. QTY. PART NO. DESCRIPTION
1
1 101034P SECTION 1
2
2 100203
ROLLER
3
1 100202
5/8 X 6 SS SH BOLT
4
1 044096
1/2-20 HEX NUT PL
5
2 100088
CORNER FRICTION BLOCK
6
2 100089P CORNER BLOCK COVER
7
4 043060
3/8 INT STAR WASHER
8
1 046025
1/4-20 X 1 1/2 HEX BOLT
9
3 046020
1/4-20 X 1 1/4 GR5 HEX BOLT
10
4 047005
1/4 FLAT WASHER
11
5 044023
1/4-20 NYLOCK NUT
12
1 310212
#10 CUSHION CLAMP
13
1 041050
1/4-20 X 3/4 TRUSS BOLT
14
1 101379
1/2 X 2.75 SH BOLT
15
1 047010
5/16 FLAT WASHER
16
1 044038
3/8-16 NYLOCK NUT PL
17
4 041070
1/4-20 X 3/4 SMSHH TP F
18
2 046205
1/2-13 X 2 1/2 HEX BOLT GR5 PL
19
1 102273
LONG SPACER
20
2 102271
PLASTIC SPACER
21
2 047025
1/2" FLAT WASHER
22
2 100643
1/2-13 NYLOCK
23
2 102270P CABLE BRACKET
24
2 102269P SPACER BRACKET
MLEX V SERIES
PG 4I
SECTION 1
2/1/2010
