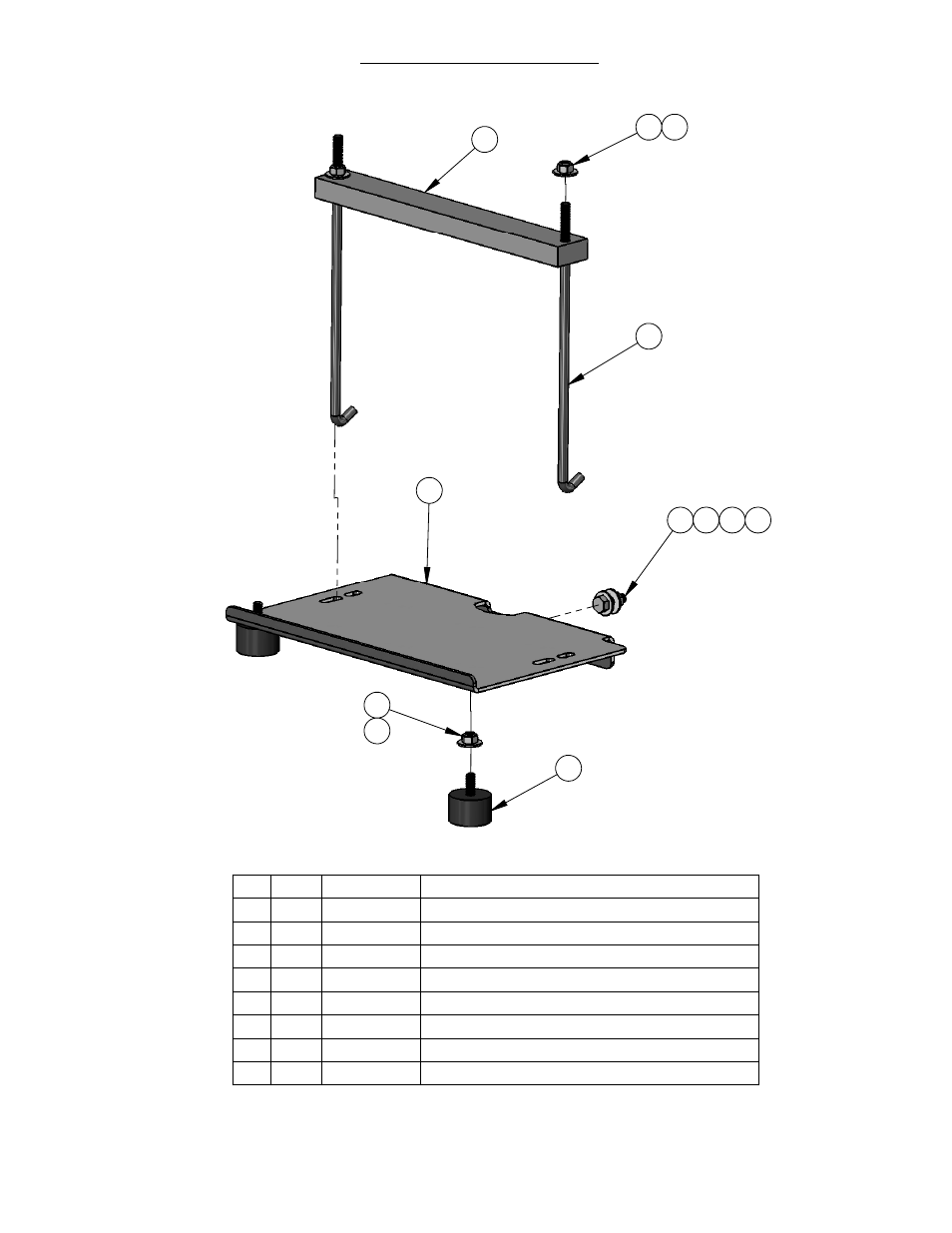

Page 24: Battery hold down

background image

LEGEND:

NS=NOT SHOWN

WHEN ORDERING,SPECIFY THE

COLOR WANTED ON PARTS

CONTAINING THE LETTER "P"

1 2

8

6

4 2 2 3

5

7

1
2

NO. QTY. PART NO. DESCRIPTION

1

4 044033

5/16 NYLOCK NUT

2

6 047010

5/16 FLAT WASHER

3

1 044031

5/16 -18 KEPTS NUT

4

1 046050

BOLT CS 5/16-18 X 1 HEX GR5 PL

5

1 101253P TRAY

6

2 433507

BOLT J

7

2 713578

RUBBER BUMPER

8

1 800243

BATTERY HOLD DOWN

MLEX V SERIES

PG 8E

BATTERY HOLD DOWN

3/16/2010
