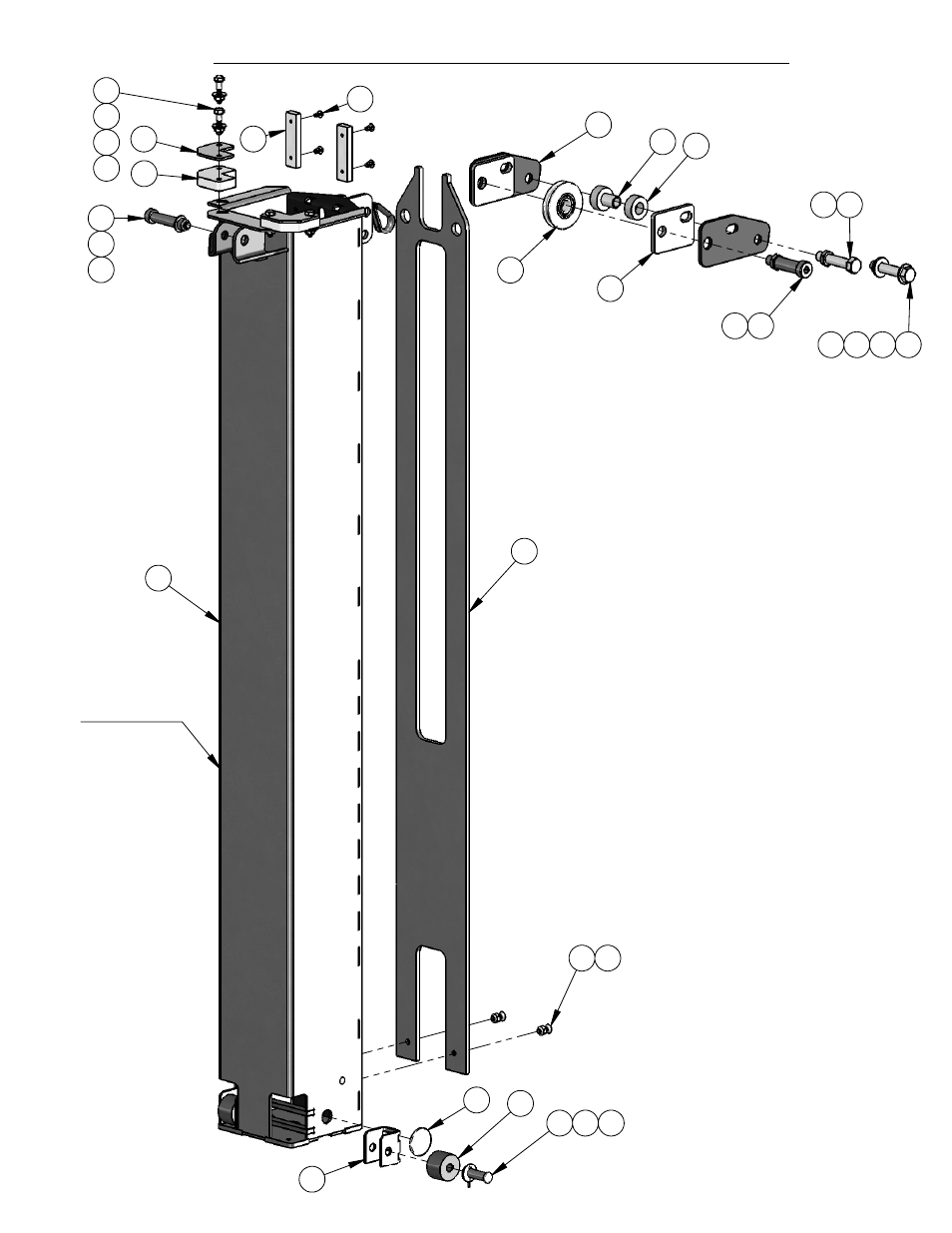

A-5a, Drawing view1, Mlex v series – Allmand Brothers MLEX20-30KW V User Manual
Page 10
1
SECTION 2
3
4 5
2
9
10 11 12
8
14
16
15
17
18
20
19
21
5
6
7
23
13
25 26
30
27
29
28
29
28
24
24
29
NO. QTY. PART NO. DESCRIPTION
1
1 101035P
SECTION 2
2
2 101626
FRICTION PLUG
3
1 100204P
SEC 2 ROLLER PLATE
4
2 041047
1/4-20 X 3/4 PH CSK
5
6 044023
1/4-20 NYLOCK NUT
6
2 100062
3/8 UHMW SPACER
7
4 041023
#10 X 3/8 PLS
8
2 101374P
BEARING CAGE
9
2 101380
COMPOSITE ROLLER
10
2 101377
CLEVIS PIN 7/16 X 1 1/2
11
2 047015
3/8 FLAT WASHER
12
2 045044
COTTER PIN
13
1 100160
2 1/2 PULLEY
14
1 101378
1/2 X 2 SH BOLT
15
1 044038
3/8-16 NYLOCK NUT PL
16
1 047010
5/16 FLAT WASHER
17
2 100088
CORNER FRICTION BLOCK
18
2 100089P
CORNER BLOCK COVER
19
4 043060
3/8 INT STAR WASHER
20
4 046020
1/4-20 X 1 1/4 GR5 HEX BOLT
21
4 047005
1/4 FLAT WASHER
22
1 045040
1/4 CABLE THIMBLE
23
2 102270P
CABLE BRACKET
24
2 047025
1/2" FLAT WASHER
25
1 102273
LONG SPACER
26
2 102271
PLASTIC SPACER
27
1 102365
5/8 X 1 SHOULDER BOLT
28
2 046205
1/2-13 X 2 1/2 HEX BOLT GR5 PL
29
3 100643
1/2-13 NYLOCK
30
2 102269P
SPACER BRACKET
MLEX V SERIES
PG 4G
SECTION 2
2/2/2010
