AIRLESSCO LP500 - Manual (Page 29)

Parts
3A1185H 29

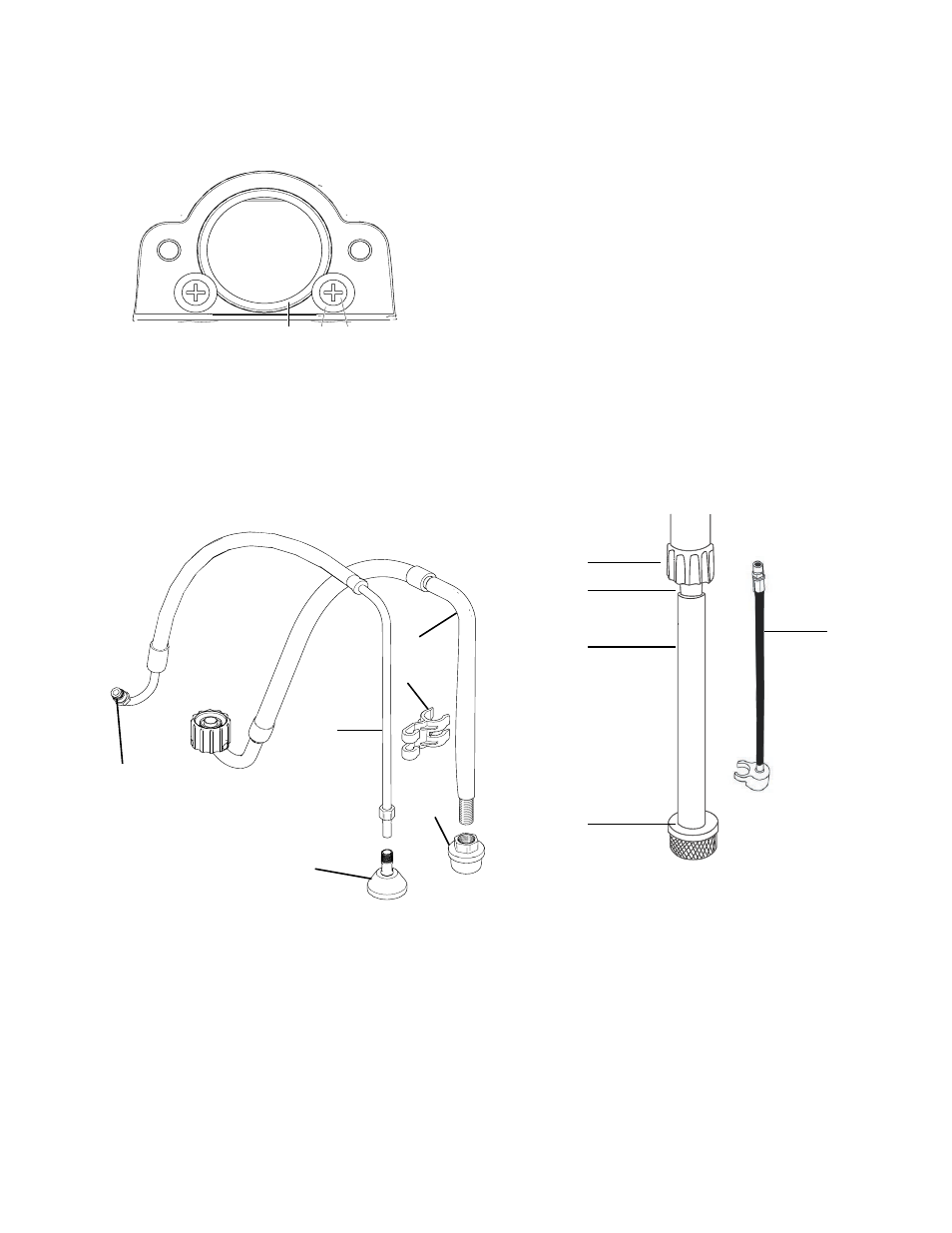

Suction Assemblies
1 2 3
Gearbox Sleeve Bearing Replacement
ti16059a
NOTE: When replacing item (1), cover outside of
sleeve with 6 drops of Loctite 246 prior to inserting into
cover assembly.
Ref. Part Description Qty
1 331061 SLEEVE BEARING 1
2 331103 WASHER 2
3 331197 SCREW 2
ti16062a
Lo-Boy and Carry Chassis (865717)
Ref. Part Description Qty
1 331290 SUCTION HOSE ASSEMBLY 1
2 187651 INLET STRAINER 1
4* DRAIN HOSE 1
5* 241920 THREADED DEFLECTOR 1
6* 867759 MALE CONNECTOR 1
7* 276888 DRAIN LINE CLIP 1
* Sold in Kit 865721
Hi-Boy Chassis (331284)
Ref. Part Description Qty
1 301348 BYPASS HOSE ASSEMBLY 1
2 331034 SUCTION NUT 1
3 331292 SUCTION SEAT ASSEMBLY 1
4 331400 INLET TUBE 1
5 187190 INLET STRAINER 1
ti16061a
1
2
3
4
5
1
2
7
4
5
6
