Packing replacement – AIRLESSCO LP500 User Manual
Page 28
Parts
28
3A1185H

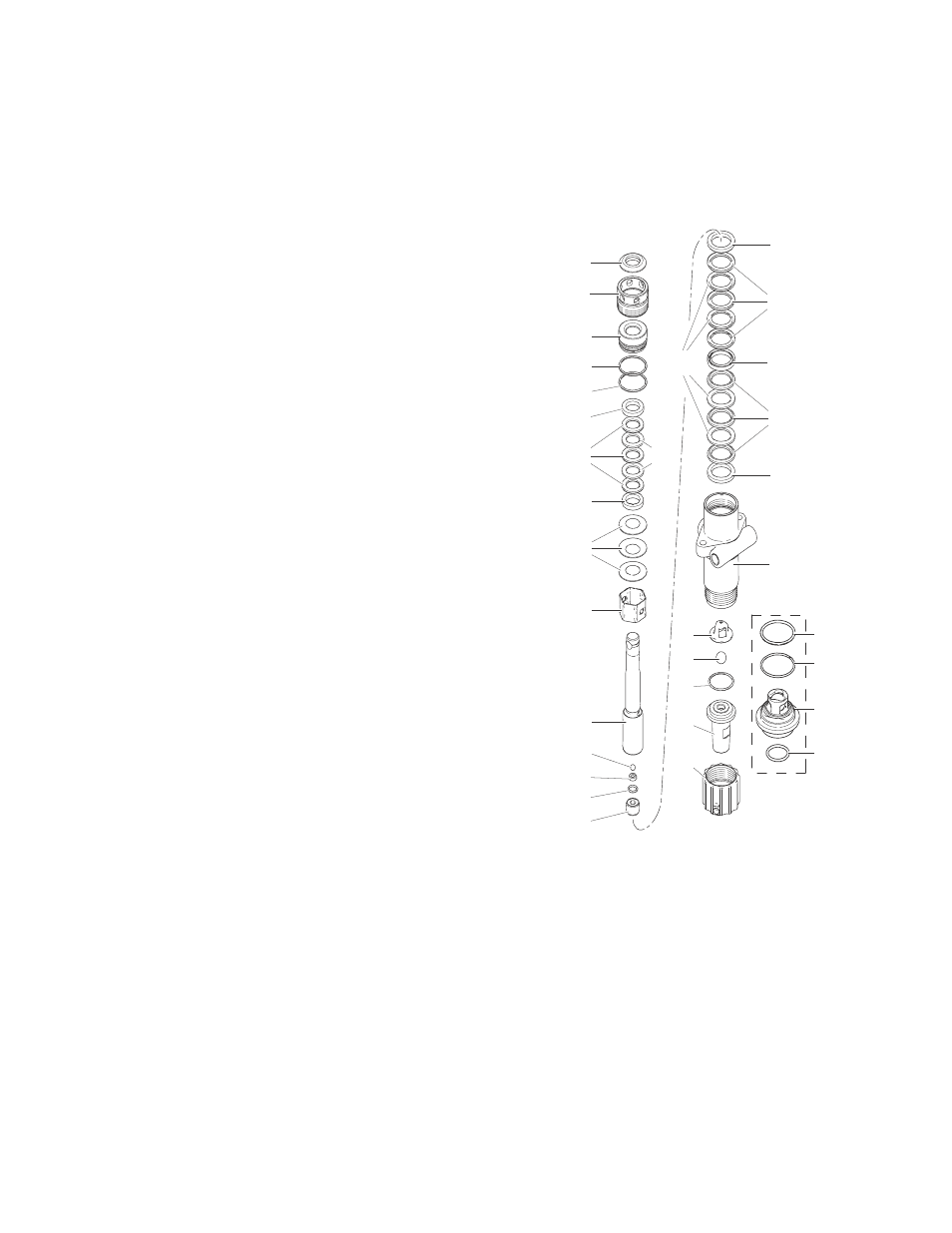

Packing Replacement
Ref.
Part
Description
Qty
1*
331014 MALE GLAND
2
2*
331016 PACKING POLYETHYLENE
6
3*
331308 FEMALE ADAPTOR
1
4
331011 FLUID PUMP BODY
1
5
331029 SUCTION BALL GUIDE
1
6*
331030 SUCTION BALL
1
7*
108526 O-RING
1
8
331292 SUCTION SEAT (HI-BOY)
1
331051 SUCTION SEAT (LO-BOY)
1
9
331034 SUCTION NUT
1
10+
331314 OUTLET SEAT RETAINER
1
11+
331026 OUTLET SEAT
1
12+*
111457 O-RING
1
13+*
331027 OUTLET BALL
1
14+
PISTON
1
15*
331018 SPACER
1
16*
331025 WASHER, SPRING
3
17*
331022 MALE GLAND
1
18*
331023 PACKING POLYETHYLENE
3
19*
331021 FEMALE GLAND
1
20
331019 PACKING HOLDER
1
21
331037 PACKING NUT
1
22*
331307 PACKING LEATHER
2
23*
331306 PACKING LEATHER
4
24*
107313 WHITE O-RING
1
25*
108771 BLACK O-RING
1
26
180656 PLUG, BUTTON
1
157**
SEAT,SUCTION SEAT
1
158**‡
PACKING, O-RING
1
159**‡
PACKING, O-RING
1
160**‡
RING, BACKUP
1
*
331210 PACKING KIT
+
331093 PISTON ASSEMBLY
**
Included in 331051
‡
Included in O-Ring Kit 16W484
1
2
3
1
4
22
222
159
160
157
158
9
8
7
6
5
23
23
23
23
14
15
13
11
12
10
16
16
16
17
18
18
18
22
22
19
24
25
20
21
26
ti16056b
