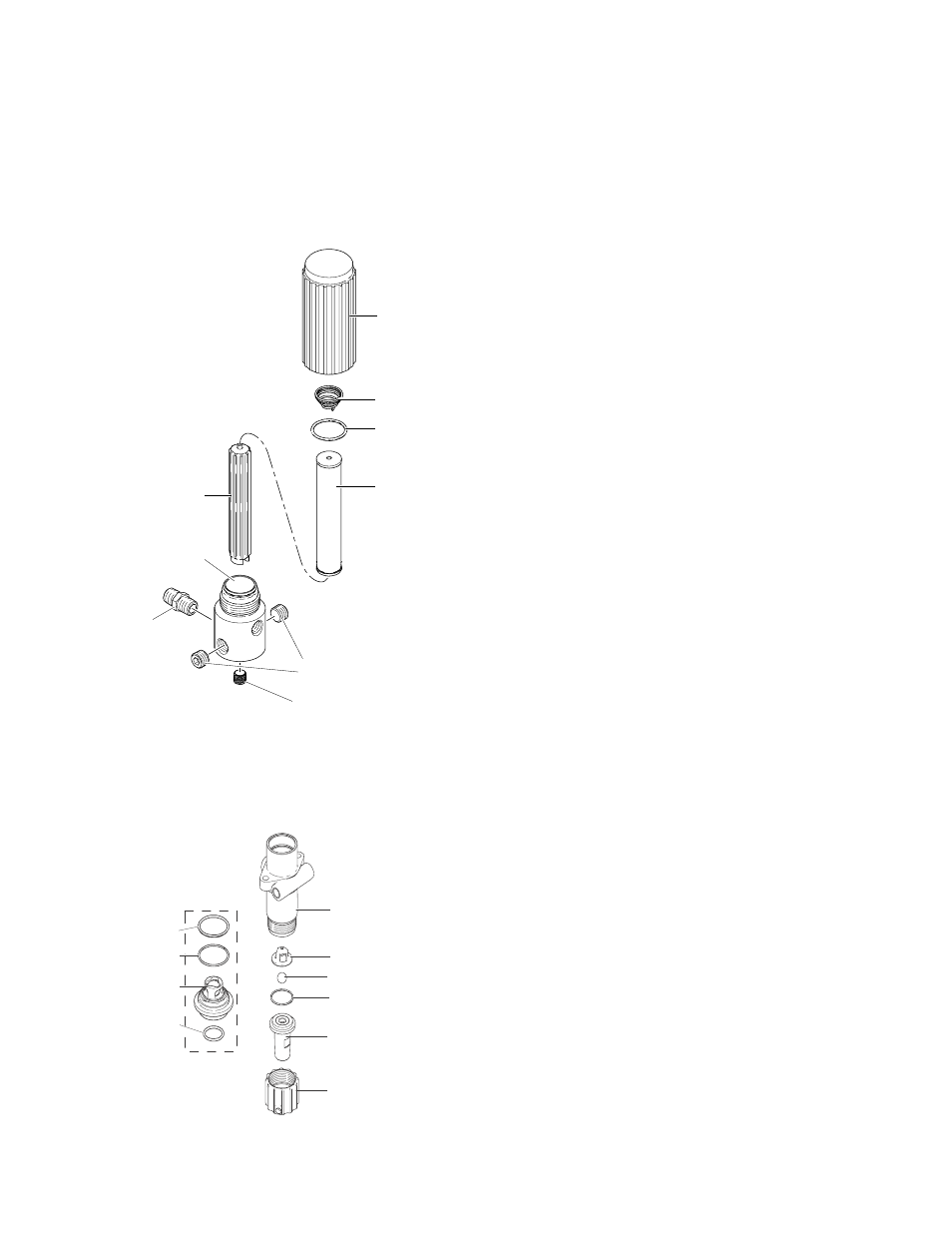

Manifold Filter (866480)
Mustang 8100, LP600/700 HiBoy, LP600 LoBoy
Inlet Valve
1
2
3
4
5
9
6
7
10
7
ti16052a
Ref. Part Description Qty
1 867145 COVER 1
2 301356 SPRING 1
3 867377 O-RING 1
4 867214 FILTER 60 MESH 1
5 867647 SUPPORT 1
6 867077 BASE 1
7 867420 PLUG 2
9 867309 NIPPLE 3/8”M x 1/4”M 1
10 557391 PLUG 1/4” 1
8
9
10
11
12
13
159
160
157
158
ti16115b
Ref. Part Description Qty
8 331011 FLUID PUMP BODY 1
9 331029 SUCTION BALL GUIDE 1
10 331030 SUCTION BALL 1
11 108526 O-RING 1
12 331292 SUCTION SEAT (HI-BOY) 1
13 331034 SUCTION NUT 1
157‡ SUCTION SEAT ASSY
(LO-BOY/STAND) 1
158*‡ O-RING 1
159*‡ O-RING 1
160*‡ RING,BACKUP 1
* Included in O-Ring Kit 16W484
‡ Included in Kit 331051.
