AIRLESSCO LP500 - Manual (Page 24)

Parts
24 3A1185H

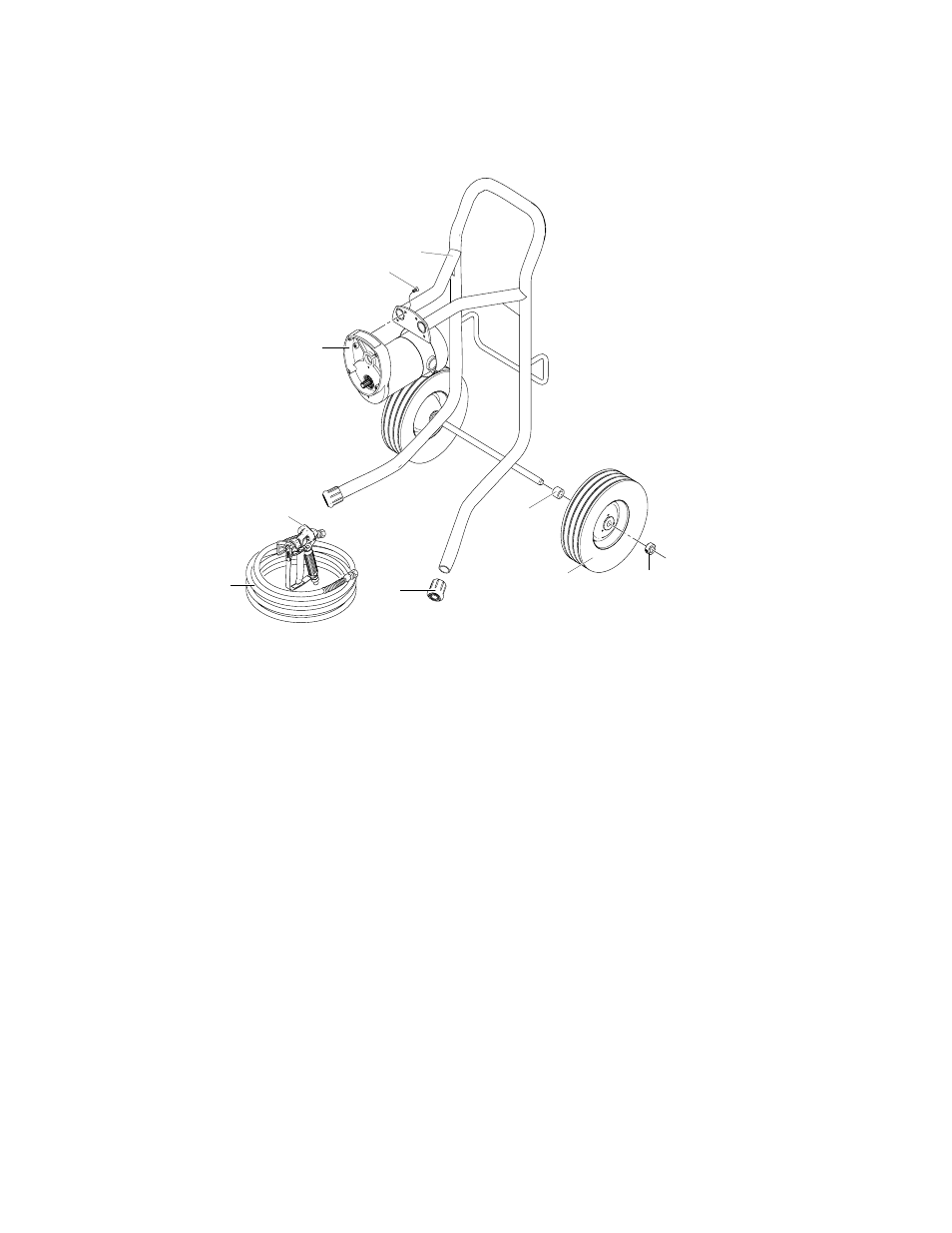

Hi-Boy Parts Diagram
1
2
3
4
5 6
7
77
78
ti17483a
Ref.Part Description Qty
1 MOTOR
331490 .5HP, 110V: LP500 HIBOY/STAND,
LP400 STAND 1
331491 1HP, 110V: LP600/700 HIBOY,
120V: LP500/600 & MUSTANG
5100/8100 1
331492 .5HP, 230V: LP500 LOBOY, 240V:
LP500 HIBOY, 230/240V:
LP400/500 STAND 1
331493 1HP, 230V:LP600 LOBOY,
230/240V: LP600/700 HIBOY 1
2 331273 FRAME,LP540 HD 1
3 16F551 FASTENER,THREAD,EXTERNAL 4
4 866356 SPACER,SPACER .75 LG PVC 2
5 867736 WHEEL,10” X 3.5” 2
6 143029 COLLAR,SCREW,SET (SPECIAL
ID) 2
7 331048 BOOT,RUBBER BOOT 2
77 HOSE 1/4X50’
HSE1450 (120V/230V) 1
865674 (230/240V & 110V) 1
78 GUN
289316 500,2 FINGER,ASM, LP500
(120V/230V) 1
289283 MODEL MUSTANG 5100 1
24E514 SPRAY, 009 (230/240V & 110V) 1
16F574 LABEL, FRONT, LP500 (not shown)
16F575 LABEL, FRONT, LP600 (not shown)
16F576 LABEL, RIGHT, LP600 (not shown)
16F577 LABEL, LEFT, LP600 (not shown)
16F735 LABEL, FRONT, MUSTANG 5100
(not shown)
16F737 LABEL, RIGHT, MUSTANG 8100
(not shown)
16F736 LABEL, FRONT, MUSTANG 8100
(not shown)
16F738 LABEL, LEFT, MUSTANG 8100
(not shown)
16K914 LABEL, RIGHT, LP500 (not shown)
16K915 LABEL, LEFT, LP500 (not shown)
16H949 LABEL, FRONT, LP700 (not shown)
16H950 LABEL, RIGHT, LP700 (not shown)
16H951 LABEL, LEFT, LP700 (not shown)
Ref.Part Description Qty
