AIRLESSCO LP500 - Manual (Page 23)

Parts
3A1185H 23

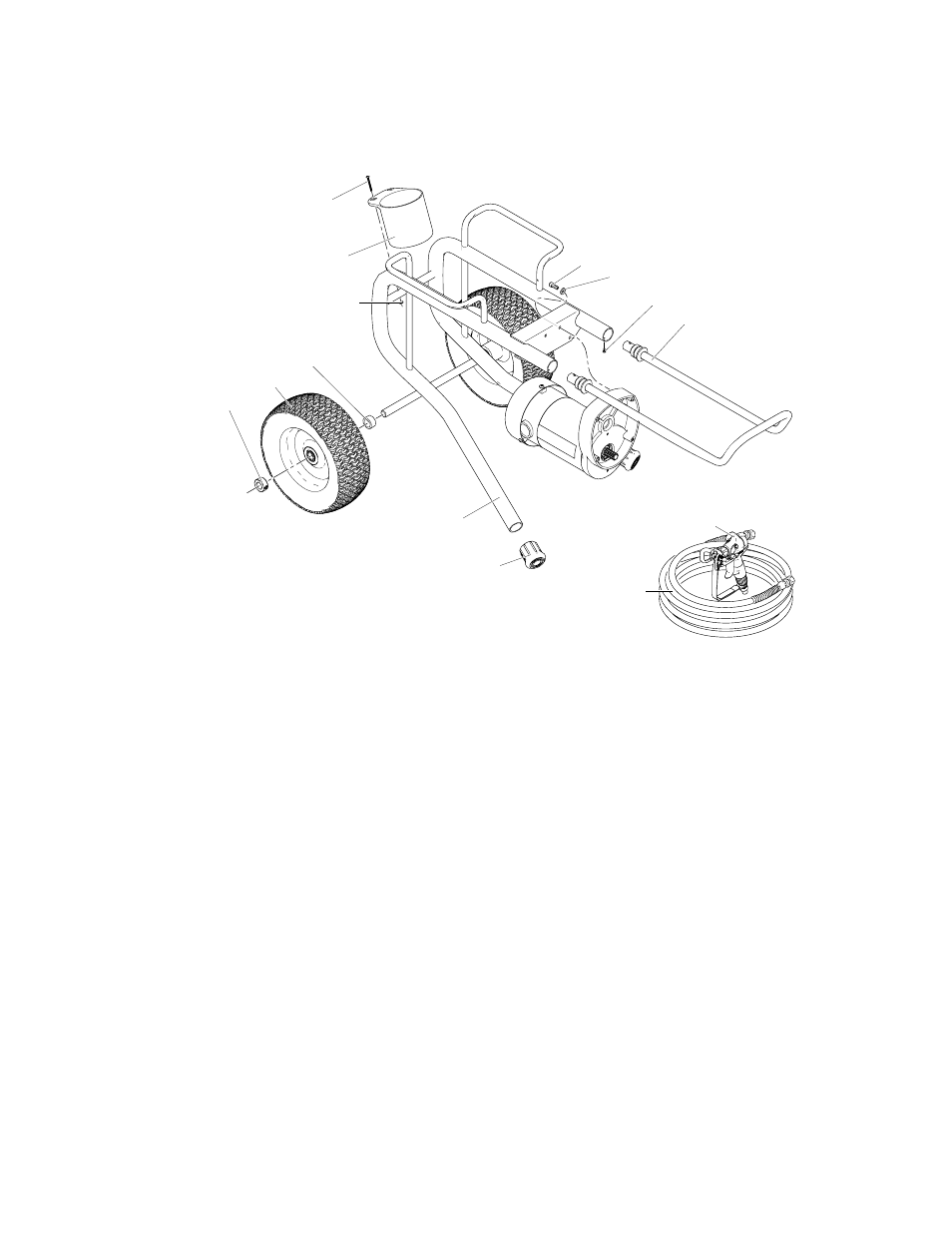

LoBoy Frame Parts Diagram
111
100
184
110
189
105
101
102
199
108
104
109
187
103
ti17480a
Ref. Part Description Qty
100 867488 SCREW #6X.25 SLFTAP PH HD 2
101 867551 SCREW 6-32X1.25 PH PN HD
(120V/230V) 2
102 867329 NUT 6-32 X .109 TOP LOCK 2
103 GUN
289316 500,2 FINGER,ASM, (120V) 1
24E514 SPRAY, 009 (230/240V & 110V)
104 143029 COLLAR,SCREW,SET (SPECIAL
ID) 2
105 15B870 CUP,SUCTION/DRAIN 1
108 305039 SPACER,3/4 ID .50 LG PVC 2
109 331048 RUBBER BOOT 2
110 331103 WASHER .562 .250 .060 .ST 4
111 331171 FRAME WELD- LP-LB 1
184 866476 HANDLE,LB,SUBASSEMBLY
(Includes 184a, 184b, 184c, 184d) 1
184a 331174 HANDLE 1
184b 331222 PIN 2
184c 331175 SPACER 2
184d 331176 BUSHING 2
187 HOSE 1/4” X 50’
HSE1450 (120V) 1
865674 (230/240V & 110V) 1
189 121112 SCREW,CAP, SOCKET HEAD 4
199 867736 WHEEL-10” OD X3.5’W 150LB 2
16F574 LABEL, LP500 FRONT (not shown) 1
16F575 LABEL, LP600 FRONT (not shown) 1
16F576 LABEL, RIGHT, LP600 (not shown) 1
16F577 LABEL, LEFT, LP600 (not shown)
16K914 LABEL, RIGHT, LP500 (not shown)
16K915 LABEL, LEFT, LP500 (not shown)
Ref. Part Description Qty
