Switch 4 (Serial speed and format)
Automatic detection of serial
speed and format
300 bit/s
600 bit/s
1 200 bit/s
2 400 bit/s
Related
AT-commands

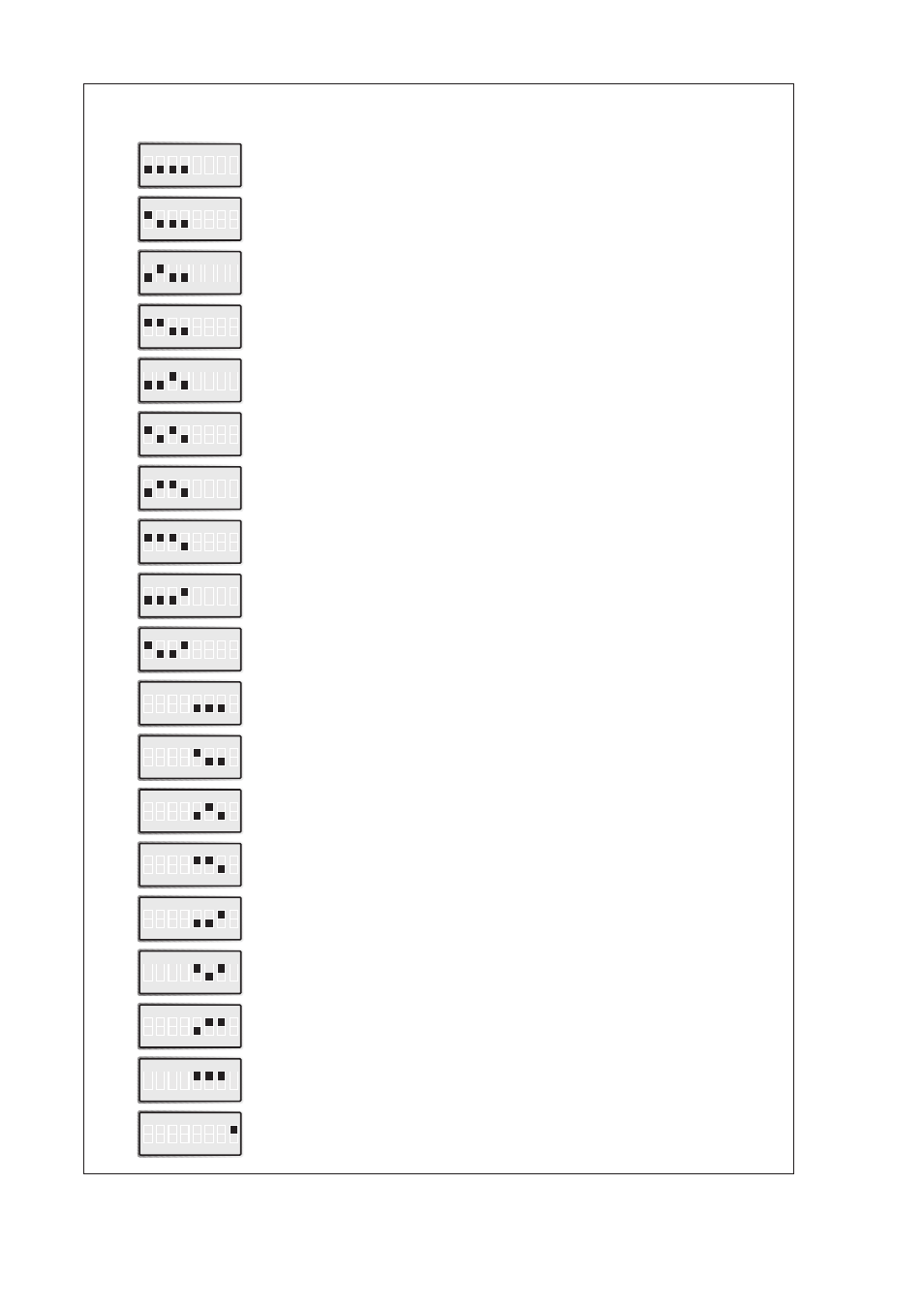

ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
4 800 bit/s
ON
1 2 3 4 5 6 7 8
9 600 bit/s
ON
1 2 3 4 5 6 7 8
19 200 bit/s
ON
1 2 3 4 5 6 7 8
57 600 bit/s
ON
1 2 3 4 5 6 7 8
38 400 bit/s
ON
1 2 3 4 5 6 7 8
7 bits no parity, [7N]
ON
1 2 3 4 5 6 7 8
7 bits even parity, [7E]
ON
1 2 3 4 5 6 7 8
7 bits odd parity, [7O]
ON
1 2 3 4 5 6 7 8
8 bits no parity, [8N]
ON
1 2 3 4 5 6 7 8
8 bits even parity, [8E]
ON
1 2 3 4 5 6 7 8
8 bits odd parity, [8O]
ON
1 2 3 4 5 6 7 8
(AT\N1)
Direct mode. [8E] or [8O]
[8O] in command mode
ON
1 2 3 4 5 6 7 8
(AT\N1)
Direct mode. [7E] or [7O]
[8N] in command mode
ON
1 2 3 4 5 6 7 8
2 stop bits
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
