Select a task or operation function by navigating through the main menu (multicolored LEDs) and the sub-

menus (yellow and red LEDs) using the push-button as described below:
1 Enter the m 1 ain menu and cycle through it by

holding the push-button down.

2 Release the push-button once the cycle reaches

the desired function.

3 Press the push-button again to select the func-

tion. Once selected, the function will either

start running or the first submenu (yellow

LEDs) will start.

4 Hold the push-button to cycle through the first

submenu.

5 Release the push-button once the desired sub-

menu selection is displayed.

6 Press the push-button again to select the func-

tion. Once selected, the function will either

start running or the second submenu (red

LEDs) will start.

7 Hold the push-button to cycle through the

second submenu.

8 Release the push-button once the desired sub-

menu selection is displayed.

9 Press the push-button again to select the func-

tion. The function will now run.

3

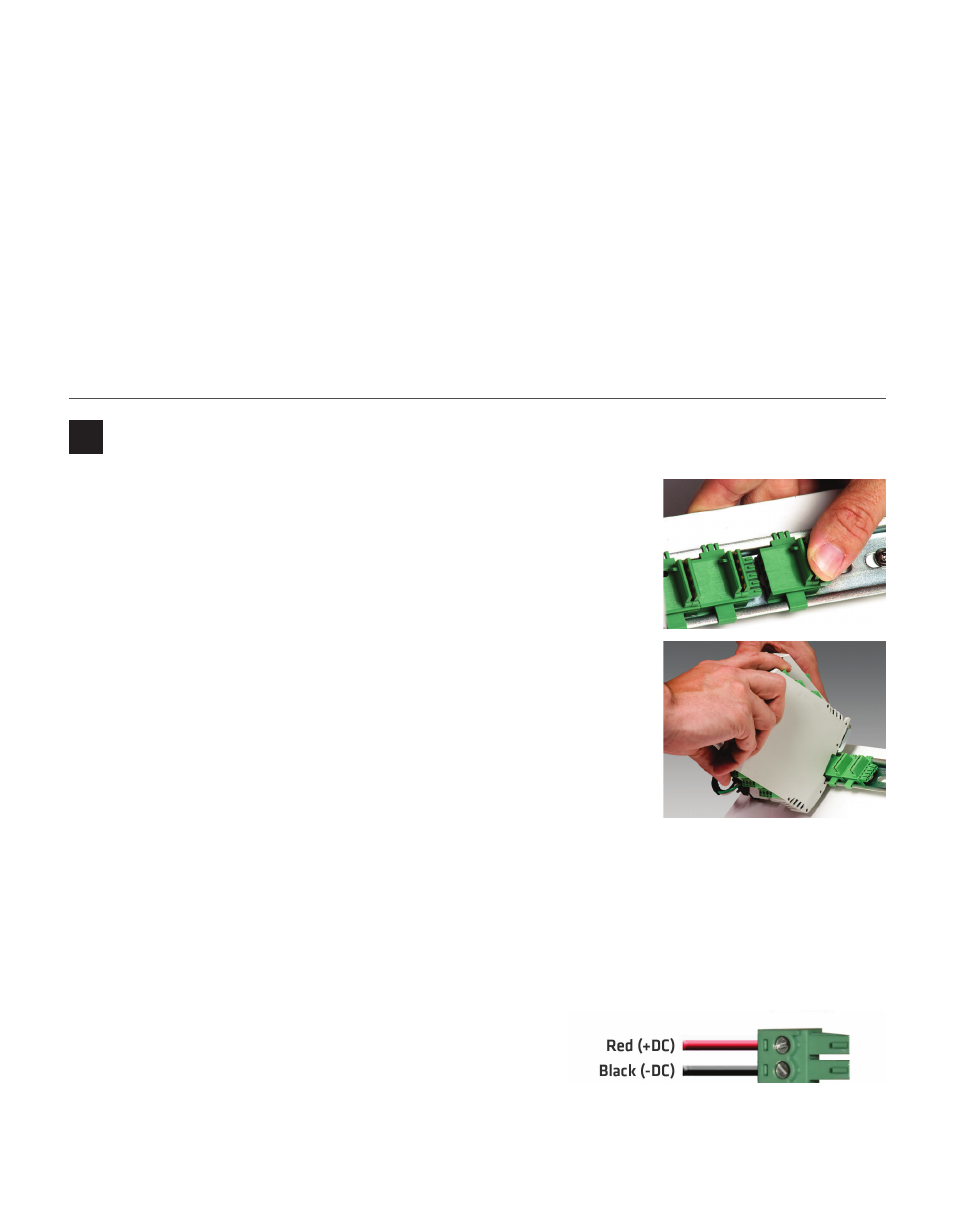

Mount and wire power to the client devices

Select a mounting location for each client (you can have between 1 and 8) in

a cabinet or other installation near the digital output device to be moni-

tored.

The Click 511 mounts over a T-bus for power and communication. Do the

following for each device being used in your installation:
1 If the Click 511 was shipped with the T-bus connector attached, remove

the connector from the module.

2 Snap the connector onto the DIN rail by positioning it over the rail

with the male connector pointing to the right. Hook one arm over the

edge of the DIN rail and press down on the other arm until it snaps into

place.

3 Connect the T-bus connector to the rest of the T-bus by sliding them

together until you hear them snap into place.

4 Mount the Click 511 onto the DIN rail: position it properly over the T-

bus connector, hook the lip over the lower edge of the DIN rail, and use

a rocking motion to snap the module into place.

If you are using a Click 200 surge protector with the Click 511, power is provided to each Click 511 through

the T-bus (see the Click 200 Quick-Reference Guide). If you don’t have a Click 200 surge protector, use the

following steps to wire power into each Click 511:
1 Plug a T-bus 5-screw terminal block into the first T-bus

connector.

2 Wire DC power (10–30 V) from the power supply into the

first screw terminal on the 5-screw terminal block; wire

-DC into the second screw terminal.
