3 relay output expansion board wiring (cont’d), Component & system wiring 39, Component wiring diagram – WattMaster VAV User Manual

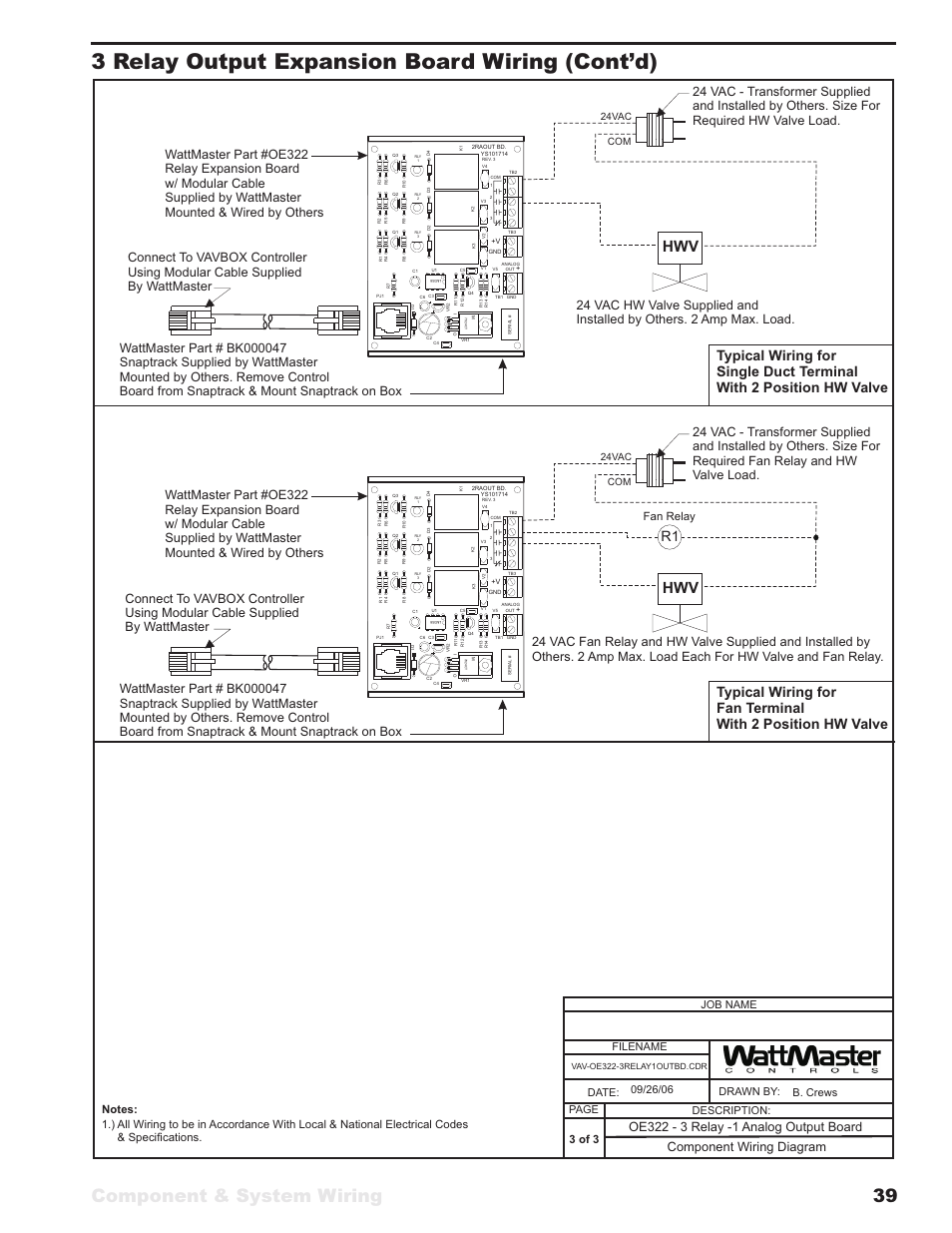

Page 39: Filename date: b. crews description: page drawn by, Job name, 3 of 3, Fan relay, 24vac, 24vac com com

3 relay output expansion board wiring (cont’d), Component & system wiring 39, Component wiring diagram | Filename date: b. crews description: page drawn by, Job name, 3 of 3, Fan relay, 24vac, 24vac com com | WattMaster VAV User Manual | Page 39 / 64 3 relay output expansion board wiring (cont’d), Component & system wiring 39, Component wiring diagram | Filename date: b. crews description: page drawn by, Job name, 3 of 3, Fan relay, 24vac, 24vac com com | WattMaster VAV User Manual | Page 39 / 64
