Setting Up the Document Camera
Connecting a Mouse to the Document
Camera
The included mouse functions as a pointing device. It also gives you
access to the document camera’s on-screen display, which controls
many of the features that are selectable from the remote control. To
connect the mouse, follow the instructions below.
1. Make sure your document camera is turned off.

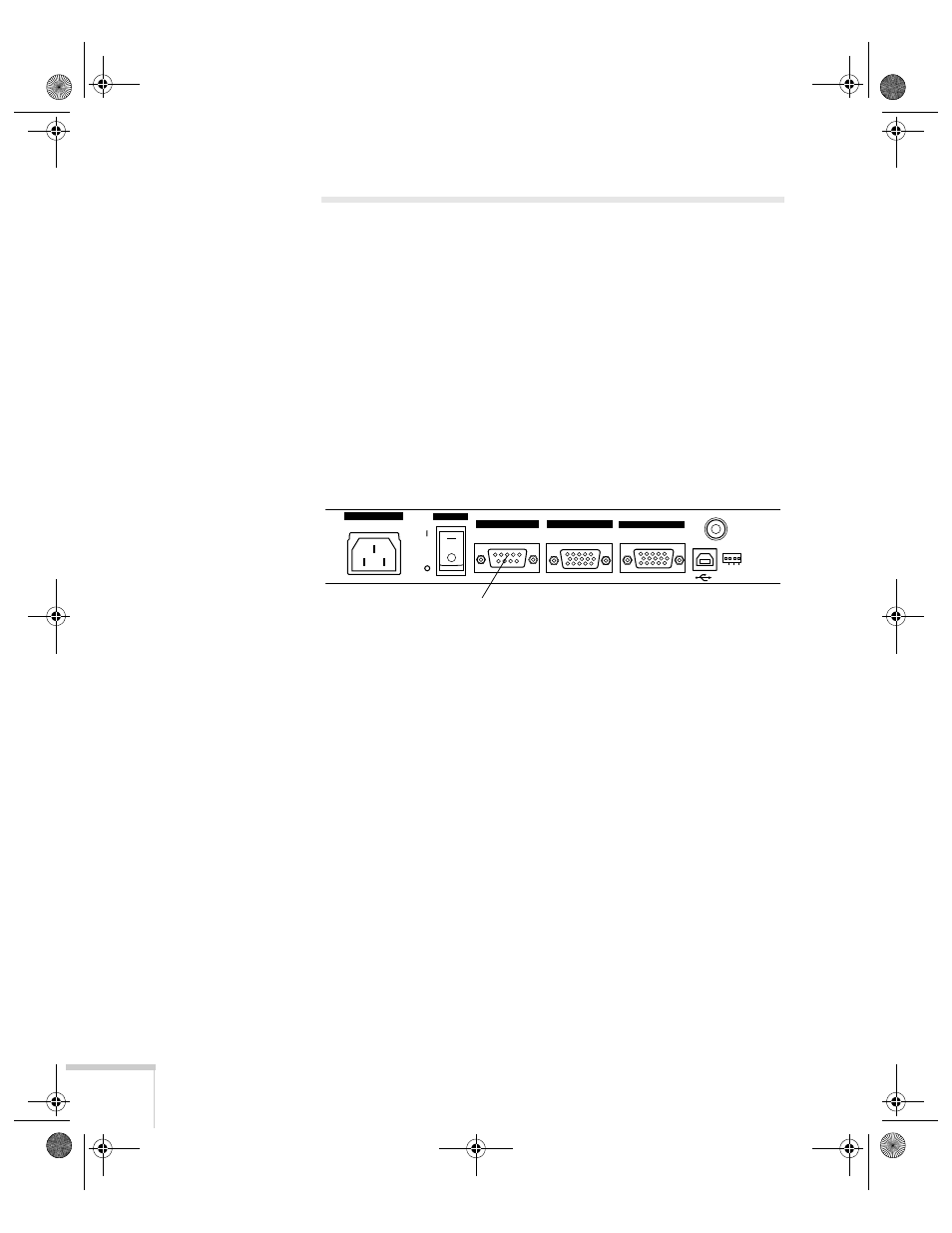

2. Connect the mouse cable to the
RS-232C
port on the back of the
document camera.
3. Make sure DIP switch C is set to 0 (up). If it is not, follow the
instructions on page 15 to change the DIP switch setting.
AC IN
RGB IN
RGB OUT
ON
OFF
RS-232C
POWER
VIDEO
OUT
USB
0
1
A B C
RS-232C port
