Extron • Matrix 3200/6400 Series • User’s Manual
Chapter 4 • Programmer’s Guide
Serial Communications Port
If the Matrix Video Switcher is the Master BME (BME #0), its RS-232/RS-422
connector may be connected to the serial port output of a Host device such as a
computer or control panel. Software control of the switcher is made possible by
this connection. A Host serial port connection to the RS-232/RS-422 connector of
a Matrix Video Switcher is shown in Figure 4-1.A.
___ The Matrix Video Switcher is normally configured for RS-232 control. If it is to be
used with an RS-422 device, an internal cable must be moved. The procedure for
moving the cable begins on Page 5-1.
The RS-232/422 connector on the Matrix Video Switcher is a 9-pin D female with
the following pin assignments:
Pin
RS-232
Description
RS-422
Description
1
–
not used
Tx(-)
Transmit Data (-)
2
Tx
Transmit Data
Tx(+)
Transmit Data (+)
3
Rx
Receive Data
Rx(+)
Receive Data (+)
4
–
not used
Rx(-)
Receive Data (-)
5
Gnd
Signal Ground
Gnd
Ground
6
–
not used
–
not used
7
–
not used
–
not used
8
–
not used
–
not used
9
–
not used
–
not used
The protocol is 9600 baud, 8-bit, 1 stop bit, no parity and no Flow control.
Details for programming the Matrix Video Switcher from a Host system connected
to the RS-232/RS-422 port are covered in this chapter.
4-1

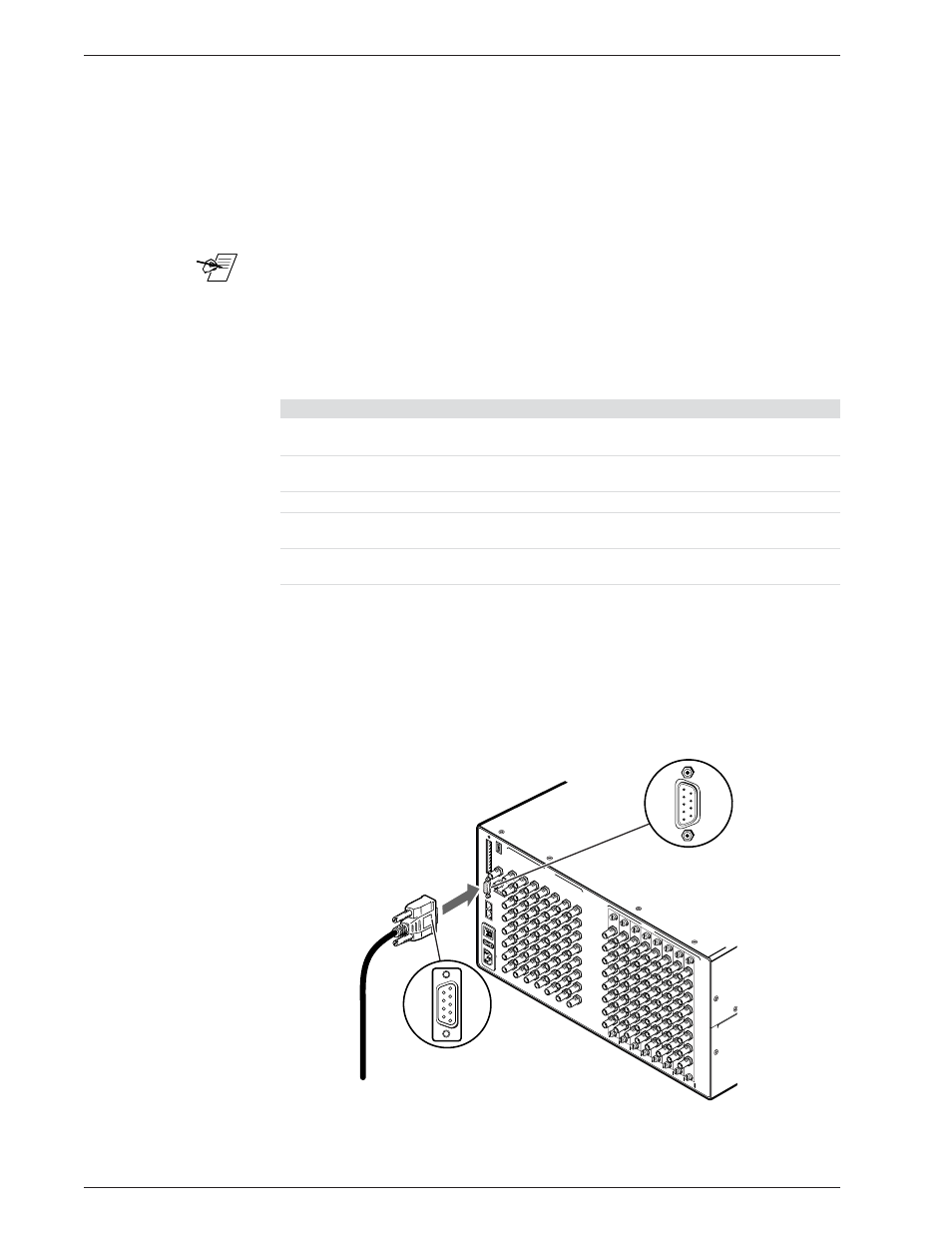

Figure 4-1.A
Matrix Video Switcher RS-232/RS-422 to Host connection.
AN
AH
EIM
, C
A
MA
DE
IN
US
A
AC P
OW
ER IN
PUT
FUS
E: 2
50V
5
.0A
TT
100-240V 0.5A MAX 50/60Hz
DISCONNECT PO
WER CORD BEFORE SER
VICING
BM
E
AD
DR
ES
S
4
IN
OU
T
BME COMM.
MKP COMM.
A
B
C
D
E
A
B
C
D
E
To Host
System/Device
Serial Port
Male
Connector
1
5
6
9
IN
1 - 8
IN
9 - 1
6
17 - 24
25 - 3
2
33
- 4
0
41
- 48
49 - 56
57 - 6
4
INP
UTS
OUTP
UT
S
Female
Connector
1
5
6
9
