Delta Electronics Multi-Rate CWDM SFP Transceiver LCP-1250 CWDM User Manual
Delta Electronics Hardware

DELTA ELECTRONICS, INC.
1 2008/1/15
Rev. 0A
www.deltaww.com

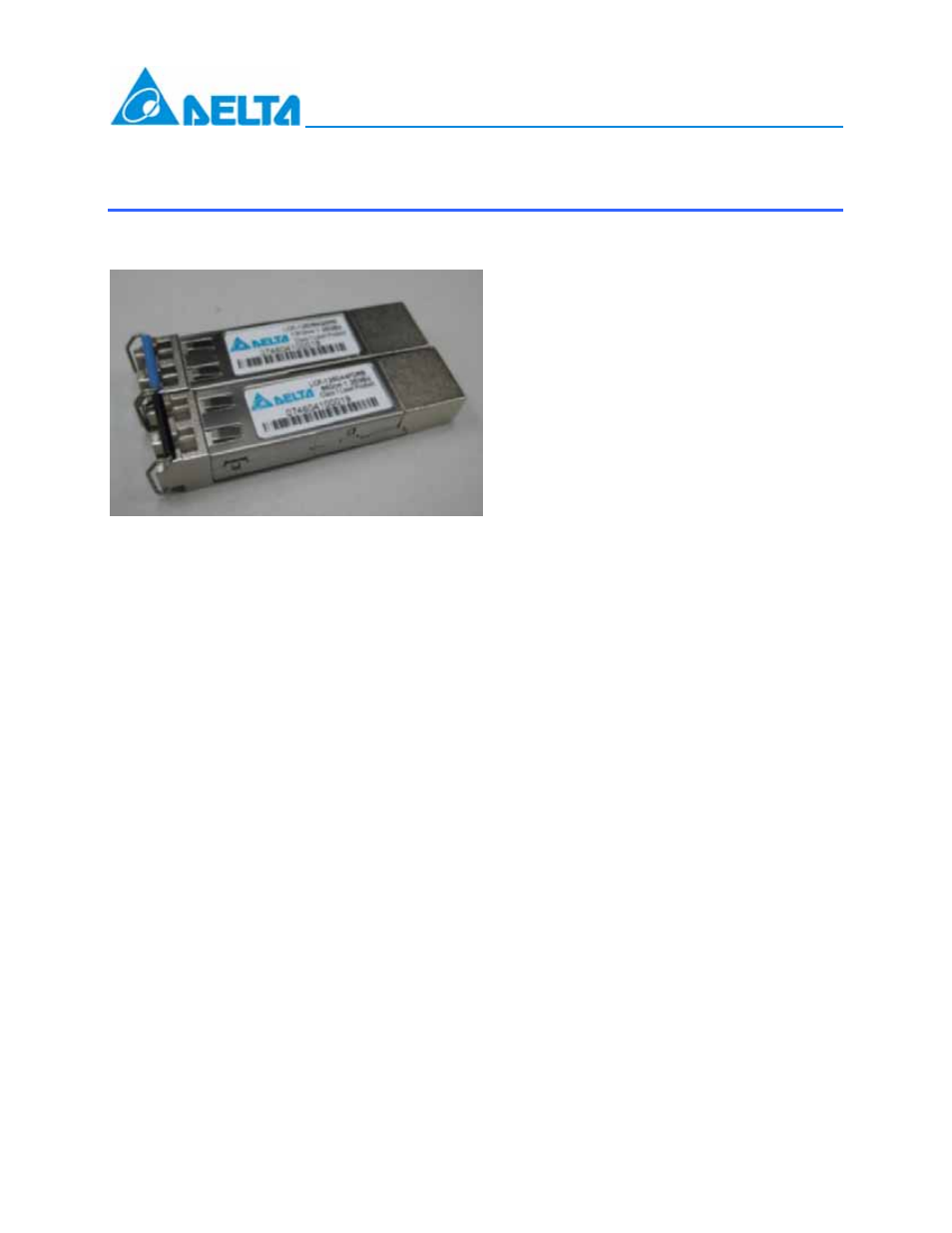

RoHS Compliant Multi-Rate CWDM SFP Transceiver for GbE and
Fiber Channel with DDM Function
FEATURES
Compliant with SFP Transceiver SFF-8472
MSA specification with internal calibration
Multi-rate operation from 125 to 1250Mpbs
Single + 3.3V Power Supply and TTL Logic
Interface
8 Wavelength
Uncooled CWDM DFB laser
LD transmitter
EEPROM with Serial ID Functionality
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Duplex LC Connector interface
Description
The LCP-1250 CWDM series are designed
for coarse wavelength division multiplexing
applications (CWDM) and hot pluggable SFP
transceiver modules that data rates up to 1.25Gb/s.
The LCP-1250 CWDM series are support GbE
(1.25Gb/s) and 1x Fiber channel (1.062Gb/s). The
selectiveness of center wavelength has 1470,
1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm.
The LCP-1250 CWDM series are designed to
be compliant with SFF-8472 SFP Multi-source
Agreement (MSA) with digital diagnostic
monitoring functions: Temperature, V
CC
, TX
optical power, TX laser bias current, and RX
received optical power.
The post-amplifier of the LCP-1250 CWDM
series also includes a Loss of Signal (LOS) circuit
that provides a TTL logic-high output when the
received optical level is below a preset LOS
Assert threshold.
Applications
Gigabit Ethernet
Switch to Switch interface
Switched backplane applications
File server interface
Performance
LCP-1250D4MxxRB: 1470nm to 1610nm CWDM
DFB laser transmitter and PIN receiver, 19dB
link budget
LCP-1250D4RxxRB: 1470nm to 1610nm CWDM
DFB laser transmitter and PIN receiver, 24dB
link budget
LCP-1250D4VxxRB: 1470nm to 1610nm CWDM
DFB laser transmitter and APD receiver, 30dB
link budget
Document Outline
- FEATURES
- Applications
- Performance
- Absolute Maximum Ratings
- Recommended Operating Conditions
- Electrical Characteristics
- Optical Characteristics
- Recommend Circuit Schematic
- SFP Transceiver Electrical Pad Layout
- Pin Function Definitions
- SFP timing parameters for SFP management
- Package Outline Drawing
- Evaluation
- Ordering information for SFP modules
- X1:
- Link Budget
- X2:
- Wavelength
- X3:
- RoHS Compliance
- X4:
- Temperature
