DS_S36SE05003_07312008
3

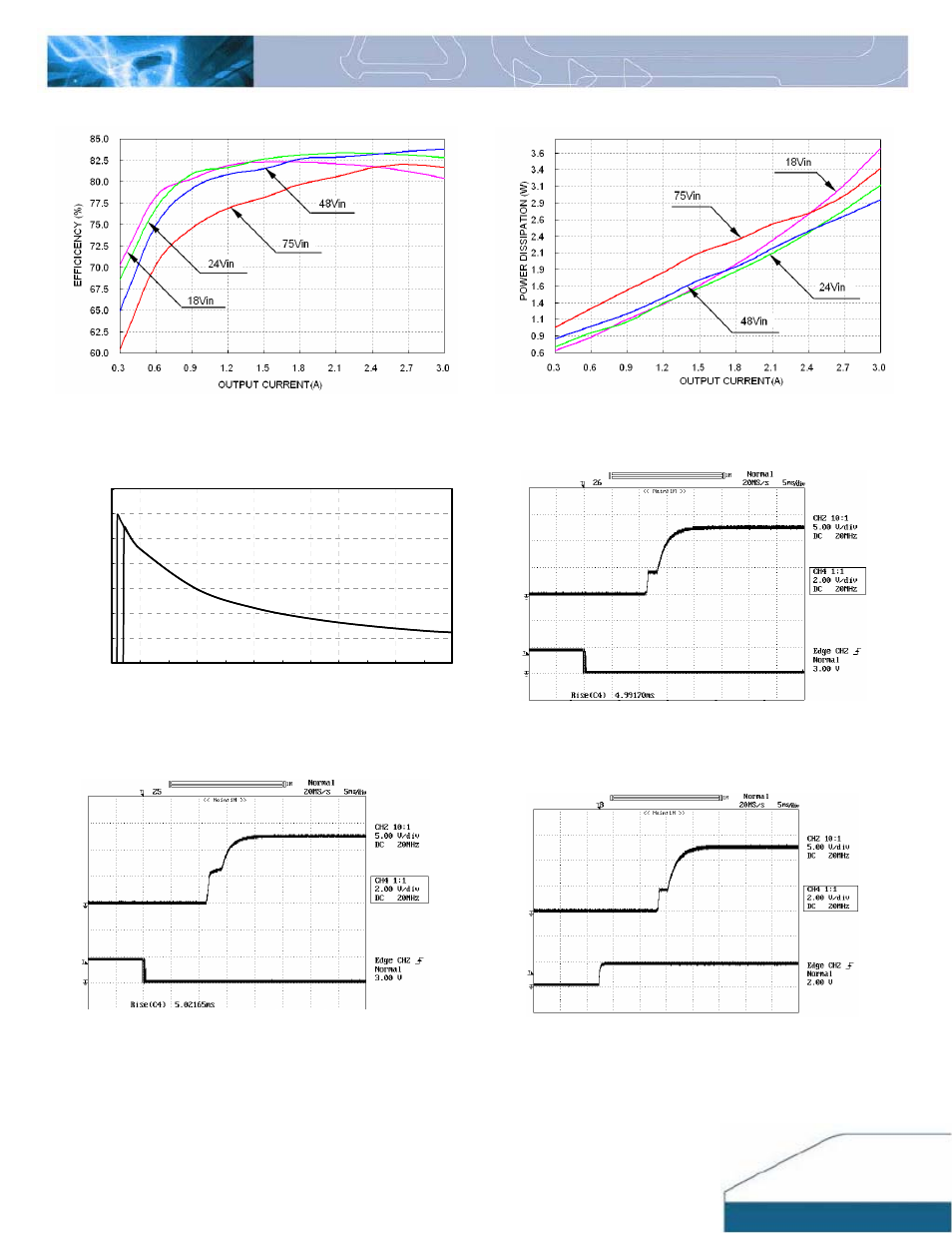

ELECTRICAL CHARACTERISTICS CURVES
Figure 1: Efficiency vs. load current for minimum, nominal, and
maximum input voltage at 25°C.
Figure 2: Power dissipation vs. load current for minimum, nominal,
and maximum input voltage at 25°C.
0
0.2
0.4
0.6
0.8
1
1.2
1.4
15 20 25 30 35 40 45 50 55 60 65 70 75
INPUT VOLTAGE(V)
IN
PUT
CURRENT
(A)
Figure 3: Typical full load input characteristics at room
temperature.
Figure 4: (For negative remote on/off logic) Turn-on transient at
full rated load current (5 ms/div). Vin=48V. Top Trace: Vout, 2V/div;
Bottom Trace: ON/OFF input, 5V/div.
Figure 5: (For negative remote on/off logic) Turn-on transient at
zero load current (5 ms/div). Vin=48V. Top Trace: Vout, 2V/div,
Bottom Trace: ON/OFF input, 5V/div.
Figure 6: (For positive remote on/off logic) Turn-on transient at full
rated load current (5 ms/div). Vin=48V. Top Trace: Vout, 2V/div;
Bottom Trace: ON/OFF input, 5V/div.
