Mechanical drawing – Delta Electronics Delphi S36SE User Manual
Page 13
DS_S36SE05003_07312008
13

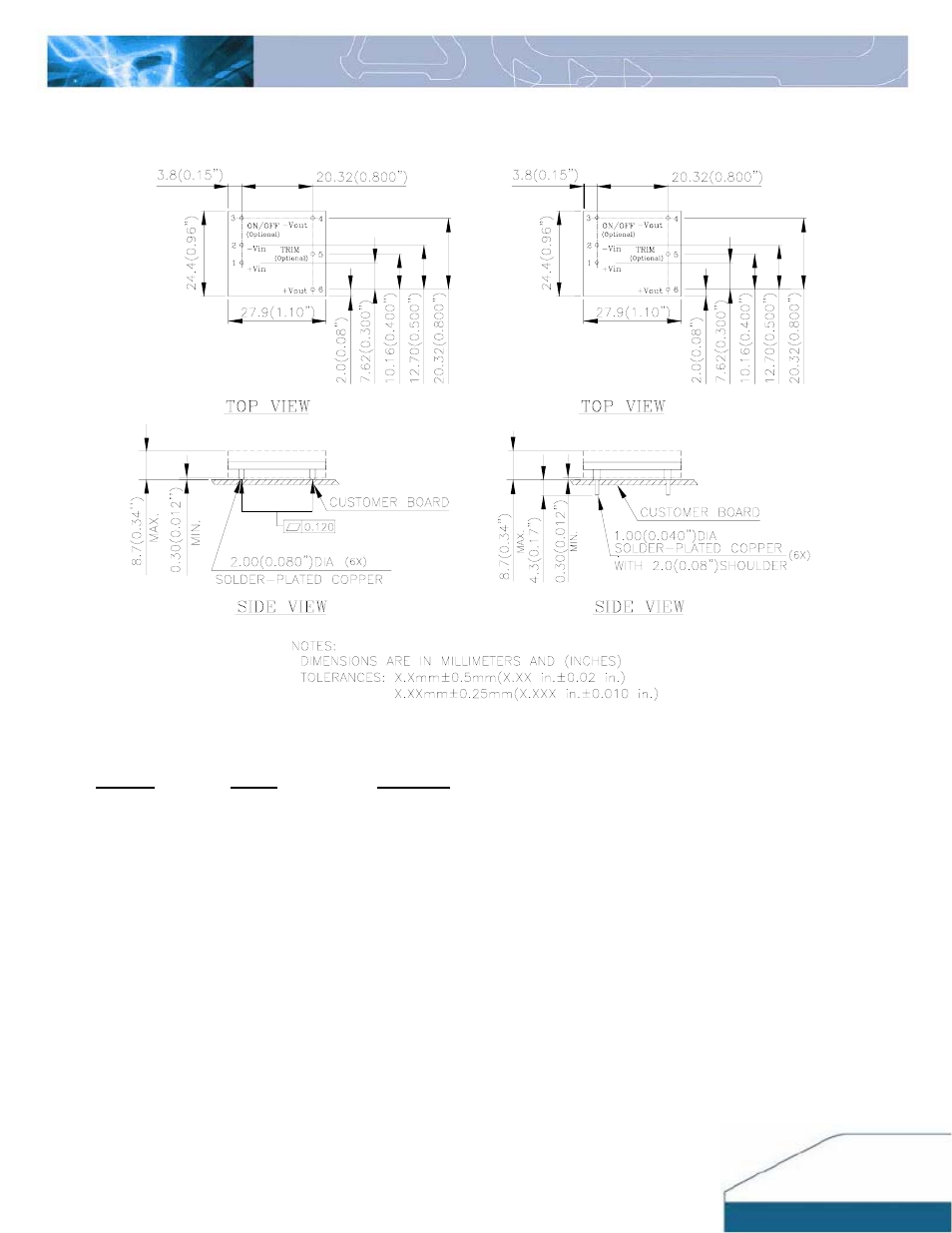

MECHANICAL DRAWING
Surface-mount module Through-hole module
Pin No. Name Function
1
2
3
4
5
6
+Vin
-Vin
ON/OFF (Optional)
-Vout
TRIM (Optional)
+Vout
Positive input voltage
Negative input voltage
Remote ON/OFF (Optional)
Negative output voltage
Output voltage trim (Optional)
Positive output voltage
