Thermal curves, Thermal considerations, Thermal derating – Delta Electronics Delphi S36SE User Manual

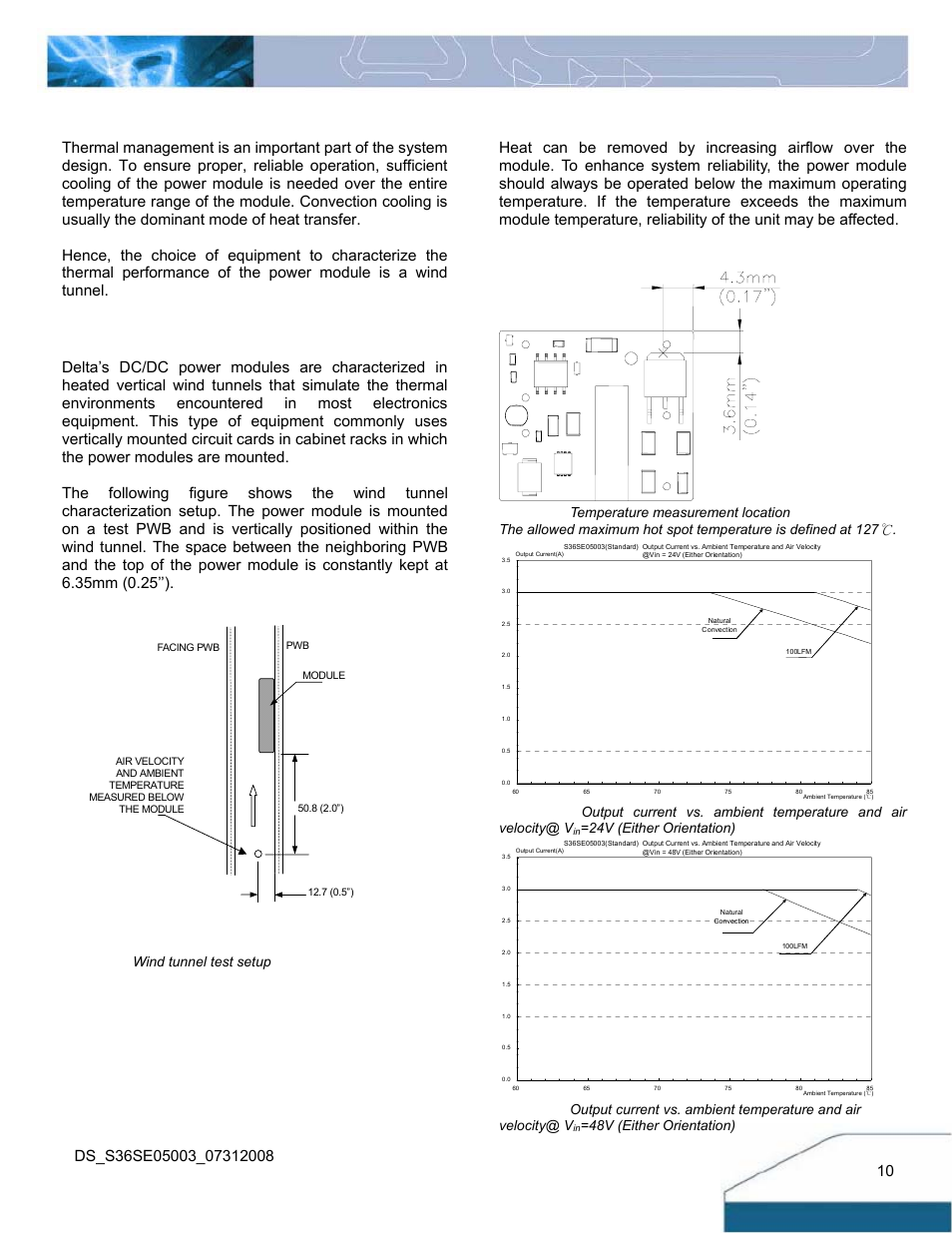

Page 10: Thermal testing setup, 24v (either orientation), 48v (either orientation), Figure 19: wind tunnel test setup
