Timer, Timer control register – Sundance SMT374 User Manual
Page 16
Version 2.2
Page 16 of 29
SMT374 User Manual
Timer
The TIM TCLK0 and TCLK1 signals can be routed to the DSP’s TOUT/TINP pins.
The signal direction must be specified, together with the routing information in the
timer control register.

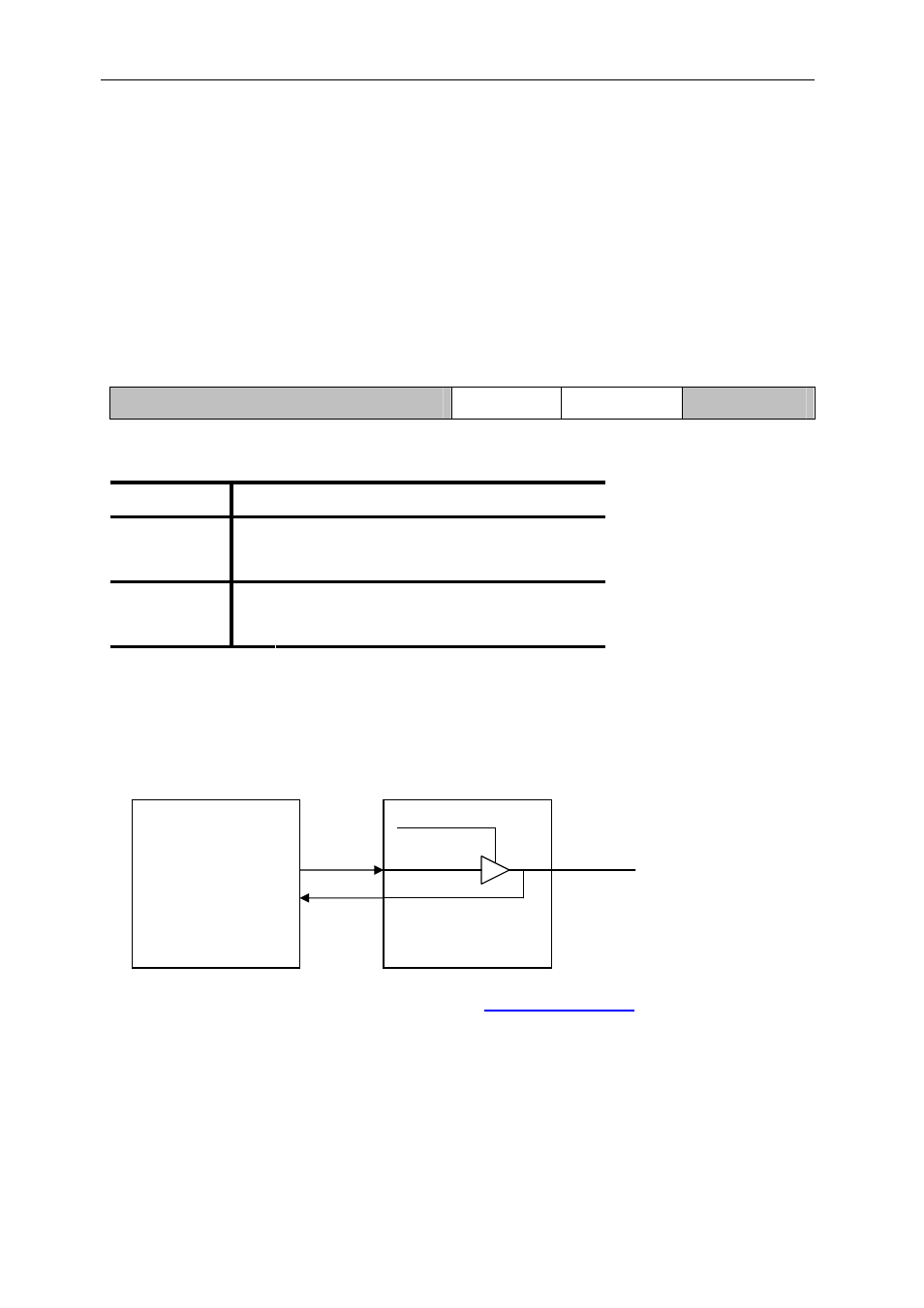

Timer Control Register
31–6 5
4
3–0
Reserved TCLK1
TCLK0
Reserved
Field Description
0
TIM TCLK0 is an input
TCLK0
1
Enable TIM TCLK0 as an output
0
TIM TCLK1 is an input
TCLK1
1
Enable TIM TCLK1 as an output
If the TIM TCLKx pin is selected as an output, the DSP TOUTx signal will be used to
drive it. The TIM TCLKx pin will always drive the DSP TINPx input.
C6x
FPGA
TOUT0
TINP0
TCLK0EN
TCLK0
The Timer control register is described in the
