The SMT374 has two SHB connectors. These interfaces operate with a fixed clock
rate of 100MHz.
Architecture

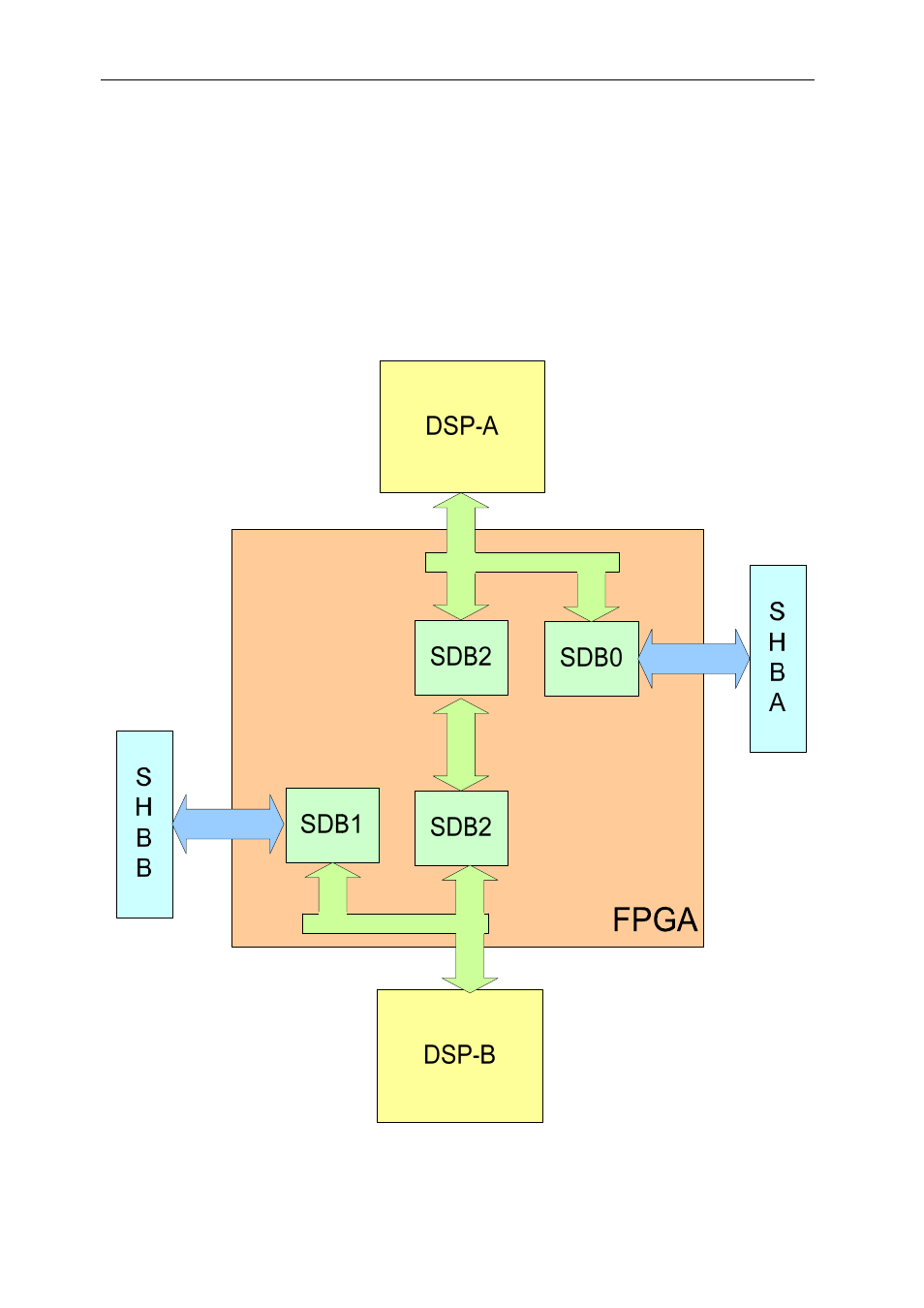

SDB0 on DSP-A and SDB1 on DSP-B are presented on the TIM's SHB connectors,
SHBA and SHBB respectively. SDB2 of DSP-A has a fixed internal connection to
SDB2 of DSP-B.
