Accessories

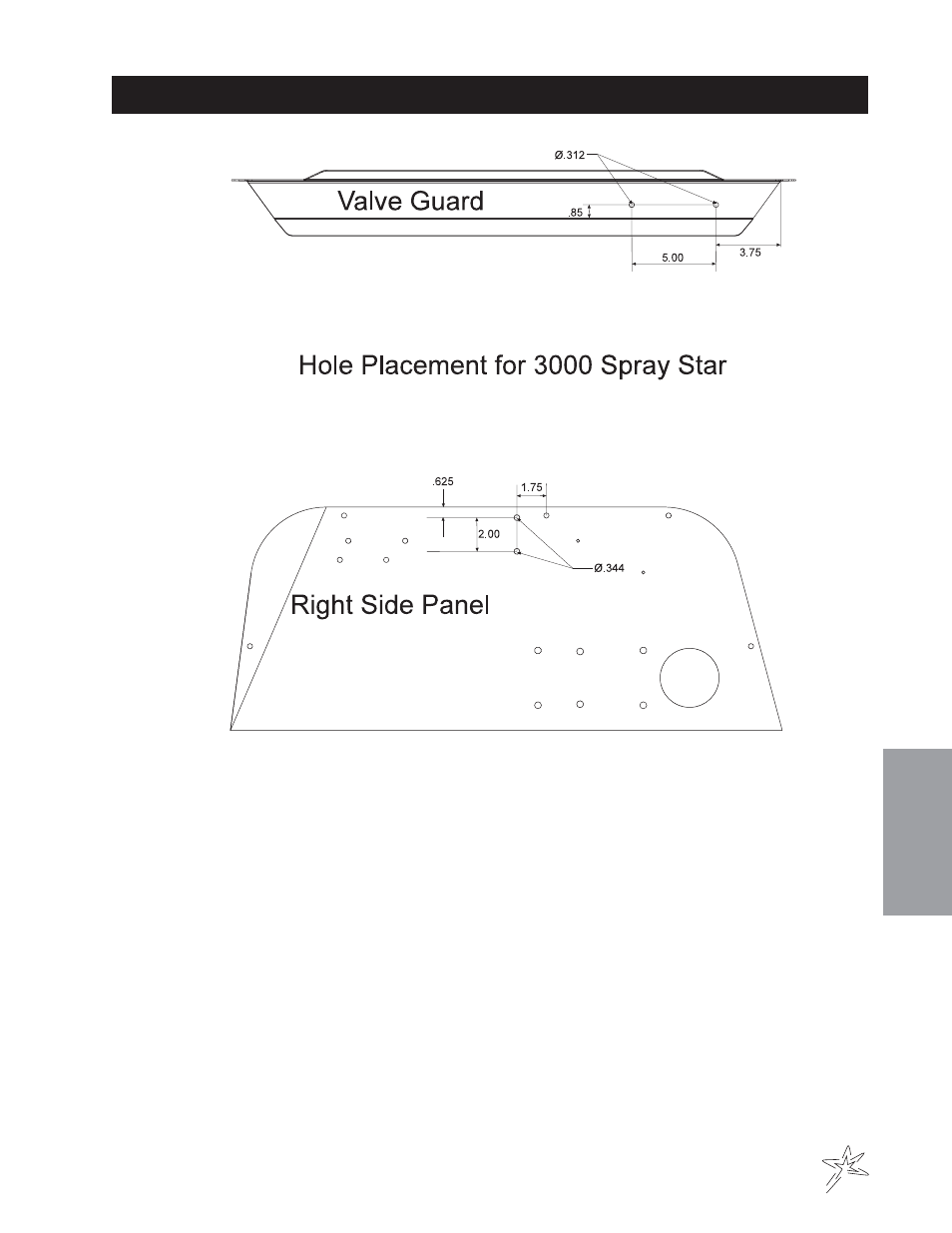

HOLE PLACEMENT FOR STAR SHIELD CONTROL BOX
Read all instructions before starting.
1. Mount the control box mount (33-512) where shown on right side panel. Controller should be conveniently
located with easy access to operator. Note: As you sit in the operators seat facing forward the switch labeled left
boom control operates the boom on the left and switch control labeled right operates the right boom.
2. Connect the red wire to the positive (+) battery post first. Then connect the white wire to the negative (-) battery
post. Carefully route all wires along frame avoiding any pinch points. Tie down to vehicle ensuring that no loose
wire may catch on operator or equipment
Connect the 3 wires as follows:
a)
Wire marked with red tape is connected to the right boom actuator.
b) Wire marked with yellow tape is connected to left boom actuator.
c) The unmarked wire is connected to the center boom actuator.
When connecting the two wires, just snap into place and secure any excess cable.
3. Drill two holes in the valve guard and place new back plate (33-516) for flow monitor on the valve guard using
the existing hardware. Remove existing hose and add the 60" hoses that are provided.
4. Transport assemblies are to be installed last. With the boom raised all the way up (all three sections) pull the
right and left sections down into the transporting position. Place the transport assemblies on the rear fender so
that they will hold the boom. Drill the two
13 /
32
holes on both sides. Bolt transport assemblies on.
