101
Accessories

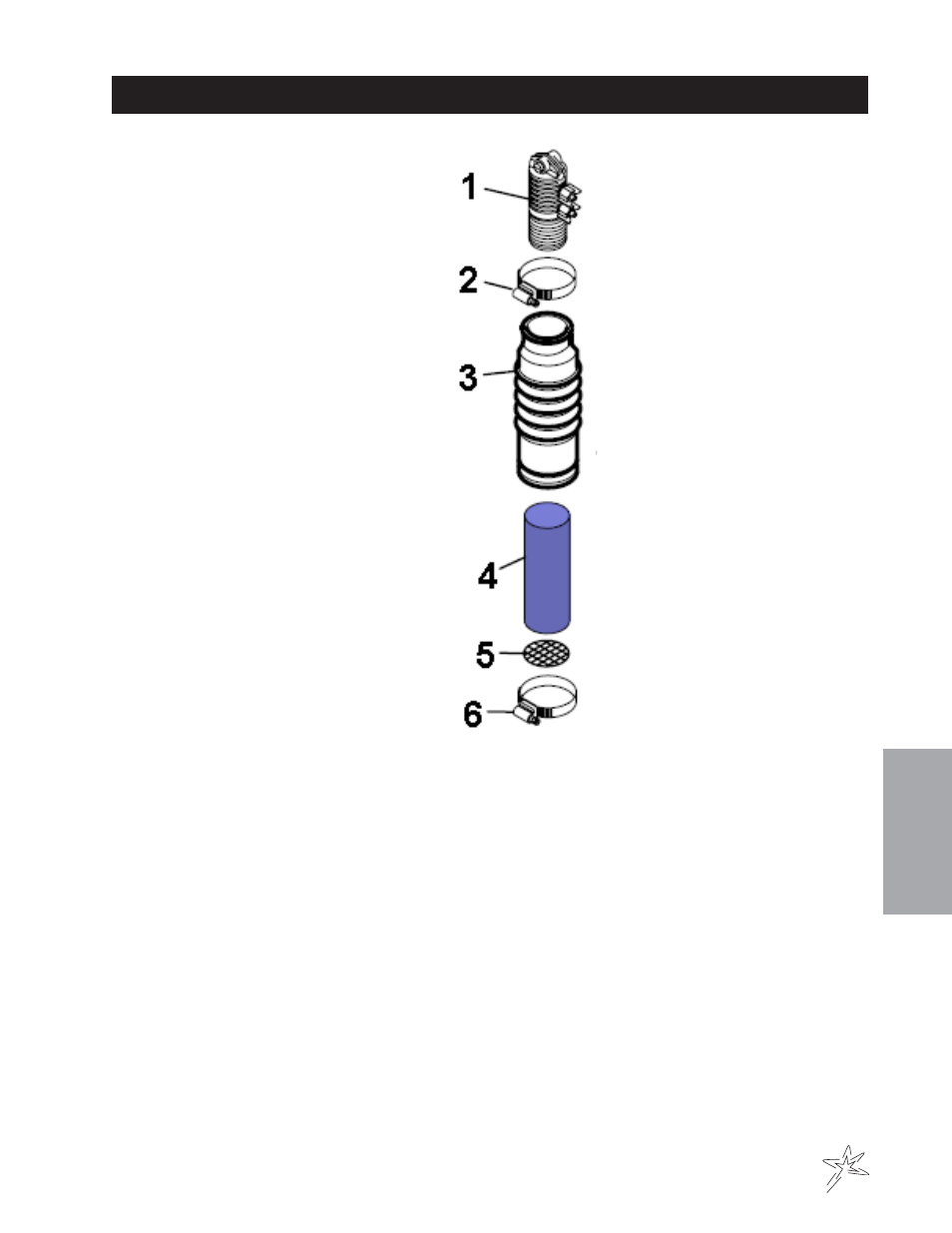

15-511 FOAM NOZZLE SUB ASSEMBLY DRAWING
REF# PART# DESCRIPTION QUANTITY
1* 15-511-01 Foam Nozzle Inlet Body 1
15-511-02 Foam Sponge 1
15-511-10 Plastic Screen 1
2* Hose Clamp 1
3* Drop Tube 1
4 15-511-08 Long Foam Sponge 1
5 15-511-09 Stainless Steel Screen 1
6 Hose Clamp 1
NS 15-510-01 Nozzle Mounting Rods 2
* 15-511-07 Foam Nozzle Sub Assembly
