17
Diagrams
WIRING PARTS LIST
(KOHLER AIR COOLED)
REF # PART # DESCRIPTION QUANTITY
1 50-359 Oil Pressure Warning Indicator Light 1
8874 Line Connector 1
8875 Bullet Terminal 1
2 22-002 Interlock Switch 1
3 13-288 Key Switch with Hardware (Kohler # 25 099 04) 1
76-310 Key Set 1
4 34-146 Panel Mount Circuit Breaker 1
34-145 Circuit Breaker Boot 1
5 12-017 Hour Meter 1
6 Plug-In Connector (Wire Harness & Engine Wire Harness)
7 Ignition Module (Part of Engine)
8 Fuel Shut-Off Solenoid (Part of Engine)
9 Rectifier (Part of Engine)
10 Oil Sender (Part of Engine)
11 Starter (Part of Engine)
12 75-518 Red Battery Cable 1
13 22-073 Battery 1
14 22-054 Black Battery Cable 1
15 42-113 Cranking Relay (Part of Engine Kohler # 25 435 02)
36-002 Wire Harness (Includes all wire colors with *) 1

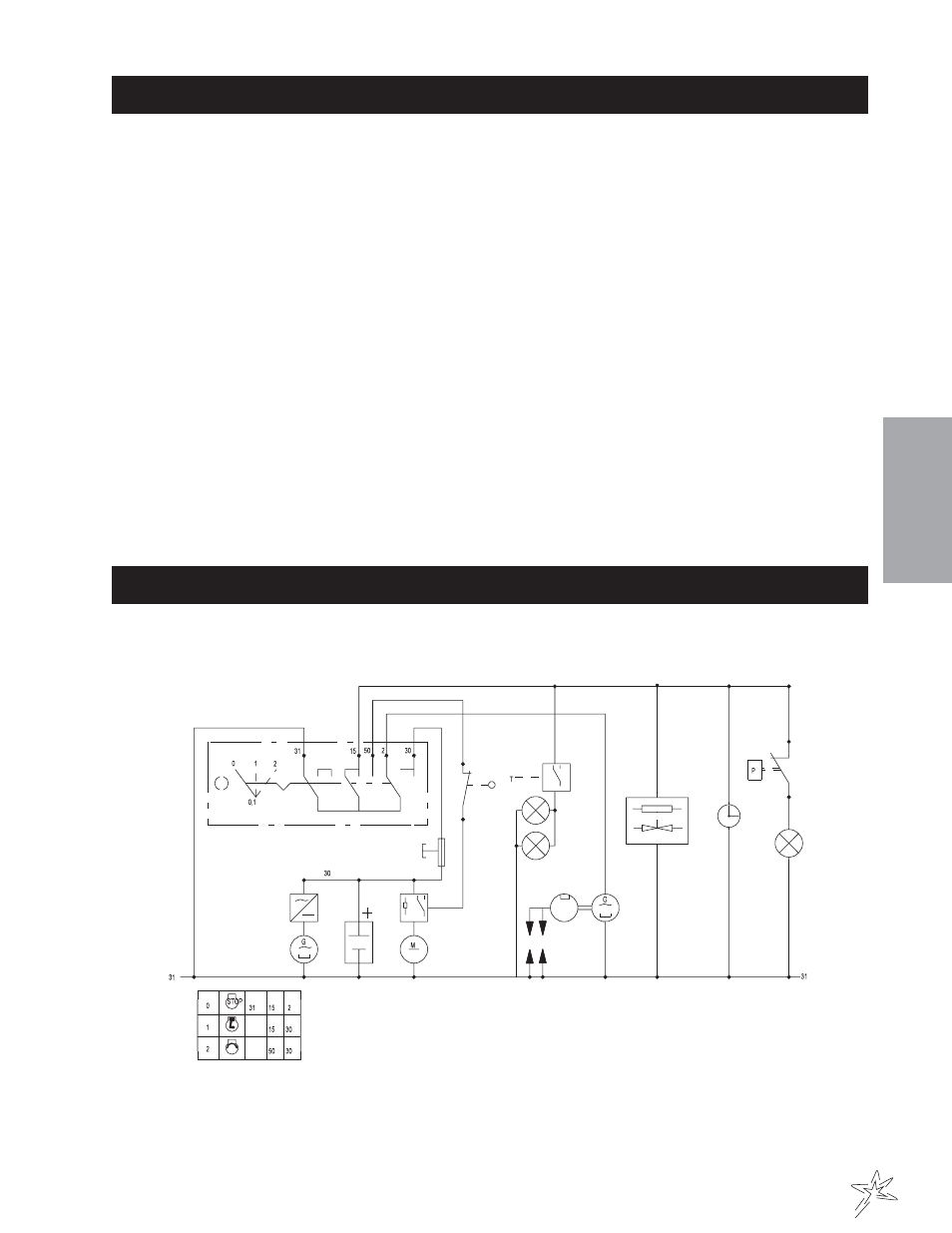

WIRING SCHEMATIC
