11
Service
ADJUSTMENTS
(CONTINUED)

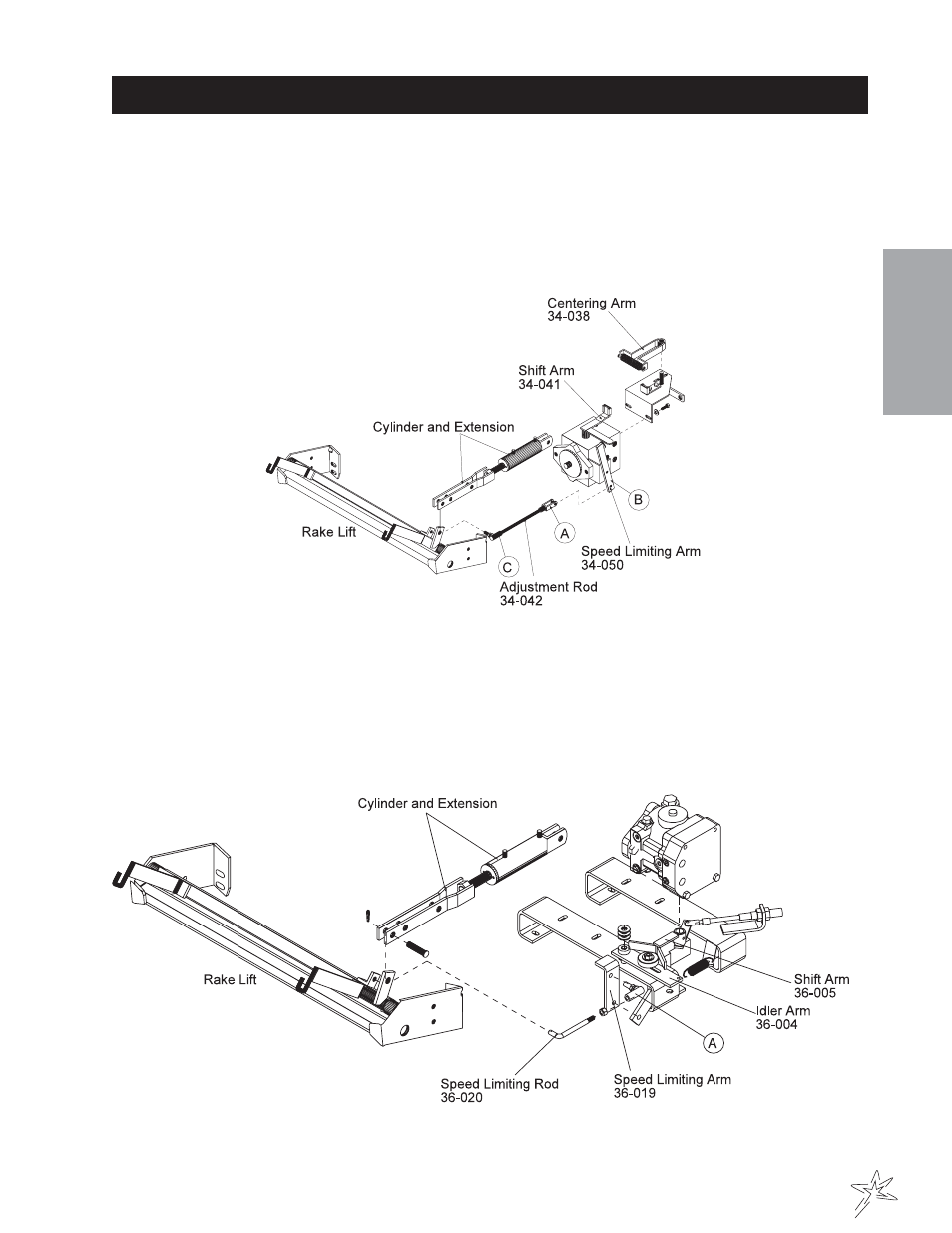

SPEED BOSS (KAWASAKI LIQUID COOLED)
Speed Boss allows the machine to operate at a proper speed while raking sand traps on golf courses. This
speed boss has been factory set at an average speed of 3-4 mph(5-6.5 kph). The Speed Boss will only limit the
speed while the rake is lowered into the operating position. The speed setting may be adjusted by removing the
Yoke(A) from the Limiting Arm(B). Then loosen Jam Nut by ball fitting and Adjustment Rod(C). Turn Ball Joint
clockwise to make the machine operate slower or turn counter clockwise to go faster. Tighten jam nut. Connect
ball joint to limiting arm. Check to make sure nothing is binding and test drive to check desired speed.
SPEED BOSS (KOHLER AIR COOLED)
Speed Boss allows the machine to operate at a proper speed while raking sand traps on golf courses. This
speed boss has been factory set at an average speed of 3-4 mph(5-6.5 kph). The Speed Boss will only limit the
speed while the rake is lowered into the operating position. The speed setting may be adjusted by turning the
Ball Joint(A) clockwise to make the machine operate slower or turn counter clockwise to go faster. Tighten jam
nut. Check to make sure nothing is binding and test drive to check desired speed.
