15
Diagrams
WIRING PARTS LIST
(KAWASAKI LIQUID COOLED)
REF # PART # DESCRIPTION QUANTITY
1 Plug-In Connector (Engine Wire Harness)
2 33-094 Cluster Gauge 1
3 34-206 Low Battery Indicator Module with Wires 1
33-096 Low Battery Indicator Module (only)
4 12-017 Hour Meter 1
5 34-146 Circuit Breaker 1
34-145 Circuit Breaker Boot 1
6 34-204 Wire Circuit Breaker To Switch # 30 1
7 17-068 Ignition Switch 1
17-079 Key (only)
8 12-003 Light Switch 1
15-472 Boot 1
9 34-203 Wire Light Switch To Lights 1
10 Regulator Plug (Part of Engine )
11 Fuel Pump (Part of Engine)
12 22-054 Black Battery Cable (Battery to Ground) 1
13 22-002 Interlock Switch 1
14 Plug-In Connector (Main Wire Harness)
15 Ignition (Part of Engine)
16 Charging Coils (Part of Engine)
17 22-073 Battery 1
18 50-323 Red Battery Cable (Battery to Starter) 1
19 Starter (Part of Engine)
20 Oil Sender (Part of Engine)
21 Temperature Sender (Part of Engine)
22-017 Ground Strap ( Engine Frame to Main Frame) 1
34-150 Wire Harness (contains all wires except Ref 6 & Ref 9) 1

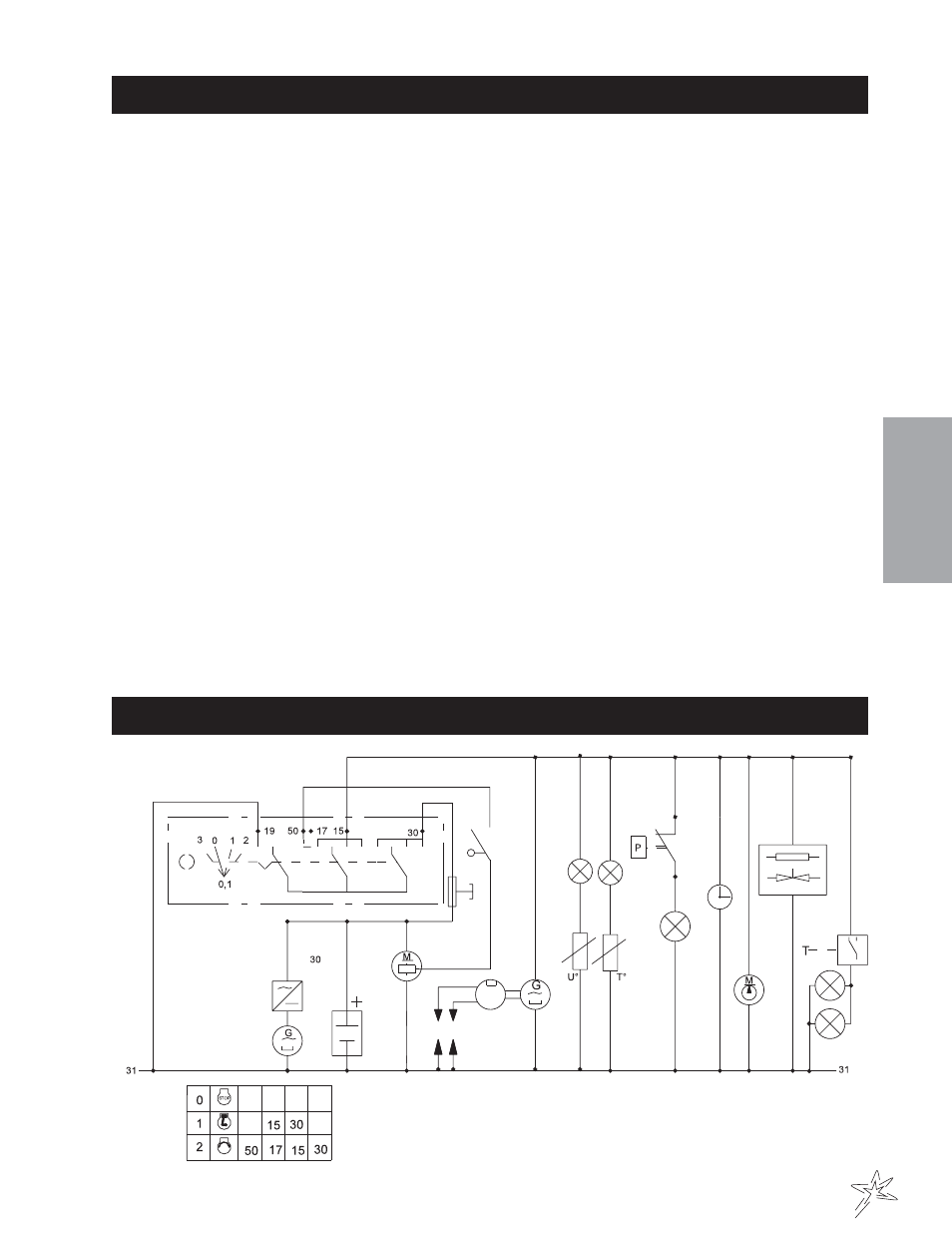

WIRING SCHEMATIC
