10
Service
ADJUSTMENTS

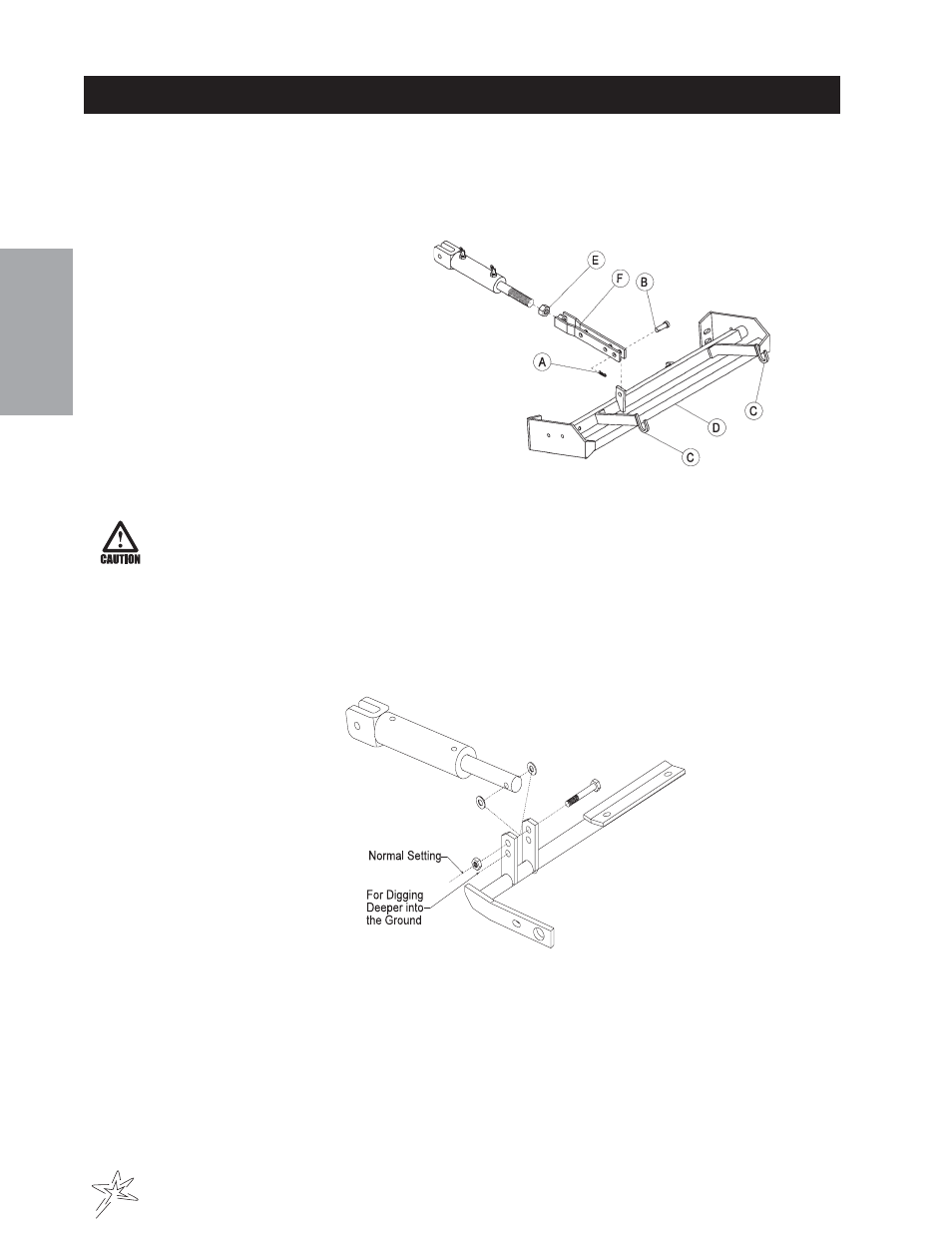

RAKE LIFT CYLINDER
Completely lower Rake Lift. Remove cotter pin (A) and clevis pin (B). Place attachment lift arms (C) at
1 /
16
"
above cross member (D) on Rake Lift. Loosen jam nut (E). Twist cylinder extension (F) so clevis pin end of
cylinder extension lines up with holes in attachment lift arm. Replace clevis and cotter pins. Tighten jam nut.
Raise and lower Rake Lift to check for proper clear-
ance.
When the rear rake attachment is lowered while the machine is in forward motion, the
forward speed of the machine will slow drastically. Operator should be prepared for a rapid
change in speed.
LIFT ASSEMBLY
When it is necessary to have attachment lift dig deeper or lower into ground, relocate cylinder rod of hydraulic
cylinder which controls the lift distances, into lower set of holes in attachment lift swing arm. This new position
forces attachment farther down.
PARK BRAKE
By turning knob on end of lever you can tighten or loosen
brake a small amount. If this is not enough turn clevis on brake cable to adjust length of cable.
