68 DF-745 User Interface

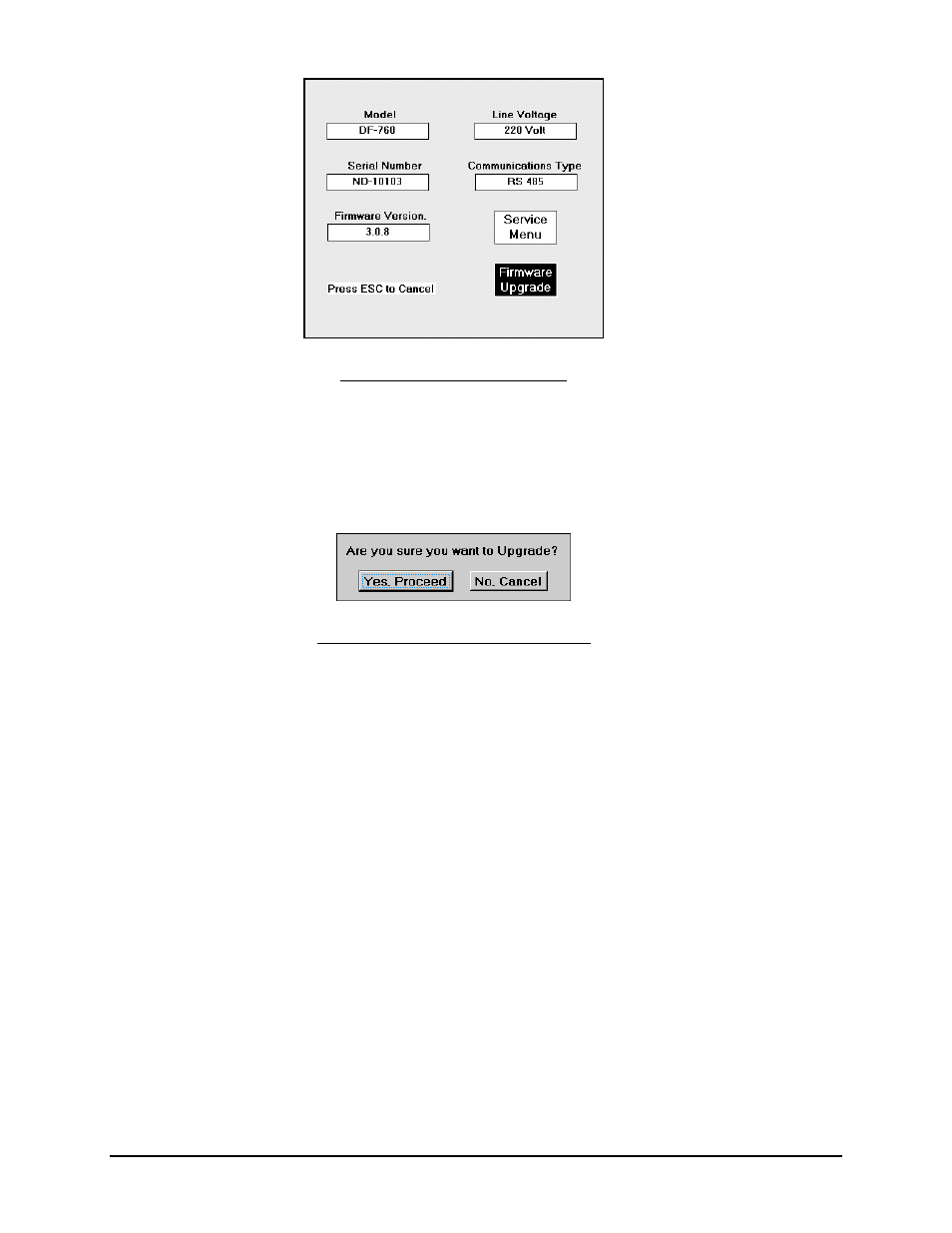

Figure 82: System Info Screen
7.4.16.1 Firmware Upgrade
While the Firmware Upgrade box is highlighted, hitting the Next key will bring up the
Firmware Upgrade dialog box as in Figure 83 below.
Figure 83: Software Upgrade Screen
Place the USB memory stick in the external USB socket located behind the front door,
When ready hit the Yes, Proceed key and follow the instructions. At the conclusion of the
upgrade the analyzer will automatically reboot.
