Installation, Start Up and Shut Down DF-745
23
H O
2
REGULATOR
ADJUSTMENT
PROCESS INLET
BYPASS OUTLET
BYPASS FLOWMETER
BYPASS FLOW ADJUST
FLOW METER
REAR PANEL
FLOWSWITCH
(FRONT)
(REAR)
PI
.010 ORIFICE
V1
V2
80 psi IN
TO CREATE VACUUM
MOISTURE
SAMPLE VENT
ASPIRATOR WITH BUILT
IN VACUUM CONTROL
NEEDLE VALVE
MOISTURE SENSOR OUTLET

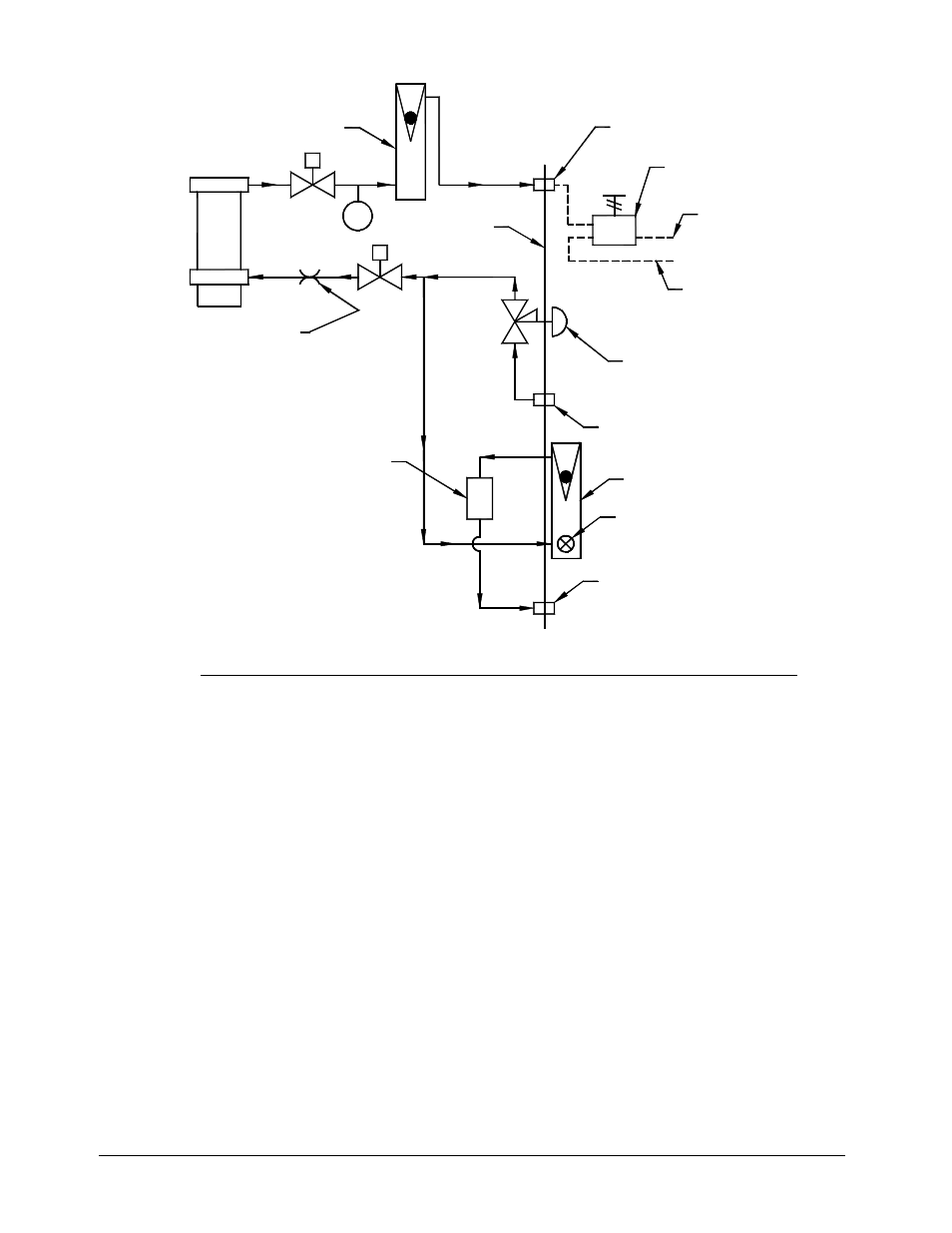

Figure 10: Block Diagram of Gas Flow Path with Optional Valves and Aspirator
