FIREPLACE
INSTALLATION
Continued

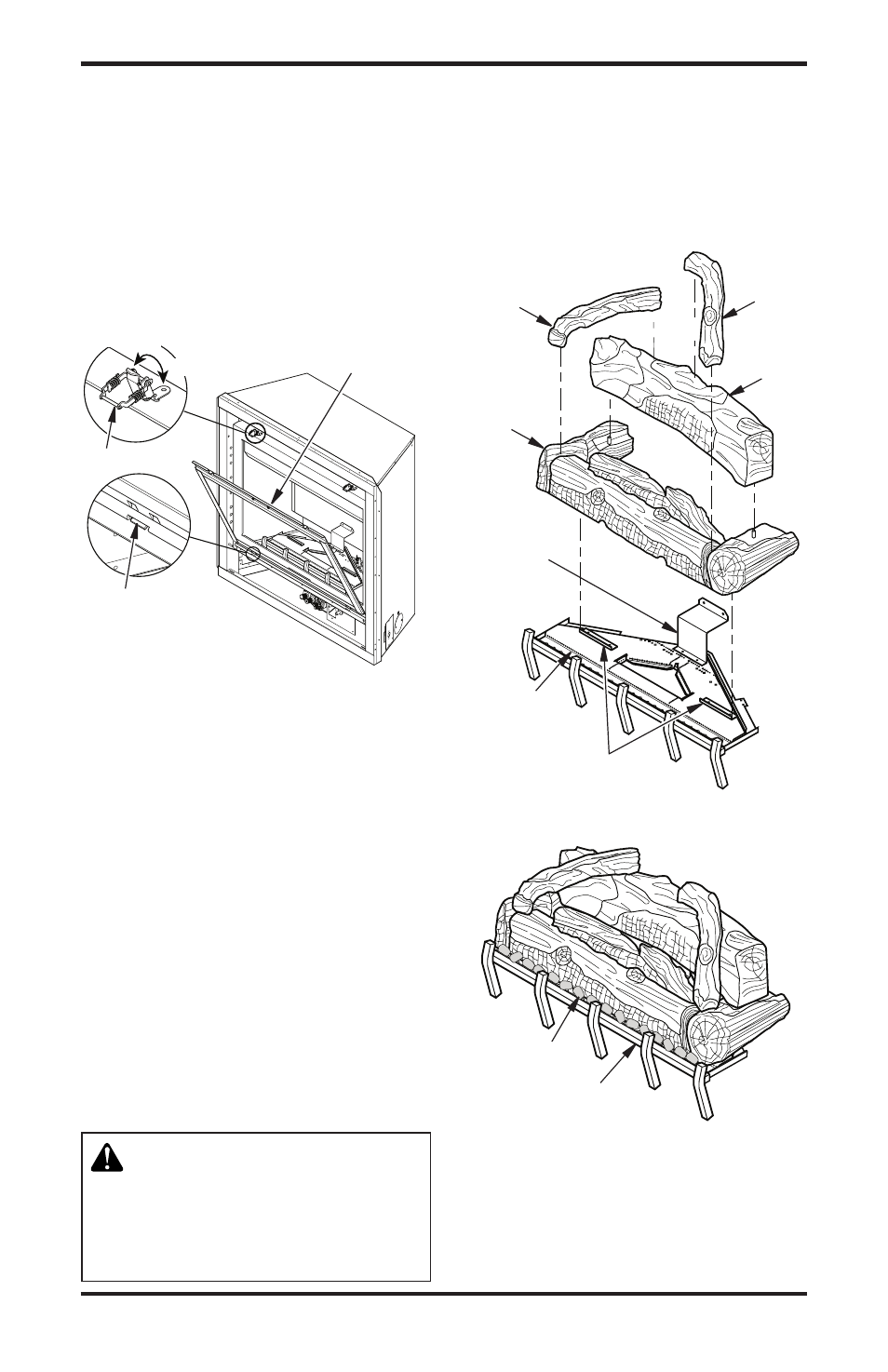

Figure 45 - Removing/Replacing Glass
Door
Figure 46 - Installing Logs
Top Left
Log
Front
Log
Top
Right
Log
Rear
Log
Rear Log
Stand
Log Mounts
Burner
Pan
Latch
UNLOCK
LOCK
Door Frame Tab
Glass Door
Panel
placing the positioning tabs on the glass frame
into the slots in the retaining bracket then
swinging the door into the sealed position and
locking the two latches in place.
7. Replace the top louver panel and then the
lower louver panel.
INSTALLING LOGS, LAVA ROCK
AND GLOWING EMBERS
A 4 piece ceramic log set comes packed inside the
unit firebox. Removal of glass door is necessary to
unpack and assemble the logs and add hearth treat-
ments. Follow steps under Removing/Replacing
Glass Door, page 25 to access the logs and burner.
Assemble the logs and add burner treatments as
follows:
1. Position the base log onto burner log mounts
(see Figure 46). Note: The cut out on the bot-
tom should fit over the mounts and the base log
should be positioned against the rear panel.
2. Position the holes on the bottom of the rear
log over the pins on the base log Figure 46).
3. Position the top left log and top right log onto
the rear log and base log as shown in (see
Figure 46).
WARNING: The glass door
must be securely in place before
running this fireplace. Do not run
this fireplace if glass is missing
or broken.
4. Open the bag of ember materials.
5. Break apart about quarter sized pieces and
place about a single layer along the full length
of the ember tray to hide the bottom edge of
the base log (see Figure 47).
6. Replace the glass door and louver panels. See
Removing/Replacing Glass Door, page 25.
Ember
Material
Ember
Tray
Figure 47 - Applying Ember Material
