Delta Electronics LC-1250xxxx Series User Manual
Page 5
LC-1250xxxx Series
DELTA ELECTRONICS, INC.
5 Jan.,
2008
Rev. 0H
www.deltaww.com

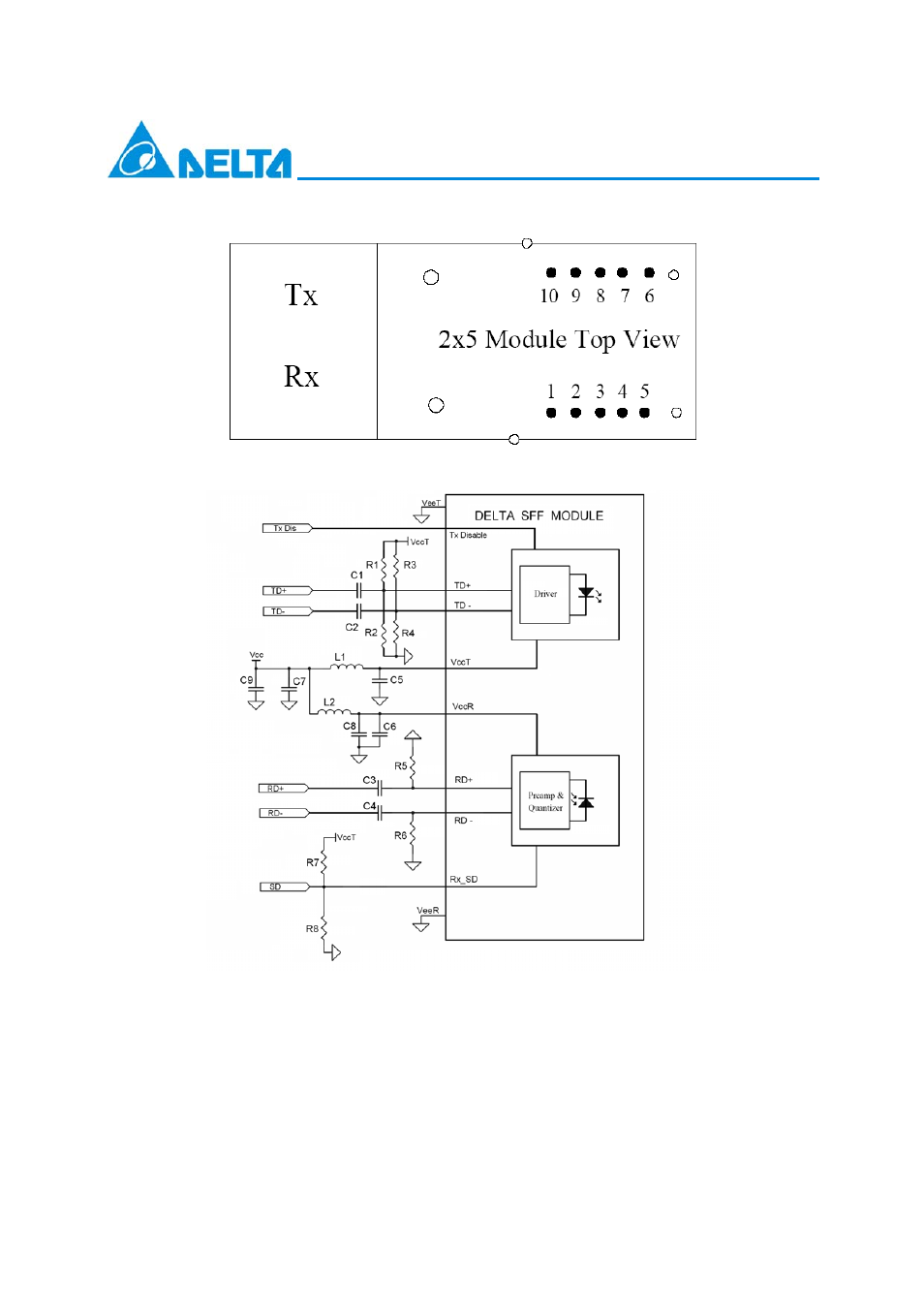

Pin Out Drawing
Recommended Circuit Schematic (LC-1250xxx1Rx)
R1=R3=82 ohm (3.3V),68 ohm(5V)
R2=R4=130 ohm (3.3V),191 ohm (5V)
R5=R6=150 ohm (3.3V),270 ohm (5V)
R7=130 ohm (3.3V PECL),82 ohm(5V),NC (TTL)
R8=82 ohm (3.3V PECL),130 ohm(5V),NC (TTL)
C1=C2=C3=C4=C5=C6=C7=100 nF
