ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Logic

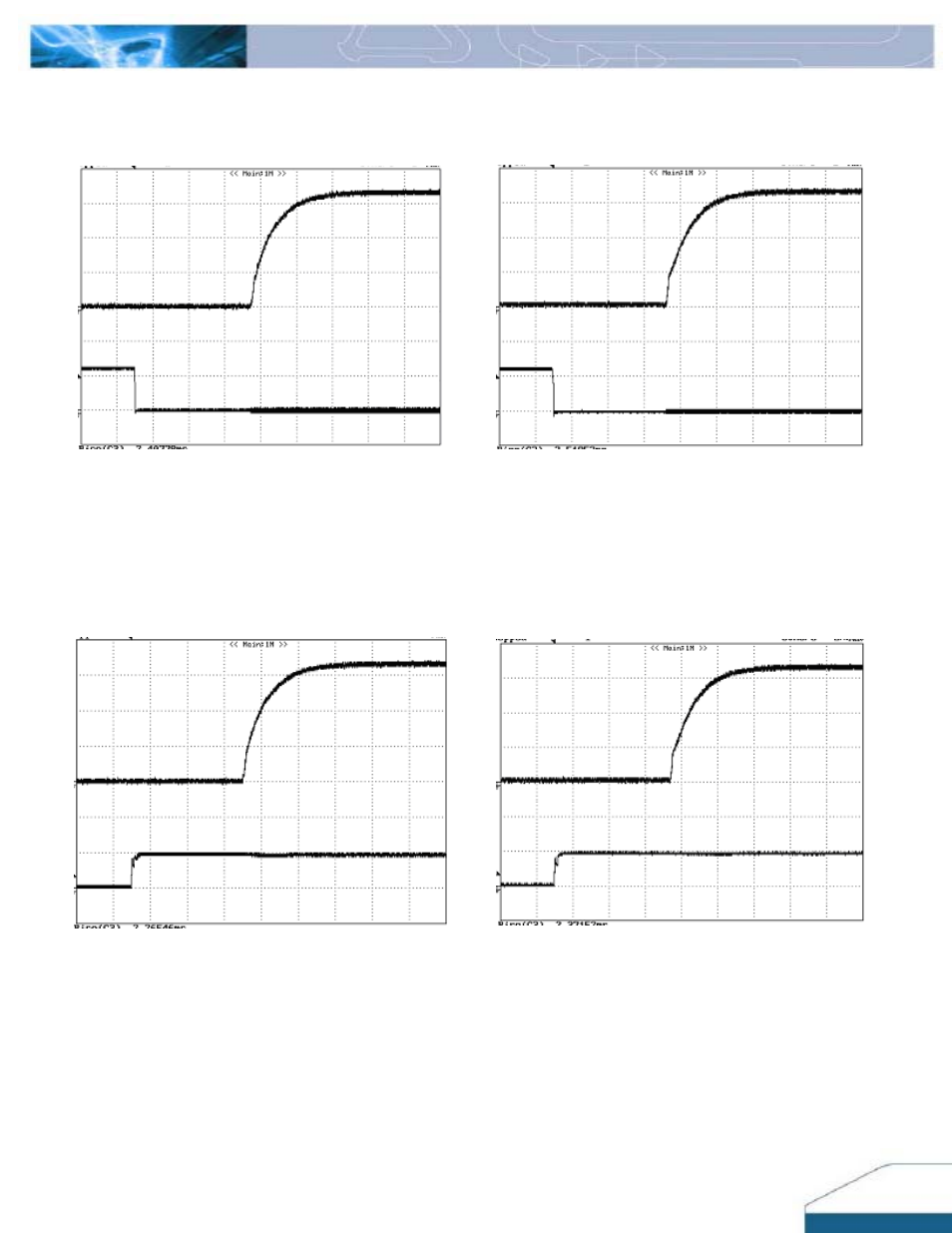

Figure 4: Turn-on transient at full rated load current (resistive
load) (5 ms/div). Vin=48V.Top Trace: Vout, 1V/div; Bottom
Trace: ON/OFF input, 5V/div
Figure 5: Turn-on transient at zero load current (5 ms/div).
Vin=48V.Top Trace: Vout, 1V/div; Bottom Trace: ON/OFF input,
5V/div
For Positive Remote On/Off Logic
Figure 6: Turn-on transient at full rated load current (resistive
load) (5 ms/div). Vin=48V.Top Trace: Vout, 1V/div; Bottom
Trace: ON/OFF input, 5V/div Figure 7: Turn-on transient at zero load current (5 ms/div).
Vin=48V.Top Trace: Vout, 1V/div, Bottom Trace: ON/OFF input,
5V/div
