Mechanical drawing – Delta Electronics Series L36SA User Manual
Page 12

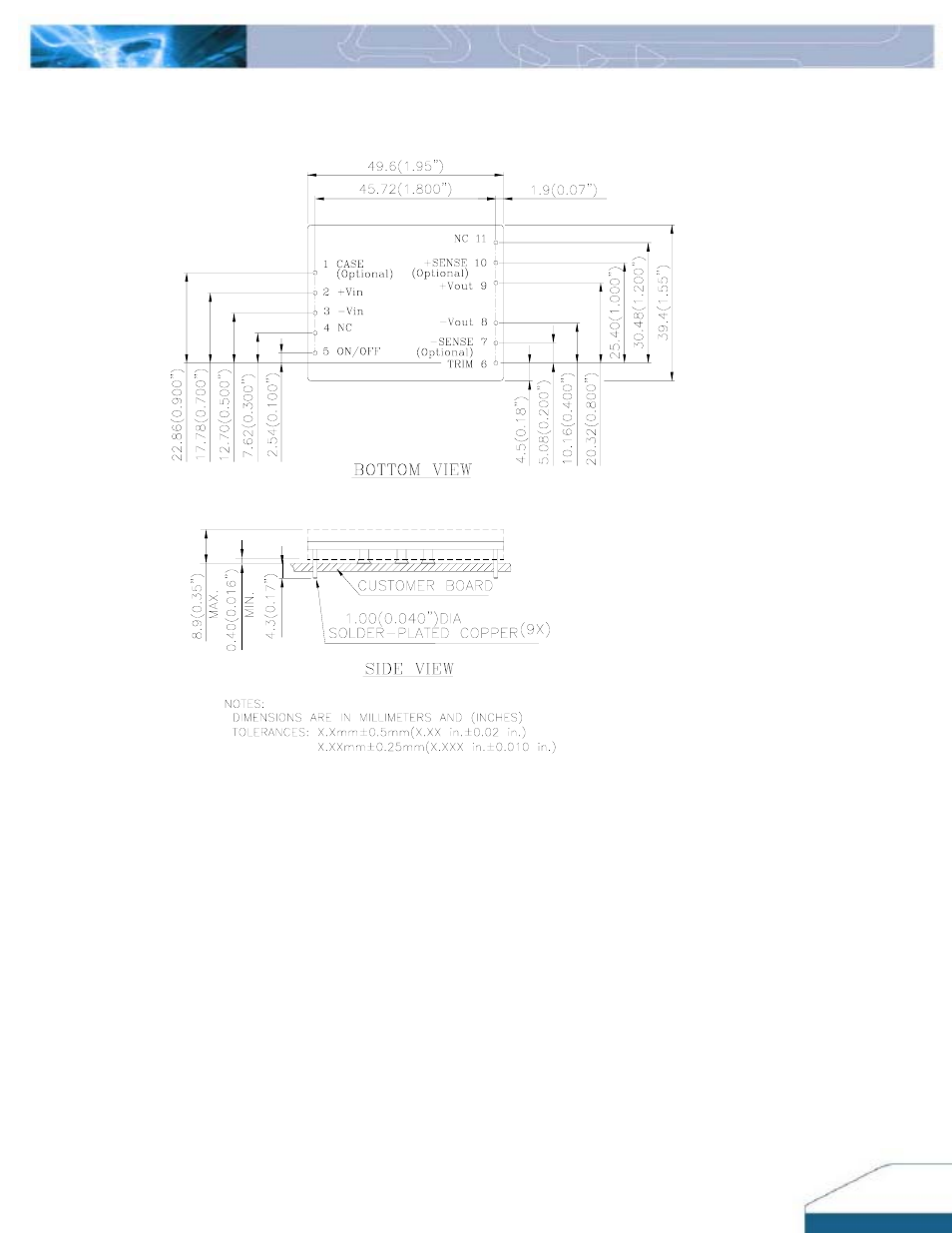

MECHANICAL DRAWING
OPEN FRAME VERSION
PIN
NO.
NAME
FUNCTION
1 CASE
(OPTION)
CASE
2 +VIN
POSITIVE
INPUT
VOLTAGE
3 –VIN
NEGATIVE
INPUT
VOLTAGE
4 NC
NOT
CONNECTED
5
ON/OFF
REMOTE
ON/OFF
6
TRIM OUTPUT
VOLTAGE
TRIM
7
–SENSE (OPTION) NEGATIVE OUTPUT VOLTAGE SENSE
8
–VOUT
NEGATIVE
OUTPUT
VOLTAGE
9
+VOUT
POSITVE
OUTPUT
VOLTAGE
10
+SENSE (OPTION) POSITVE OUTPUT VOLTAGE SENSE
11 NC
NOT
CONNECTED
ALL PINS ARE COPPER WITH TIN PLATING
DS_L36SA3R315_02142007
12
