FEATURES

High Efficiency: 88% @ 3.3V/15A

Size: 49.6mm x 39.4mm x 8.9mm

(1.95”x1.55”x0.35”)

Industry standard pin out

Fixed frequency operation

Input UVLO, OTP, Output OCP, OVP, (auto

recovery)

Monotonic startup into normal and

pre-biased loads

2250V isolation and basic insulation

No minimum load required

4:1 Input voltage range

ISO 9001, TL 9000, ISO 14001, QS 9000,

OHSAS 18001 certified manufacturing

facility

UL/cUL 60950 (US & Canada) Recognized,

and TUV (EN60950) Certified

CE mark meets 73/23/EEC and 93/68/EEC

directives.



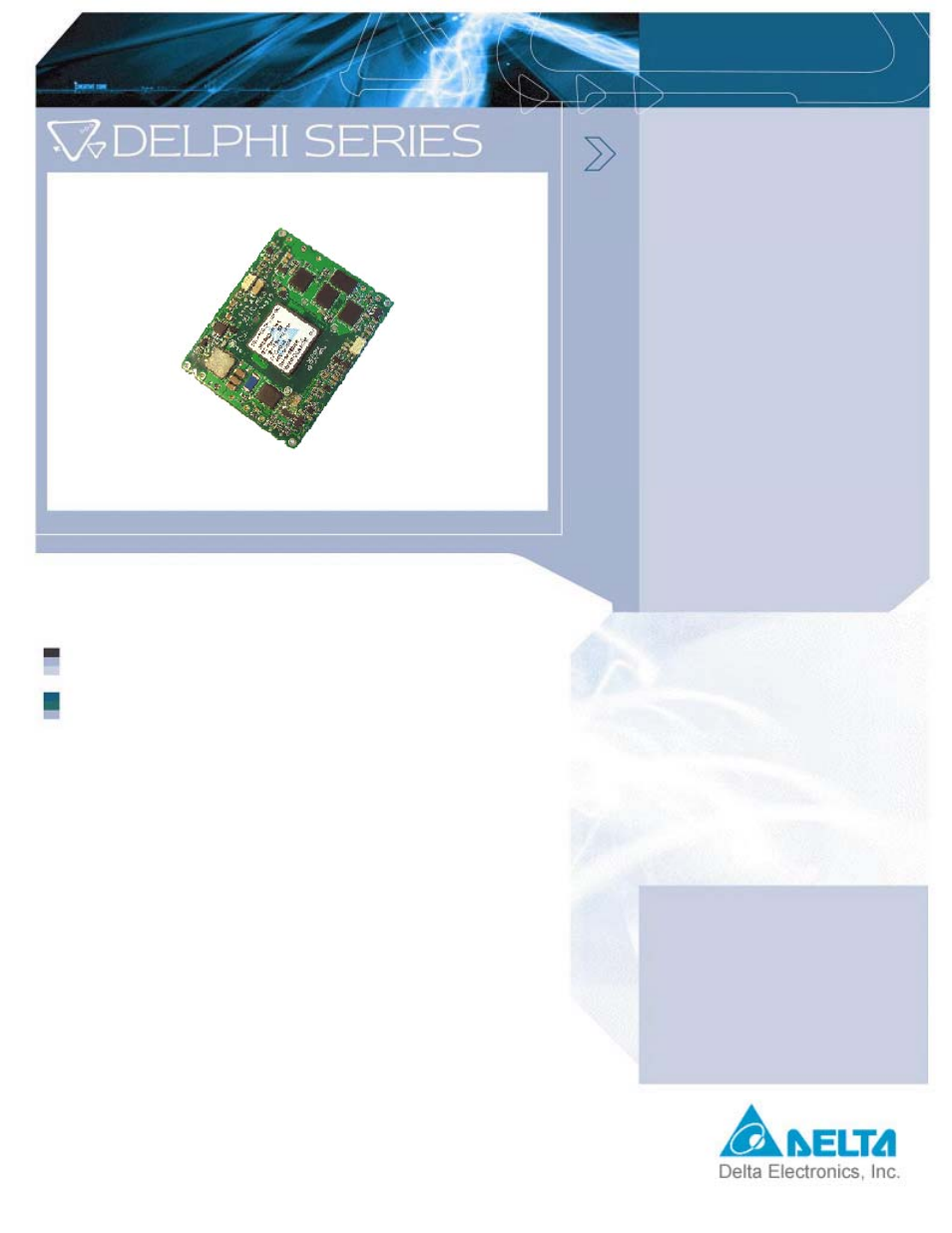

Delphi Series L36SA, 2” x 1.6”, 50W Family
DC/DC Power Module: 18~75V in, 3.3V/15A out

The Delphi Series L36SA, 2” x 1.6”, 18~75V input, single output,
isolated DC/DC converter is the latest offering from a world leader in
power systems technology and manufacturing - Delta Electronics,
Inc. This L36SA series provides up to 50 watts of power or 15A of
output current (3.3V) in an industry standard 2” x 1.6” form factor
and pinout. The Delphi L36SA series operates from a wide 18~75V
(4:1) input voltages. With creative design technology and
optimization of component placement, these converters possess
outstanding electrical and thermal performances, as well as
extremely high reliability under highly stressful operating conditions.

All models are fully protected from abnormal input/output voltage,
current, and temperature conditions. The Delphi Series converters
meet all safety requirements with basic insulation. An optional heat
spreader is available for extended operation.

OPTIONS

Positive On/Off logic

Sense

Heat spreader

APPLICATIONS

Telecom/Datacom

Wireless Networks

Optical Network Equipment

Server and Data Storage

Industrial/Testing Equipment

DATASHEET

DS_L36SA3R315_02142007
