D-Link DSL 2740B User Manual
Page 68
58
1. Click Chnage Policy button to change bridge filter policy between Forwarded and Blocked.
2. Click the Add A Rule button to enter your bridge filter configuration window.
3. Select Protocol Type from the drop-down list, or leave it blank for all protocols.
4. Enter the Destination/Source MAC address of the specific devices.
5. Select Frame Direction from the drop-down list. LANÙWAN: Both directions. WAN=>LAN: From WAN
to LAN only. LAN=>WAN: From LAN to WAN only.
6. Select the WAN interfaces (Bridge only).
7. Click Save Settings button to apply filter rule.

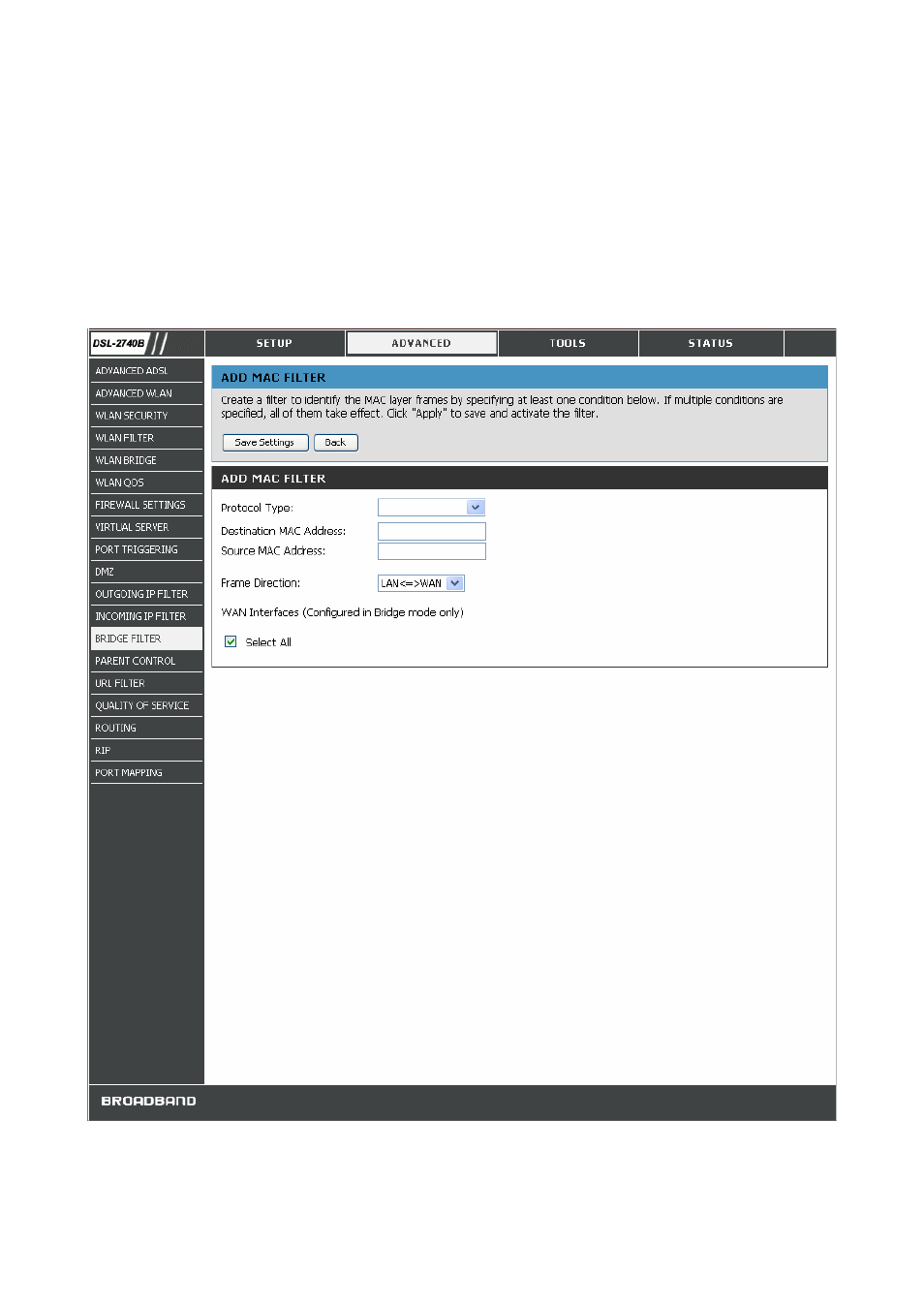

BRIDGE FILTER Window
