Bridge filter – D-Link DSL 2740B User Manual
Page 67
57

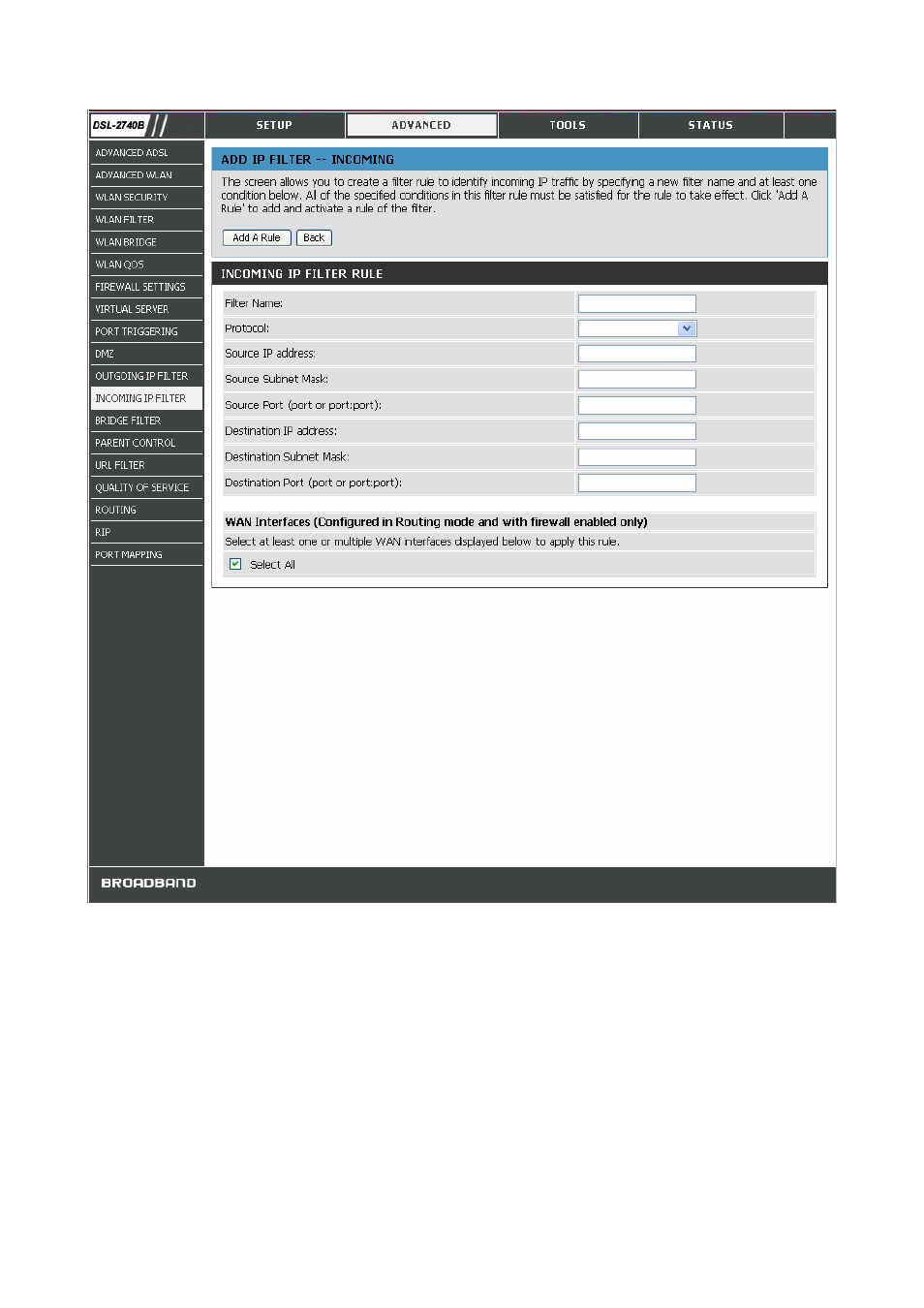

INCOMING IP FILTER Window
BRIDGE FILTER
Bridge filters are used to block or allow various types of packets through the WAN interface. This may be done for
security or to improve network efficiency. The rules are configured for individual devices based on MAC address. Filter
rules can be set up for source, destination or both. Bridge Filter is only effective on ATM PVCs configured in Bridge
mode. The Global Policy FORWARDED means that all MAC layer frames will be FORWARDED except those
matching with any of the specified rules in the following table. BLOCKED means that all MAC layer frames will be
BLOCKED except those matching with any of the specified rules in the following table.
