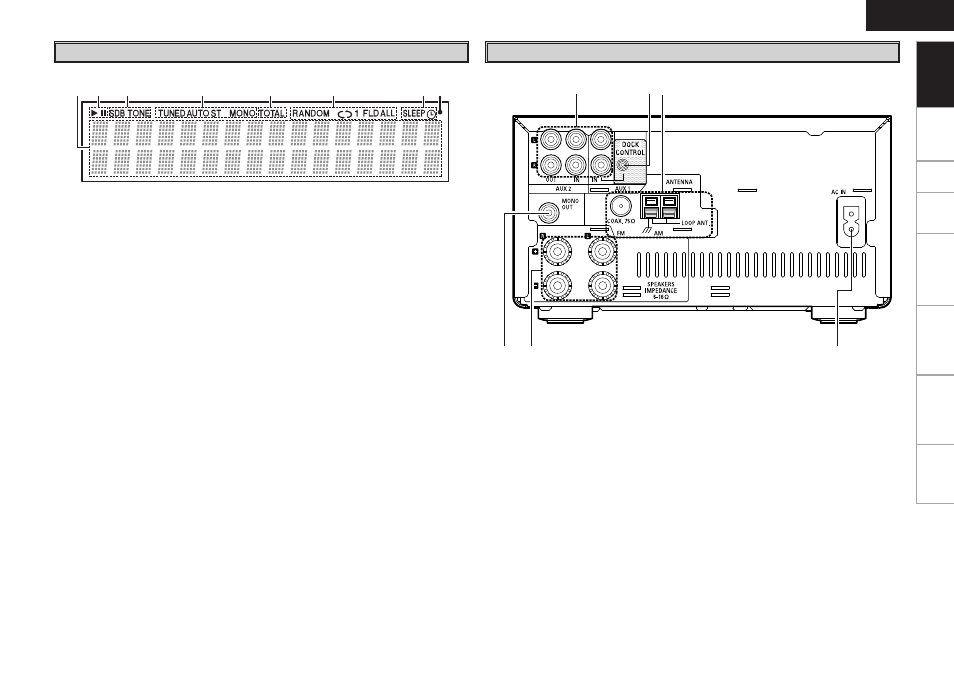

Rear Panel
q
Monaural audio connector
(MONO OUT) ···············································(9)
w
Speakers terminals ······································(9)
e
AC inlet (AC IN) ·········································· (11)
r
FM/AM antenna terminals ························ (10)
t
DOCK CONTROL jack ································ (10)
y
AUX1/AUX2
Analog audio connectors ·························· (10)
q w
e
r
t
y
u i
q
Information display
Various information is displayed here, depending
on the operation mode.
w
1
: (the play indicator) lights when a disc is
playing.
3
: (the pause indicator) lights when a disc is
pausing.
e
SDB, TONE indicator ………………………(13)
r
Reception mode indicator …………………(17)
t
TOTAL indicator
Lights when the total number of tracks and total
time of the CD are displayed.
y
Play mode indicator ·································· (14)
u
Timer indicator ·········································· (23)
i
F
: Flashes when remote control signals are
received.
