Cables & Connections

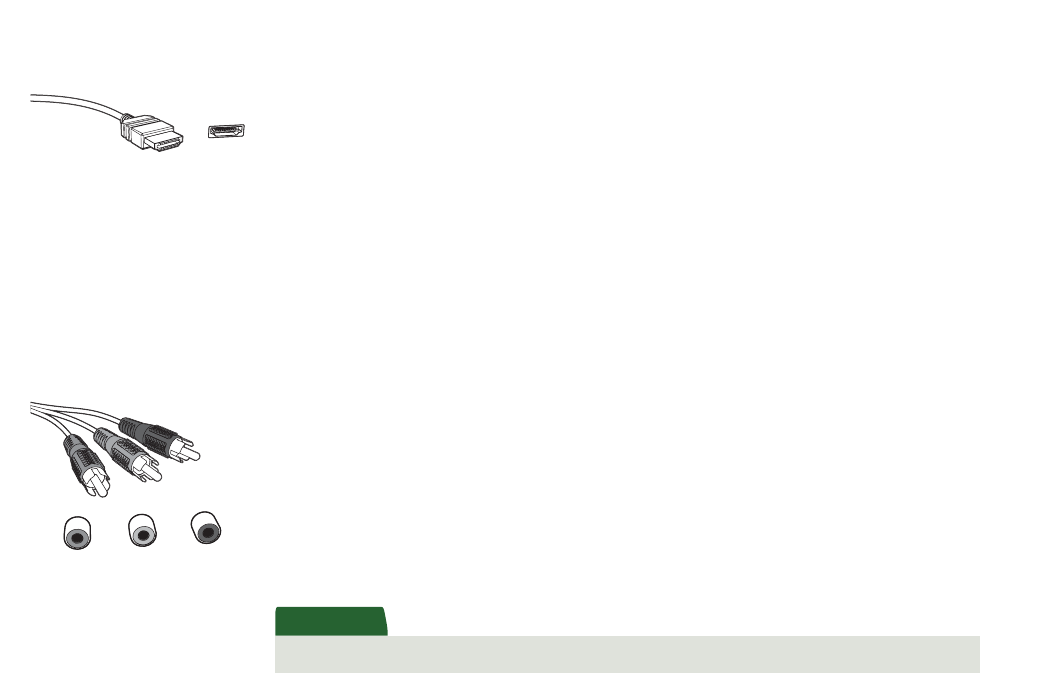

HDMI Jack and Cable
Th e DIRECTV HD Receiver incorporates HDMI™ [or High-Defi nition Multimedia Interface]
technology. HDMI off ers a high-quality connection that combines the video and audio signal into a
single cable.
Th e HDMI jack uses HDCP content protection to allow you to view HD programming that has been
encoded using the HDCP protection system. For the best access to HD programming at the highest
available resolution, connect this to an HDTV that supports HDCP technology.
DVI (Digital Visual Interface) is an older digital connection standard that has been replaced by HDMI
and is compatible with HDMI. DVI carries video only. You can also use an HDMI to DVI converter
(not included), which also carries video only, so must be used with audio cables to receive the audio
signal.
Component Video Output ( YPbPr)
Th e component connector provides high-quality video for your HDTV system. Component video is also
referred to as “ YPbPr.” It uses three separate cables—with connectors colored green, red and blue—one
for each component of the HD video signal.
Pr Pb
Y
Note: You may need to
purchase additional cables
depending on your setup.
HDMI and optical cables not
included.
HDMI and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
