The unit operates, but wit-
hout condensation:
■ Check the room temperature
The operating range of the unit
is between 6°C and 32°C
■ Check the humidity
min. 40% relative humidity is
necessary
■ Check the air inlet grille and air
filter for fouling
Clean or replace if necessary!
■ Have the exchanger fins
checked for fouling
This work makes it necessary
to open the unit and must be
carried out only by an autho-
rised specialist company!
ATTENTION
All work on the refrigeration
system and electrical equip-
ment must be referred to an
authorised specialist company!

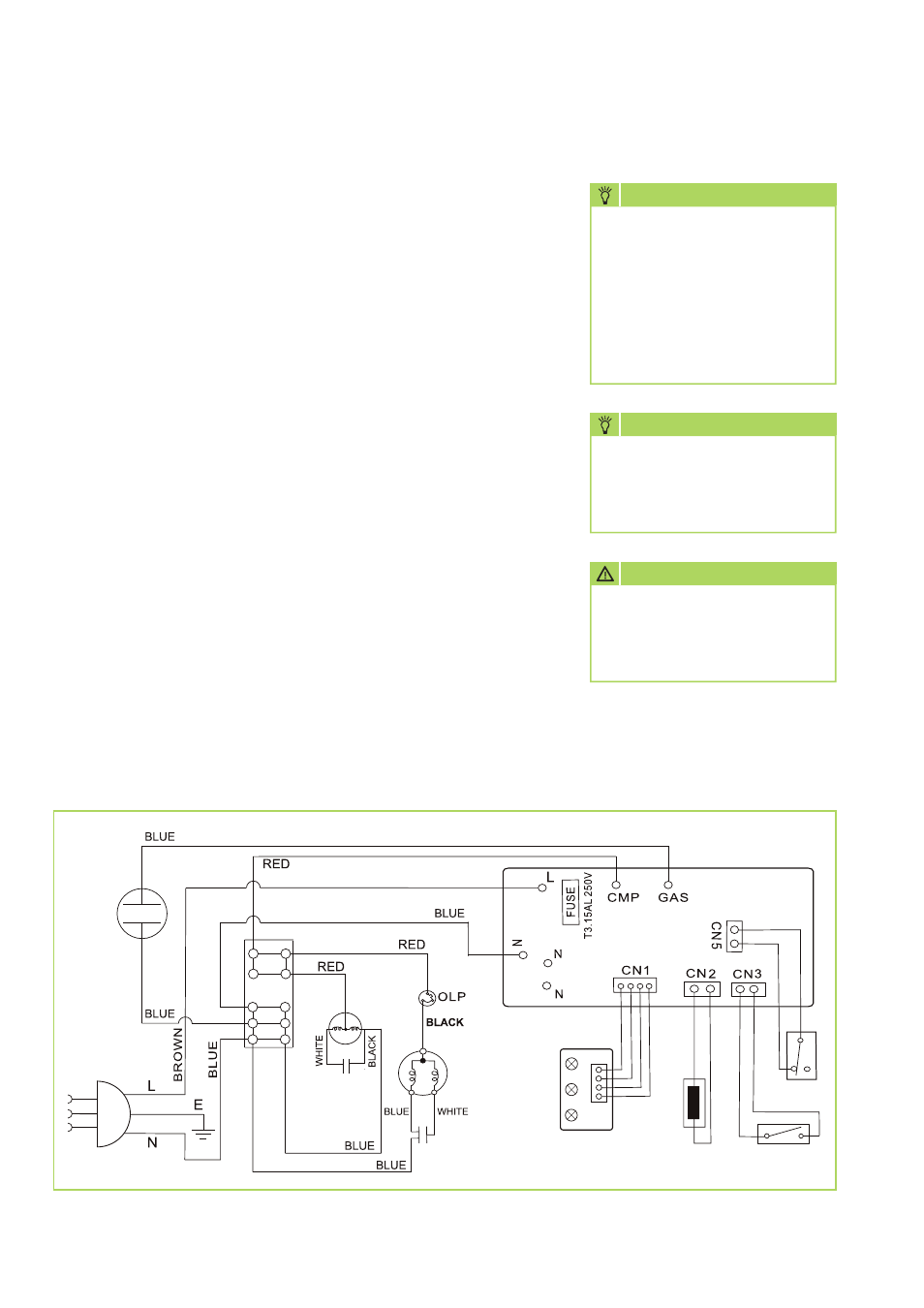

Electrical wiring diagram
NOTE
If the unit does not function
perfectly despite the checks,
an authorised specialist must
be contacted.
Information on refrigerant
The units are operated with
environmentally-friendly
and ozone neutral refrigerant
R410a.
According to statutory or local
regulations, the refrigerant/oil
mixture contained in the unit
must be disposed of properly.
The unit is loud or condensa-
tion discharges:
■ Check that the unit is standing
on a level and firm surface.
■ Check that the unit is standing
upright and stable.
■ Have the collection tray or
connection checked for dirt
deposits.
This work makes it necessary
to open the unit and must be
carried out only by an autho-
rised specialist company!
s s s
GREEN/
YELLOW
Magnet-
ventil
230V/50Hz
Hygrostat
Kompressor
Kondensator
Kontrollleuchte
“Entfeuchten”
Kontrollleuchte
“Behälter Voll”
Kontrollleuchte
“Abtaubetrieb”
Mikro-
schalter
Ventilator-
motor
Kondensator
Frostschutz-
sensor
Solenoid
valve
Capacitor
Capacitor
Fan motor
Capacitor
Indicator light
„dehumification“
Indicator light
„cointaner full“
Indicator light
„defrosting mode“
Probe anti-freeze
protection
Micro switch
