REMKO VRS
the three functions of the
combination controller:
1. Fan controller (TR)
Controls the fan on and off
function. The switching point
can be set via the „TR control
lever“.
Set value about 40°C
2. Temperature monitor for the
burner (TW)
The temperature monitor limits
the air outlet temperature. The
switching point can be set via the
„TW control lever“.
Set value about 80 – 85°C
Safety devices
3. Safety temperature limiter (STB)
The STB controls the tempera-
ture monitor.
Switching point permanently
set to 100°C.
A restarting lockout prevents
the burner from being restarted.
The reset button (RESET) must
be actuated manually from
outside with the housing cover
closed.
triple function combination
controller
The triple function combination
controller has a sensor monitor
and is cold resistant to -20°C.
The heater switches off at a tem-
perature below -20°C and switches
on again when the temperature
rises.
In the event of damage to the sen-
sor or capillary tube and on reach-
ing a temperature of about 220°C,
the filling medium is drained and
the combination controller switch-
es off towards the safety side. The
combination controller is no longer
functional and must be replaced.
For replacement of the triple func-
tion combination controller, the
following information must also
be observed:
■ The capillary tubes must not
be damaged or bent during
installation.
■ Any bending must take place
only on the capillary tube and
not on the sensor.
■ To ensure that the heater func-
tions reliably, the sensors must
always lie freely in the hot air
stream.
■ The sensors must always be
free of dust and dirt.
■ Capillary tubes and sensors
must not be damaged in any
way.
■ The sensors must not have
contact with the combustion
chamber or other metal parts.

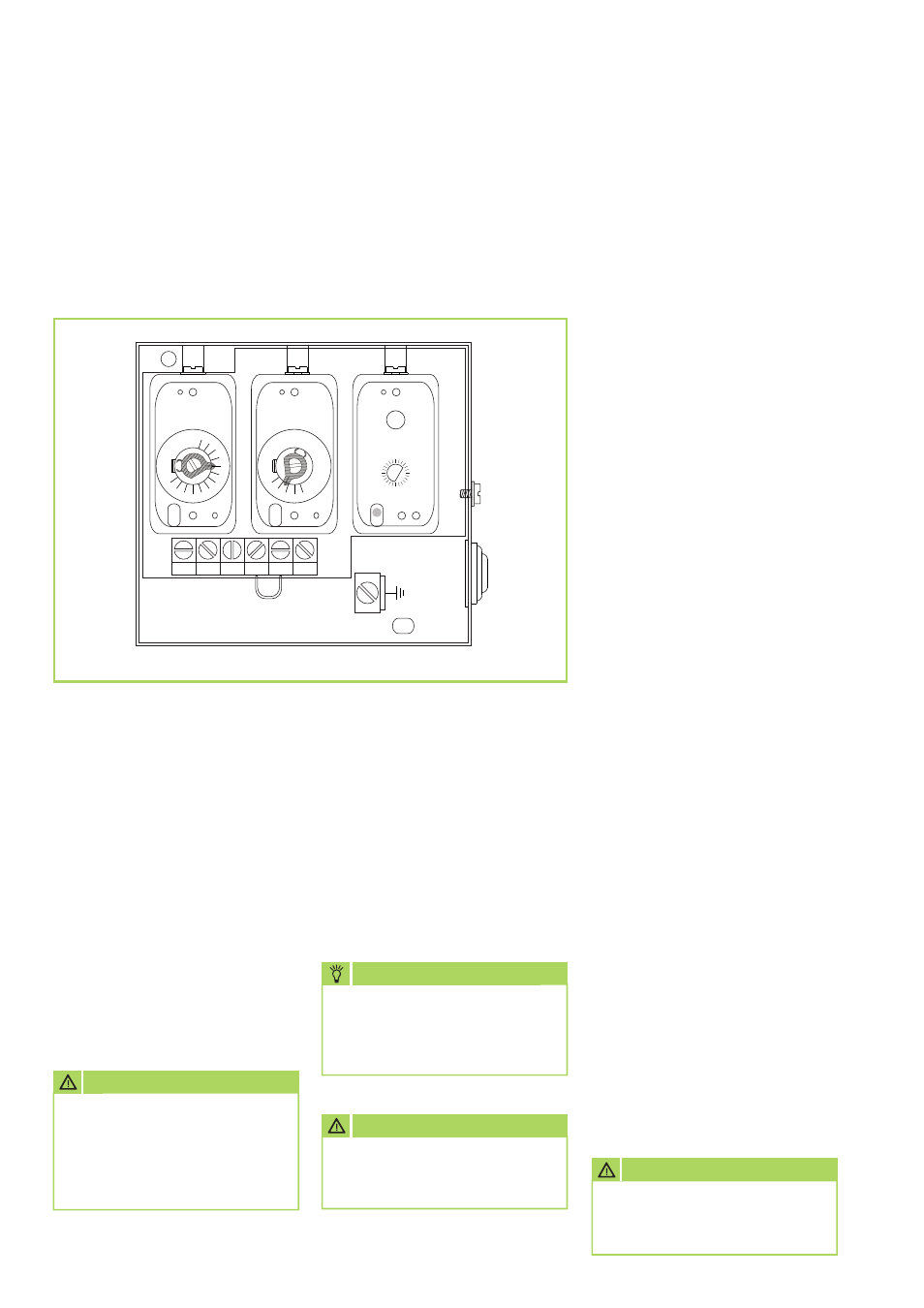

triple function combination controller according to DIN 3440
Oil or gas-fired hot air heaters must be fitted with intrinsically safe
control devices complying with DIN 3440.
REMKO triple function combination controller
STB
1 2 3 4 5 6
20
80
80
90
70 70 60
50
40
30 °C °C
TR TW
RK-WTHC-2280
# 1102572
NOtE
When replacing the triple
function combination control-
ler, only a REMKO original
replacement must be used!
AttENtION
Installation and assembly
must be carried out carefully
and professionally.
Controller shown without housing cover
AttENtION
To prevent the operating tem-
perature being exceeded again,
the operating conditions of the
heater must be checked prior
to resetting/releasing the STB.
AttENtION
safety devices must not be
overridden or blocked during
heater operation.
