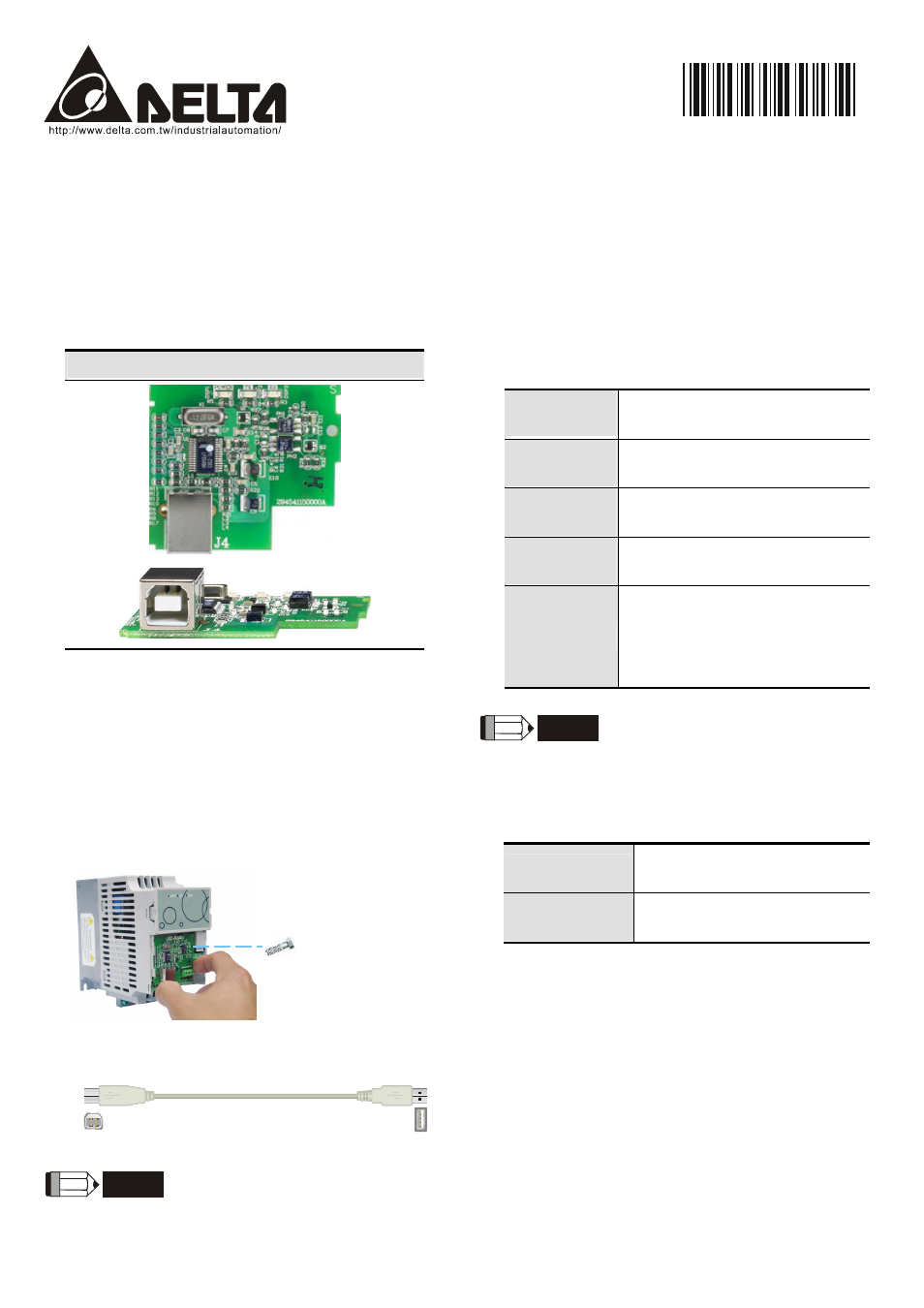

Cme-usb01, Usb interface for vfd-e series instruction sheet, Layout

background image

2007-07-09

5011659301-SBT1

CME-USB01

USB Interface for VFD-E Series Instruction Sheet

Please thoroughly read this instruction sheet before installing option cards and putting them into

use.

The content of this instruction sheet may be revised without prior notice. Please consult our

distributors or download the most updated version at http://www.delta.com.tw/industrialautomation/.

X

Layout

USB Card (CME-USB01)


Y

Installation

Make sure that the AC Motor Drive is powered
off before operation. DO NOT insert or remove
the card when the AC Motor Drive is powered
on.

Please mount the extension card as shown and
fix it with the screw packed with the card.

Screw torque:
Maximum 2kgf-cm

USB Cable

USB Type B to CME-USB01

USB Type A to PC

NOTE

Refer to Chapter 5: Parameters 9 (Group 9) in
the user manual for further details.

Z

Specification

Environmental

Operating
Temperature

-10

o

C to 50

o

C (non-condensing

and not frozen)

Storage
Temperature

-20

o

C to + 60

o

C

Ambient
Humidity

Less than 90%RH
(non-condensing)

Installation
Altitude

Below 1000m

Vibration

Less than 20Hz:
Maximum 9.81 m/s

2

(1G);

20 ~ 50Hz:
Maximum 5.88 m/s

2

(0.6G)

NOTE

Always use this product in a clean indoor
location free from dust, corrosive gas and liquid.

Inputs/Outputs

Baud Rate

Supports 4800, 9600, 19200,
38400, 57600 bps.

USB

Specification

USB v1.1


[

Notes

Please use shielded wires to avoid interferences
and connect the shield to ground.

To avoid interference, route the extension card
wires separately and as far away (at least 15cm)
as possible from other control wires, motor wires
and power wires, etc. Where these wires must
cross each other, please make sure they are at
a 90

o

angle.

Always use and operate this product within the
limit of its specifications.
