PSE Archery Bow 2012 - Manual (Page 14)

14

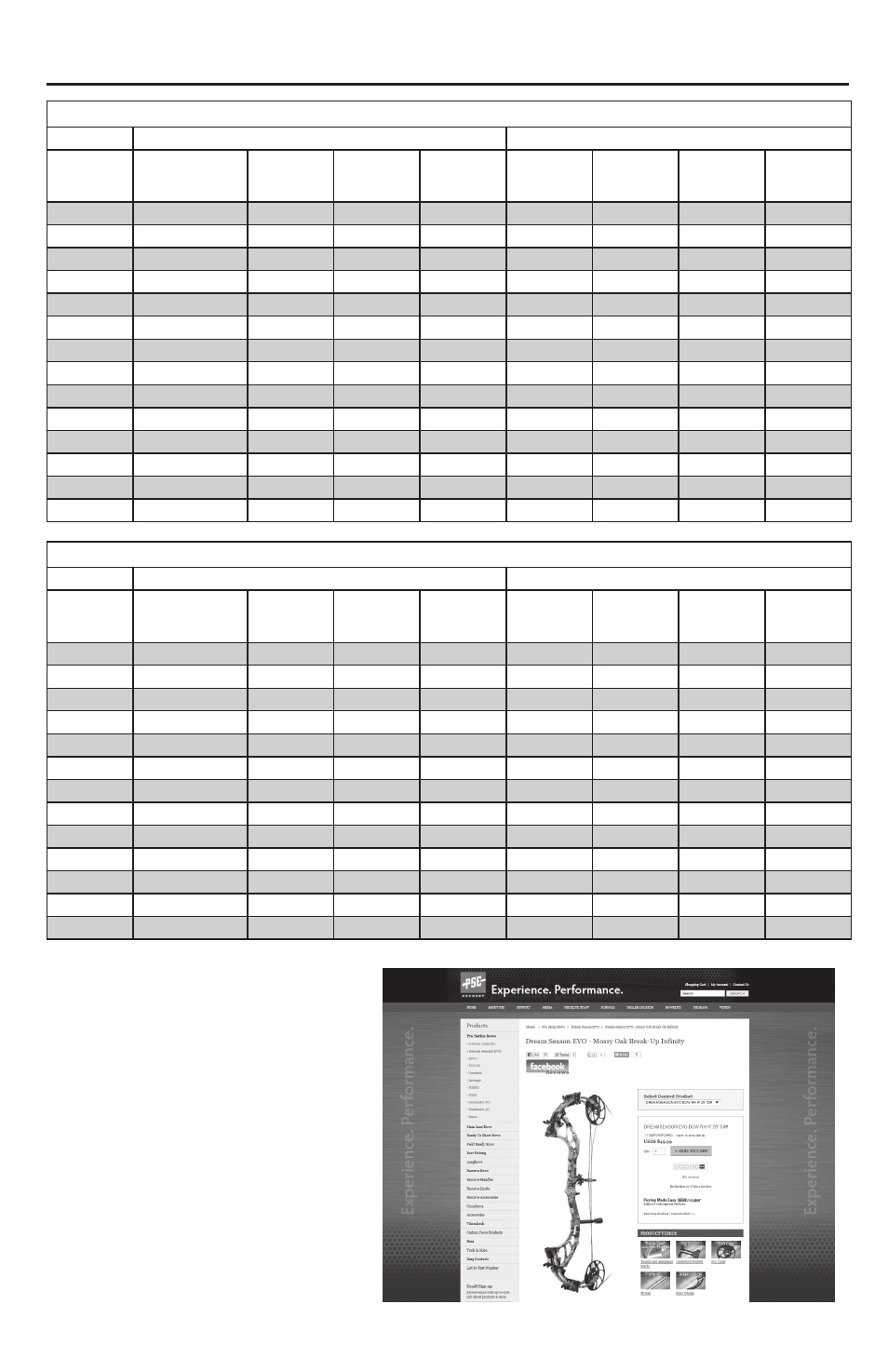

PSE ChaOS ™ fC Cam aDJUStmEntS:
(COntInUED)
pse CHAOs FC 60# MODeL
FiXed Peak weight settiNgs grow with You settiNgs
MODULE
SETTING
Draw
LENGTh
Draw
LENGTh
(4 turns off)
PEaK
Draw
wEIGhT
Draw
wEIGhT
(4 turns off)
Draw
LENGTh
Draw
LENGTh
(4 turns off)
PEaK
Draw
wEIGhT
Draw
wEIGhT
(4 turns off)
a-L 27 27 1/4 60 46 27 27 1/4 53 42
B-L 26 1/4 26 1/2 60 46 26 26 1/4 53 42
C-L 25 1/2 25 3/4 60 46 25 1/4 25 1/2 53 42
D-L 24 3/4 25 60 46 24 1/2 24 3/4 53 42
E-L 24 24 1/4 60 46 23 3/4 24 53 42
F-L 23 1/4 23 1/2 60 46 23 23 1/4 53 42
G-L 22 1/2 22 3/4 60 46 22 1/4 22 1/2 53 42
h-L 21 3/4 22 60 46 21 1/2 21 3/4 52 40
I-L 21 21 1/4 60 46 20 3/4 21 50 39
J-L 19 3/4 20 60 46 19 1/2 19 3/4 48 1/2 37 1/2
G-S 19 19 1/4 60 46 18 1/2 18 3/4 46 1/2 36
h-S 18 1/4 18 1/2 60 46 17 3/4 17 3/4 44 33 1/2
I-S 17 3/4 17 3/4 60 46 17 1/4 17 1/4 40 30
pse CHAOs FC 50# MODeL
FiXed Peak weight settiNgs grow with You settiNgs
MODULE
SETTING
Draw
LENGTh
Draw
LENGTh
(4 turns off)
PEaK
Draw
wEIGhT
Draw
wEIGhT
(4 turns off)
Draw
LENGTh
Draw
LENGTh
(4 turns off)
PEaK
Draw
wEIGhT
Draw
wEIGhT
(4 turns off)
a-L 27 27 1/4 50 40 27 27 1/4 46 36 1/2
B-L 26 1/4 26 1/2 50 40 26 26 1/4 46 36 1/2
C-L 25 1/2 25 3/4 50 40 25 1/4 25 1/2 46 36 1/2
D-L 24 3/4 25 50 40 24 1/2 24 3/4 46 36 1/2
E-L 24 24 1/4 50 40 23 3/4 24 46 36 1/2
F-L 23 1/4 23 1/2 50 40 23 23 1/4 46 36 1/2
G-L 22 1/2 22 3/4 50 40 22 1/4 22 1/2 46 36 1/2
h-L 21 3/4 22 50 40 21 1/2 21 3/4 45 1/2 35
I-L 21 21 1/4 50 40 20 3/4 21 44 1/2 33 1/2
J-L 19 3/4 20 50 40 19 1/2 19 3/4 42 1/2 32
G-S 19 19 1/4 50 40 18 1/2 18 3/4 40 1/2 30 1/2
h-S 18 1/4 18 1/2 50 40 17 3/4 17 3/4 39 29
I-S 17 3/4 17 3/4 50 40 17 1/4 17 1/4 36 27
J-S 17 17 50 40 16 16 31 1/2 24 1/2
pse-archery.cOM
The PSE website has numerous
resources ffpr the PSE owner
•
The latest PSE products
• Product feature videos
• Serial number search
• Online product registration
• Tune charts on PSE bows
from 1991 to present
• Plus much more!
