6
COMPOUND BOW
USER’S GUIDE
Note: Some PSE bow models come from the factory with the PSE Sting Stop™
Backstop installed. These instructions refer to reinstallation or adjustment if
needed after making adjustments to your PSE bow.
1. Thread the Sting Stop™ nut all the way up toward the bumper of
the Sting Stop™ rod.
2. Thread the Sting Stop™ rod into the threaded hole below the grip on the
riser. The bowstring will need to be displaced slightly to one side to thread
the rod into the bow.
3. Unscrew the Sting Stop™ until the rubber bumper approaches the bowstring.
Mark the string 1/4” above the rubber bumper in its highest position and
1/4” below the bumper in its lowest position. Remove the Sting Stop™ and
add serving to the marked area of the string. Reinstall the Sting Stop™.
4. Adjust the Sting Stop™ to the desired position and tighten the Sting Stop™
nut against the riser. The Sting Stop™ design allows for the bumper to
be positioned so the string strikes the center of the bumper. It is desired
to have some clearance (approximately 1/16”) between the bumper and
the bowstring at brace. It is preferred to have the Sting Stop™ rod in the
up position if possible, but may not be possible in order to achieve the
necessary clearance and contact point.

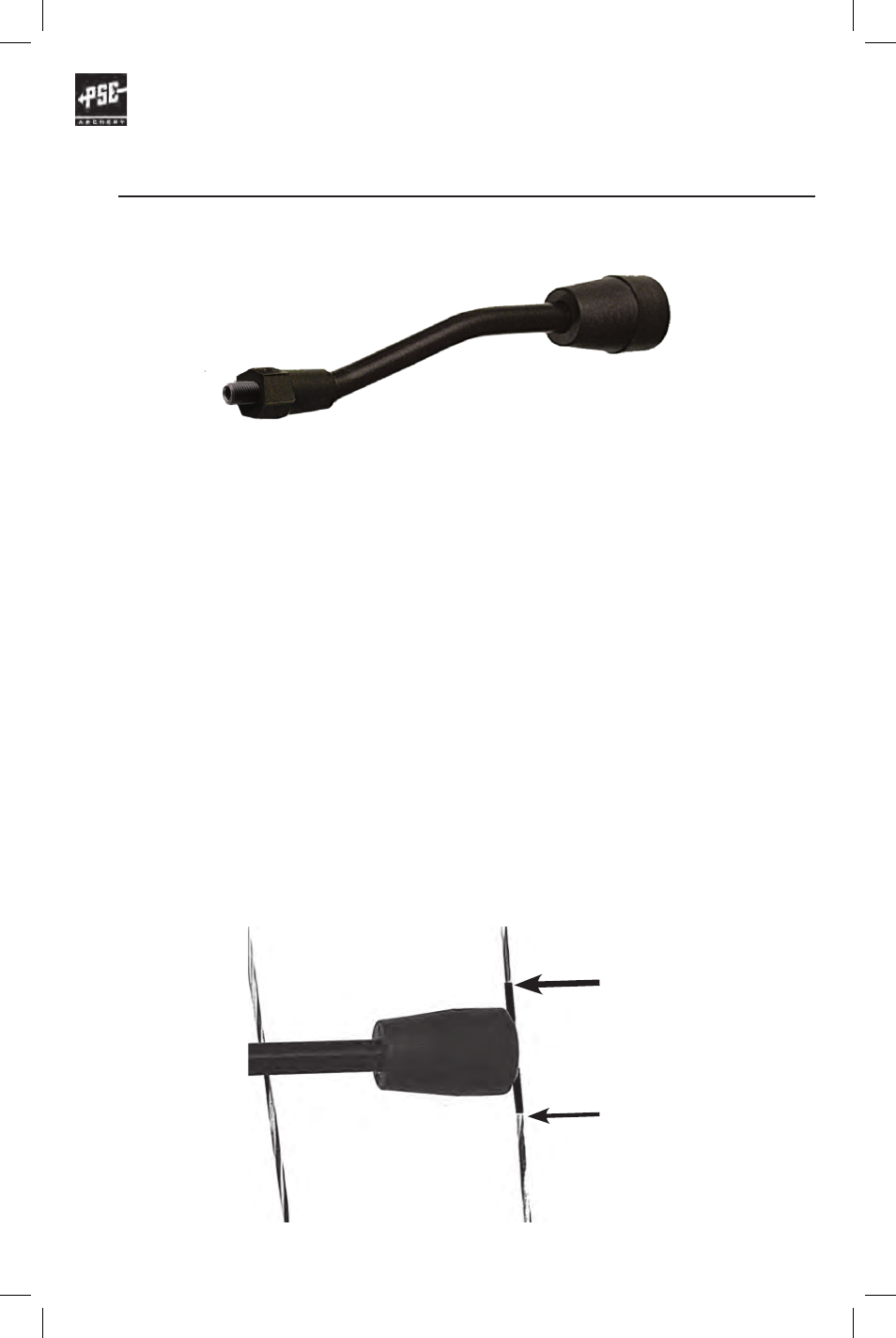

STING STOP
™
INSTRUCTIONS
Serve string
in this area.
