4
COMPOUND BOW
USER’S GUIDE

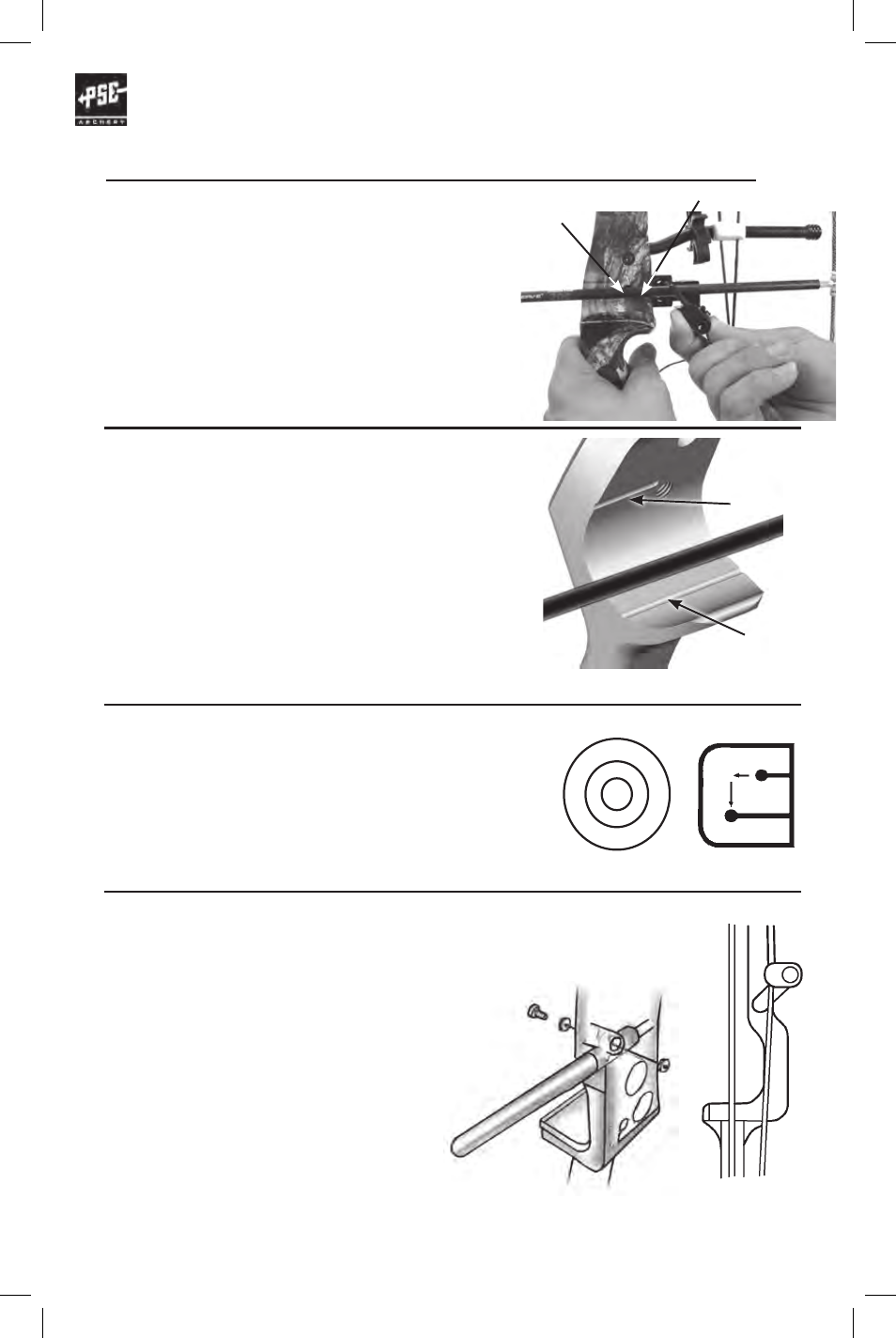

SETTING-UP YOUR BOW
NOCKING POINT PLACEMENT:
Finger shooters: Install the nocking point so that the
arrow passes the center of the arrowrest mounting
hole and runs slightly point-down relative to the tuning
mark on the window of the bow.
Release Aid shooters: Install the nocking point so that
the arrow passes the center of the arrowrest mounting
hole and runs parallel to the alignment mark on the
window of the bow.
ARROWREST ADJUSTMENT:
When shooting with a release aid, the in/out position
of the arrowrest should be adjusted so that the arrow runs
parallel with the tuning mark on the shelf when viewed
from above. When shooting with fingers the arrow should
point slightly outside the tuning mark on the shelf.
NOTE: Alignment marks are for reference only.
Adjustments will likely be necessary to nocking point and
in/out position during tuning
SIGHT ADJUSTMENT:
When adjusting the sight pin locations, always remember
to “follow the group”. That is, if the shot group is to the
left of the target, move the sight pins to the left. If the shot
group is low, move the sight pins down.
CABLE GUARD ADJUSTMENT
AND INSTALLATION:
Install the cable guard as shown in Figure
A. Adjust the cable guard so the cables just
clear the arrow vanes. On bows using an
offset cable guard rod, adjustments must
be done with the rod in the up position
(approximately 2 o’clock) as shown in
Figure B (10 o’clock for left handed bows).
Over-rotating an adjustable cable guard
creates excessive arrow clearance and may
cause the cable to track incorrectly on the
wheels and cause personal injury and/or
damage to the bow.
Figure A Figure B
Tuning
Mark
Arrowrest mounting hole
••
•
Alignment
Mark
Tuning
Mark
