PSE “FC” FLEXIBLE, “AD” ADAPTA CAM
AND “OP” OPTI CAM INFORMATION
INSTRUCTIONS:
The FC, AD and OP cam systems each consist of 2 cams with rotating inner-cams for adjusting
draw length. In addition, the cam design has two draw weight settings. In the Fixed Peak
Weight setting (see Figure 1) the peak draw weight stays the same regardless of the draw length
setting. In the “Grow With You” setting (see Figure 2) the peak draw weight gets lighter as the
draw length is adjusted shorter. The cable is easily pulled over the “Grow with You” boss peg to
make the adjustment from fixed peak weight to the “Grow with You” setting- or back.
No bow press is required for this adjustment.
DRAW LENGTH ADJUSTMENT - PSE “FC”- FLEXIBLE CAM
AND “AD” ADAPTA CAM:
The inner-cam has holes marked “A” through “J” for adjusting draw length (see Figure 3) as well
as a set of threaded holes marked “S” and “L”. The “L” holes are used for longer draw lengths
and the “S” holes are used for shorter draw lengths (see Figure 4). See the table for the setting
required to achieve different draw lengths and weight.
To make the necessary adjustment, remove the screw holding the inner-cam in place and
rotate the inner-cam so the letter setting desired lines up with the threaded “L” or “S” hole
in the cam. Replace and tighten the screw. IT IS IMPORTANT THAT BOTH TOP AND
BOTTOM CAMS BE ADJUSTED THE SAME. These adjustments can be made either with or
without a bow press.

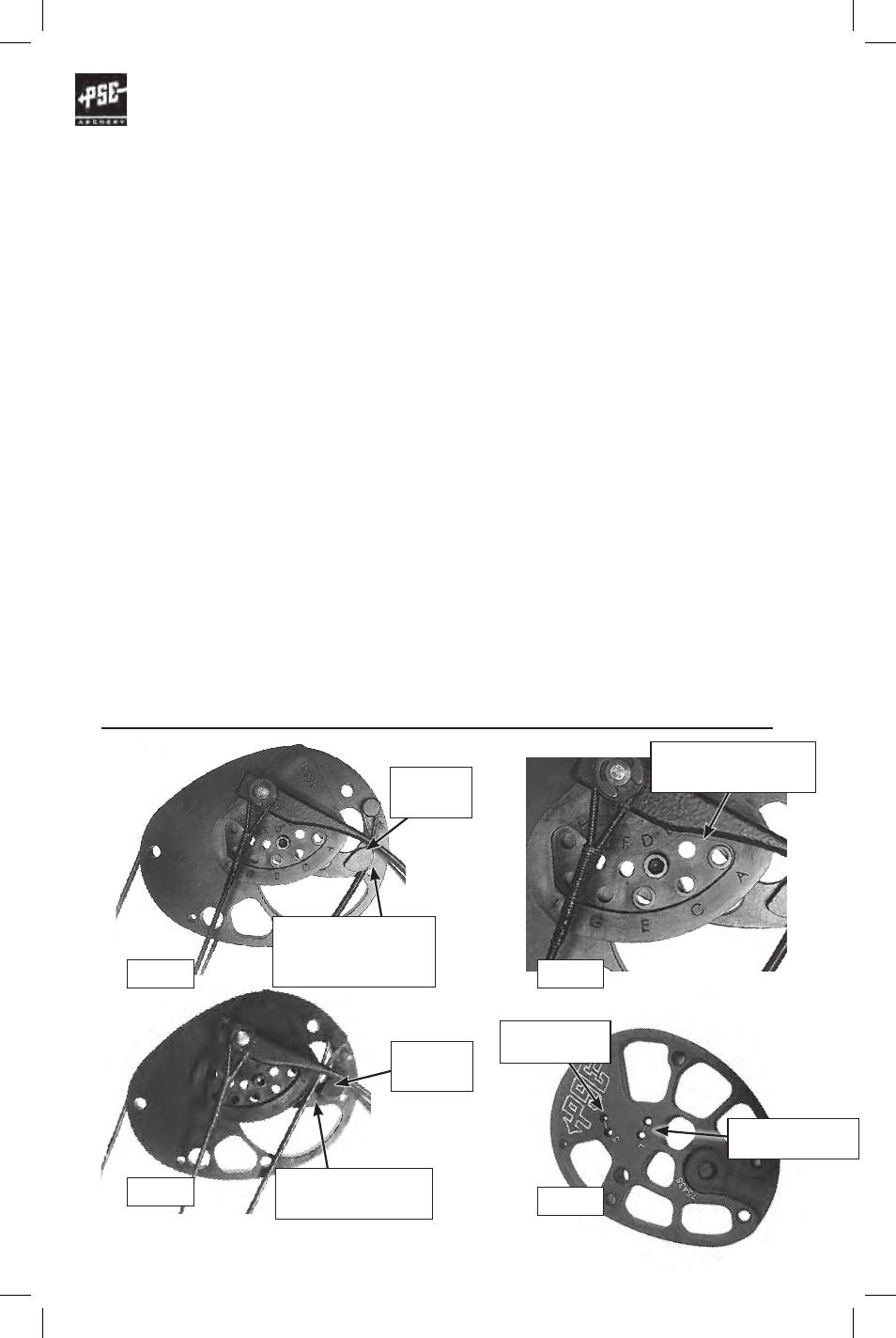

PSE “FC” AND “AD” ADAPTA CAM FLEXIBLE CAM ADJUSTMENTS:
Figure 1 Figure 3
Figure 4
Figure 2
The “S” set of
threaded holes.
Cable is routed behind
the boss for “Grow with
You” settings
The “L” set of
threaded holes.
Fixed Peak
weight
boss peg
Cable is pulled over
the boss and placed
in the groove for fixed
peak weight settings
These two rows of holes
are used to determine
draw length.
Fixed Peak
weight
boss peg
