PULL-TYPE BOW PRESS:

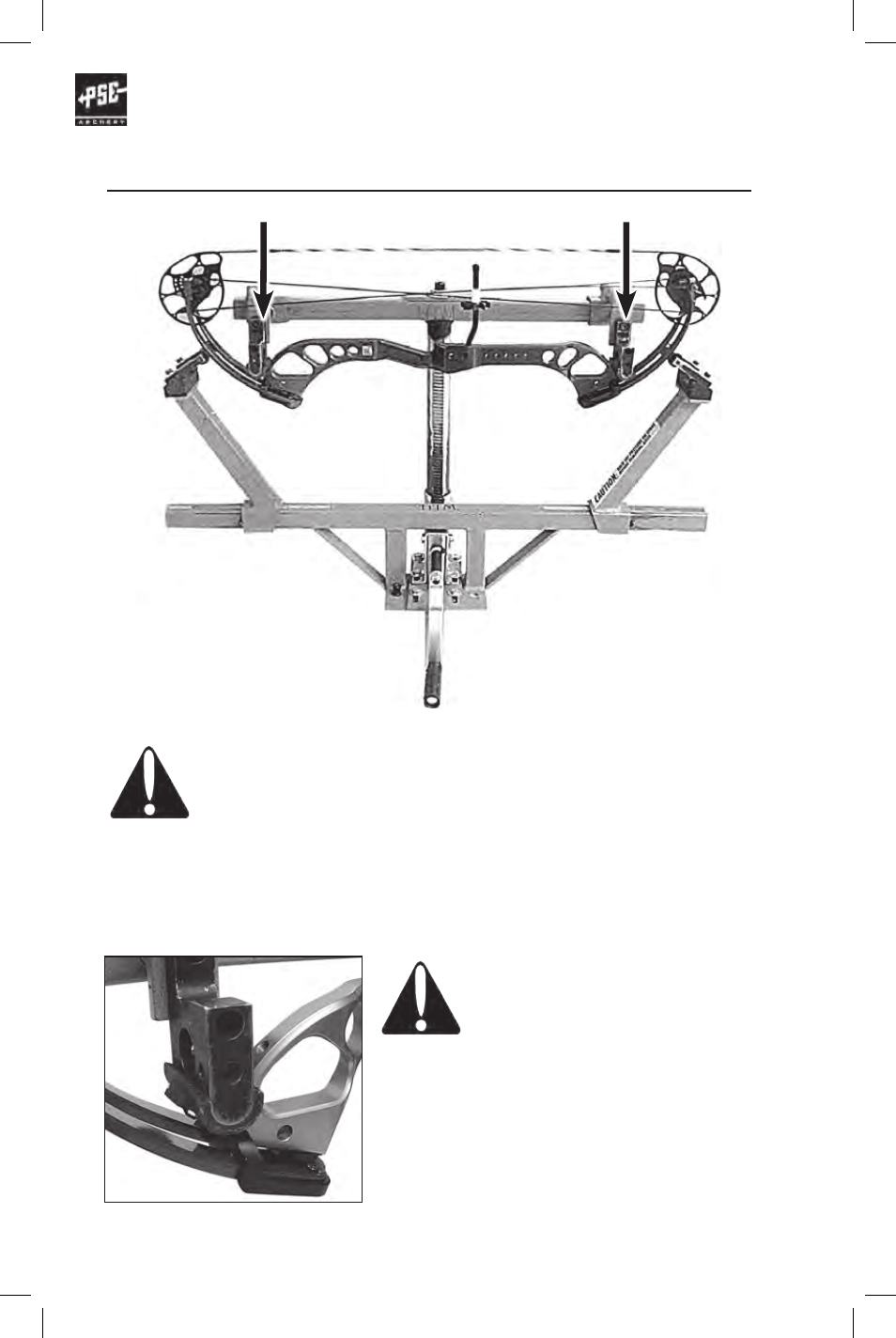

This type of press pulls the riser of the bow in a vertical direction between
rollers that compress the limbs.
When using this type press it is very important to position the rollers and
pressure points correctly! See illustration above.
Back the limb bolts out 4 turns from the bottom setting and position the pressure points
on the riser as close to the limbs as possible WITHOUT making contact with the limbs as
shown in the photo below.
The pressure points must not contact the limbs
AT ANY TIME during servicing.
