COMPOUND BOW
USER’S GUIDE
5
1. Remove the setscrews from the base using a 1/16” hex wrench.
2. Install the Backstop
™ 2 into the threaded hole below the
grip on the string-facing side of the bow.
3. Extend the Backstop ™ 2 until it makes contact with the string. Mark the string ¼”
above and ¼” below where it makes contact with the string. Remove the Backstop ™ 2
and add serving to that area of the string. Reinstall the Backstop ™ 2.
4. Securely tighten the base to the bow handle.
6. Extend rod from base. Install the setscrews to secure rod in this position.
Tighten setscrews. It is desired to have some clearance (approximately 1/16”) between
the bumper and the bowstring at brace.

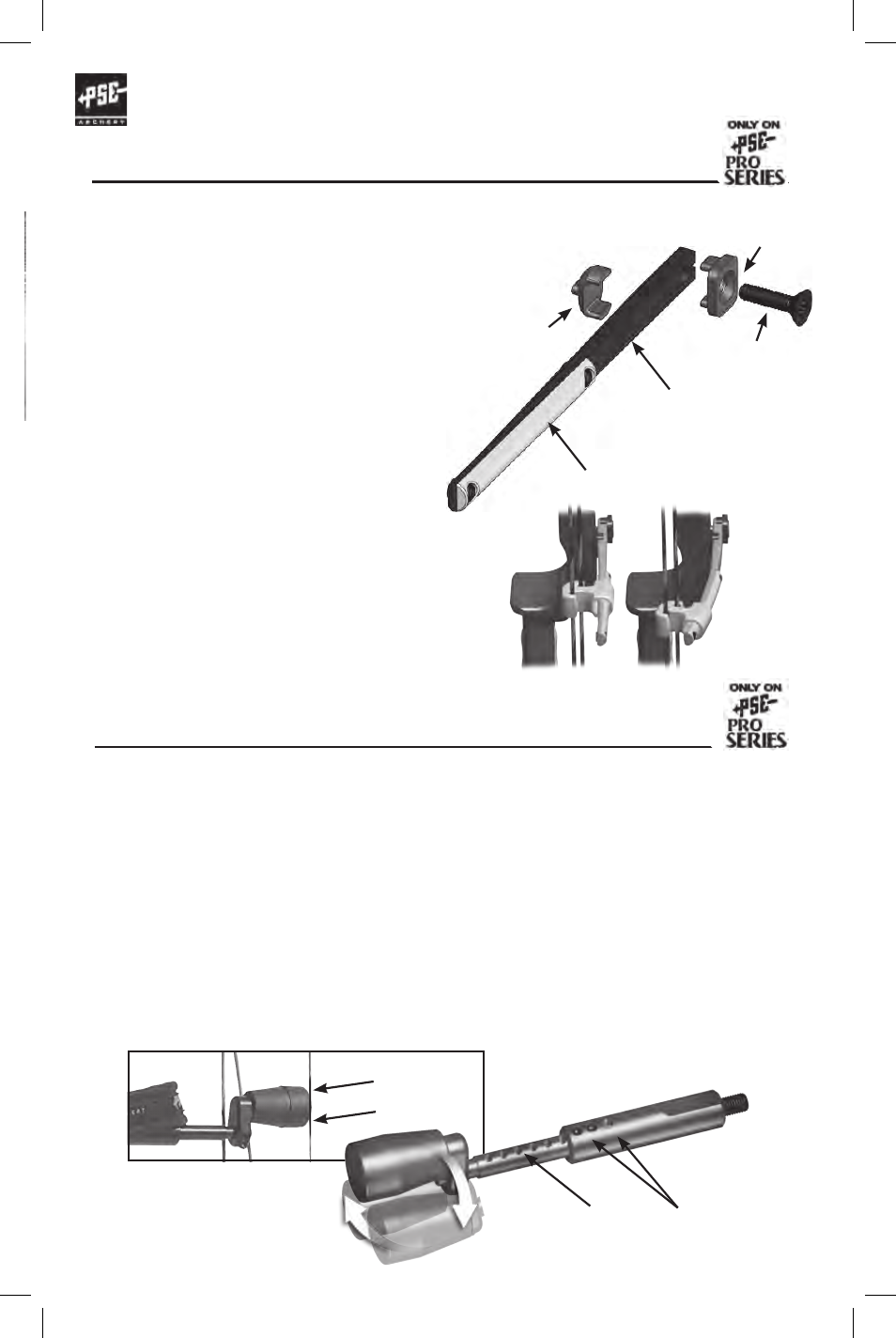

BACKSTOP
™
2 INSTRUCTIONS
Serve string
in this area.
Setscrews Alignment
holes
FLEXSLIDE
™
ADJUSTMENT & INSTALLATION
FlexSlide
Washer with
Alignment Tabs
Lateral
Adjustment
Screw
FlexSlide
Pivot with
Alignment
Tabs
FlexSlide
Limb
Low Friction
FlexSlide Rod
Note: Most PSE Pro Series bow models come from the factory with the Backstop ™ 2 installed.
These instructions refer to reinstallation or adjustment if needed after making adjustments
to your PSE bow.
The PSE FlexSlide ™ cable guard system is based on the same advanced
design and analysis used to create PSE Limbs. The flex-tuned design
and adjustable offset are engineered to create more consistent lateral
loads through the draw cycle and improve bow accuracy.
1. The standard factory setting adjusts the
FlexSlide ™ to its bottom position for maximum
arrow clearance.
2. To adjust the lateral position, turn the
adjustment screw counterclockwise to
reduce arrow clearance or clockwise to
increase arrow clearance.
3. After making adjustments to your
FlexSlide ™ , check both arrow clearance
and BackStop ™ clearance. When drawing
the bow, the buss cable should never
contact the arrow shaft or any part of
the Backstop ™ .
4. If any contact exists, tighten the
adjustment screw to create adequate
clearance. One full turn on the adjustment
screw will move the slide approximately 1/8”.
NOTE: Lateral adjustments to the FlexSlide ™
may affect arrow tuning.
